Fine Tuning

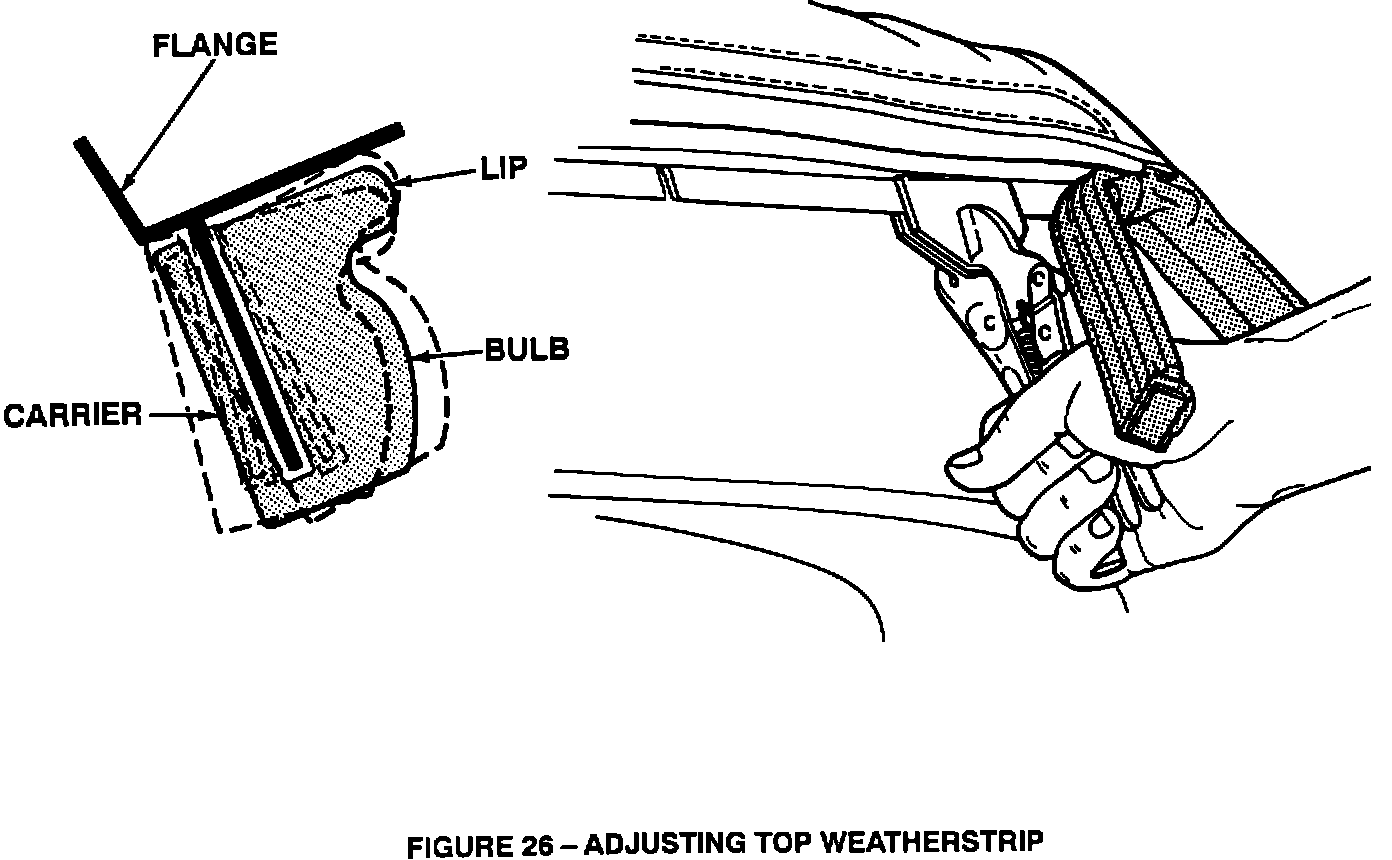

1. For gaps or misalignment between glass and weatherstrip - remove the weatherstrip and bend the convertible top weatherstrip flanges with flange pliers. Refer to Figure 26.
