Speedometer Gear, M/T: Service and Repair

SPEEDOMETER DRIVEN GEAR
1. Remove retaining screw from speedometer driven gear retainer assembly, using a 7 mm socket.

Assembly & Disassembly Of Speedometer Driven Gear:

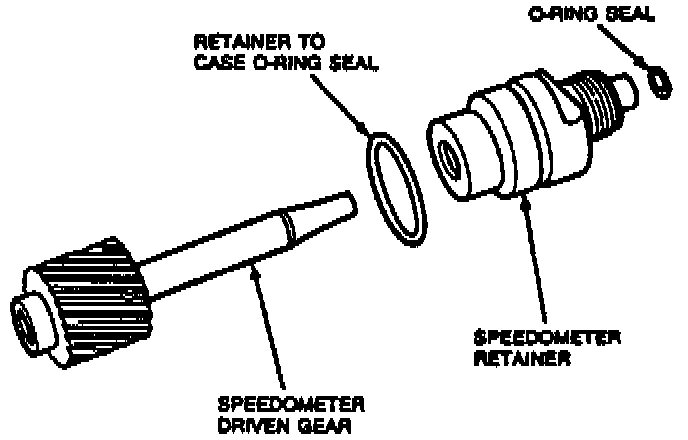

2. Using a screwdriver, carefully pry on speedometer retainer, then remove retainer and driven gear assembly. Refer to image for disassembly and assembly of gear.
3. Align relief area in retainer with attaching screw bore, then using a 13/16 inch deep well socket, tap assembly into bore.
4. Torque retaining screw to 12-24 inch lbs.
