Home >> Mercury >> 1990 >> Topaz FWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Turn Signal Switch >> Diagrams >> Electrical Diagrams

Electrical Diagrams

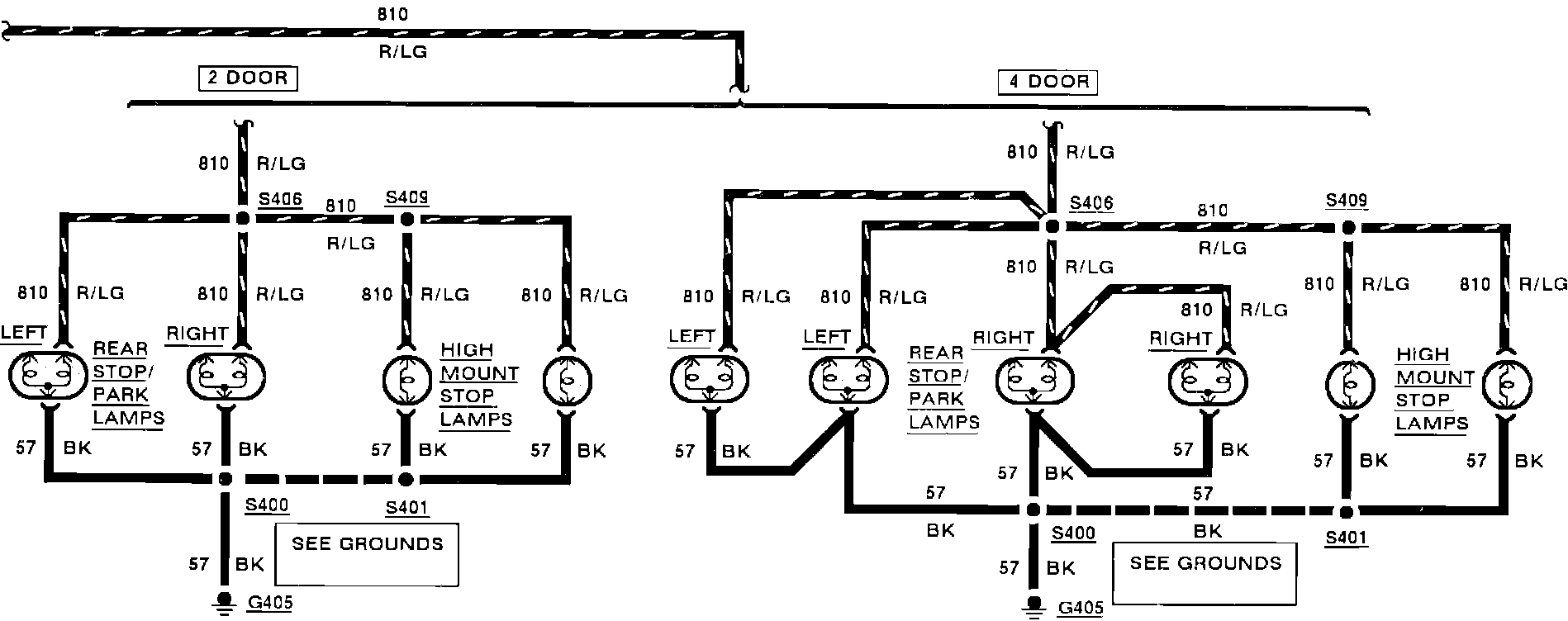

Hazard, Turn, & Stop Lamps:

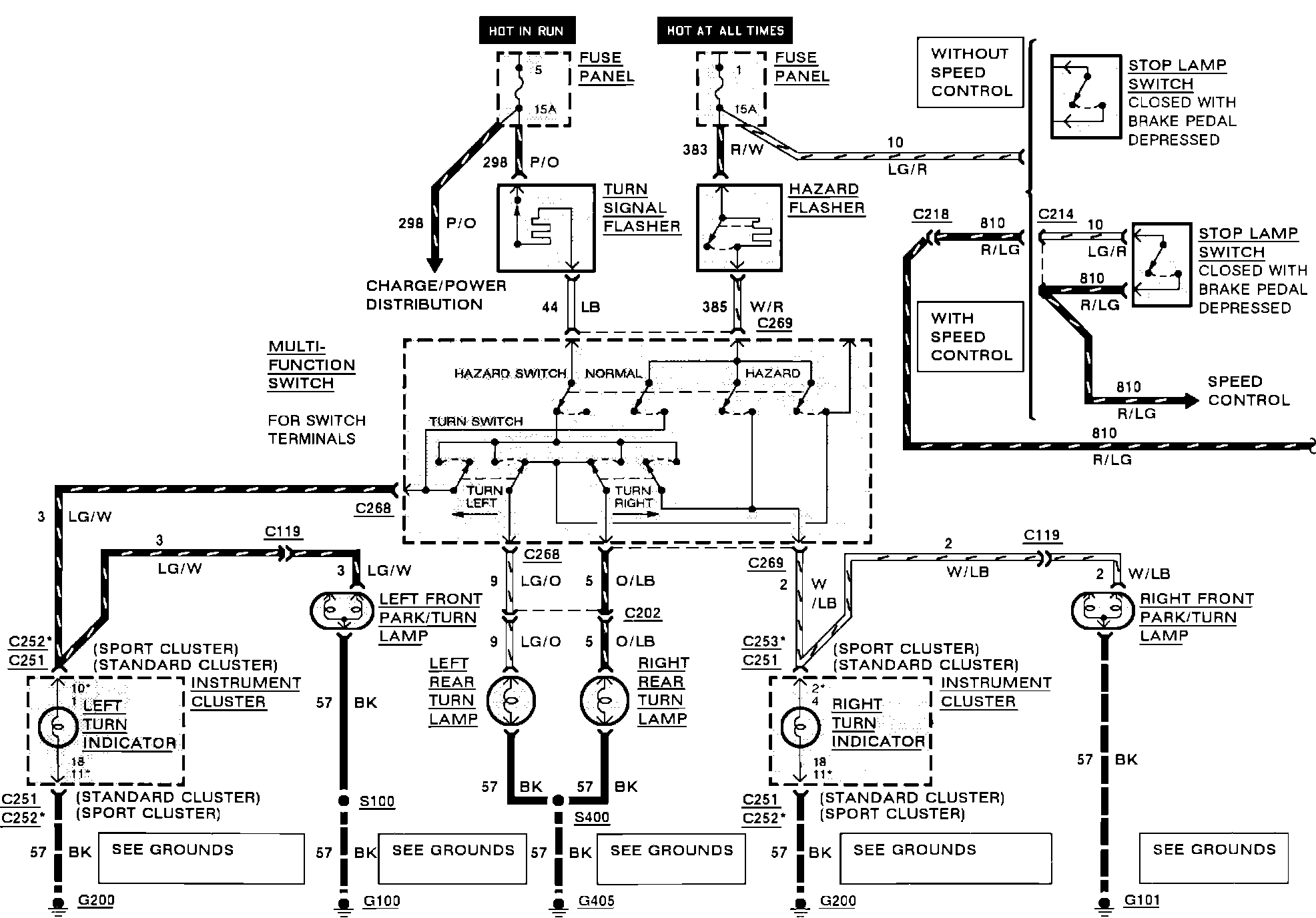

Hazard, Turn, & Stop Lamps:
