Home >> Mercury >> 1990 >> Topaz FWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Door Lock Switch >> Diagrams >> Electrical Diagrams >> Four Door Models

Four Door Models

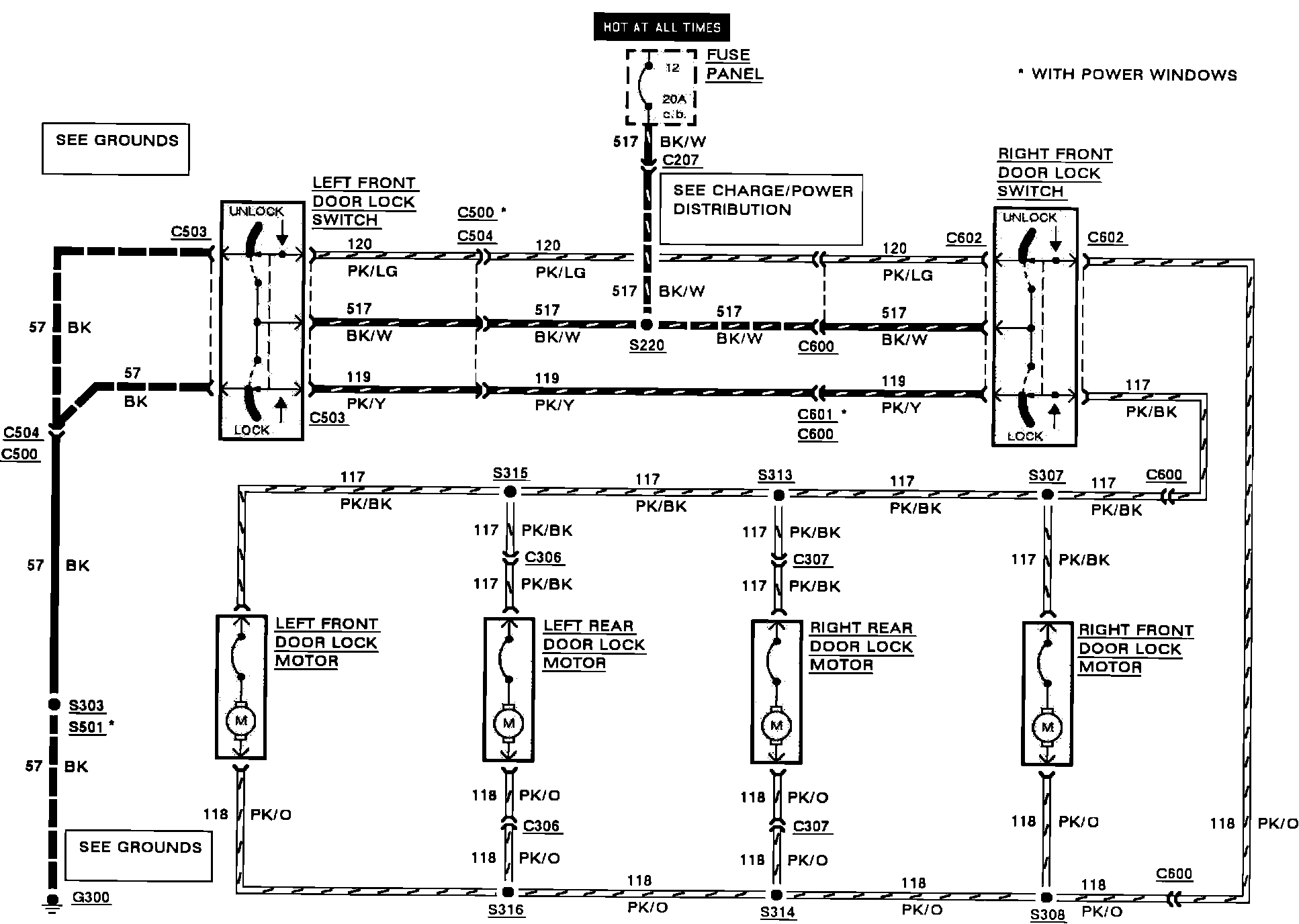

Power Door Locks - 4 Door:
