Belt Replacement With Anchor Plate Thread Damage

1. Remove broken or stripped bolt and discard.
2. Drill out internal threads in safety belt anchor plate with a 27/64 inch drill.
3. Rethread anchor plate with a 1/2-13 tap
4. Blow out chips.

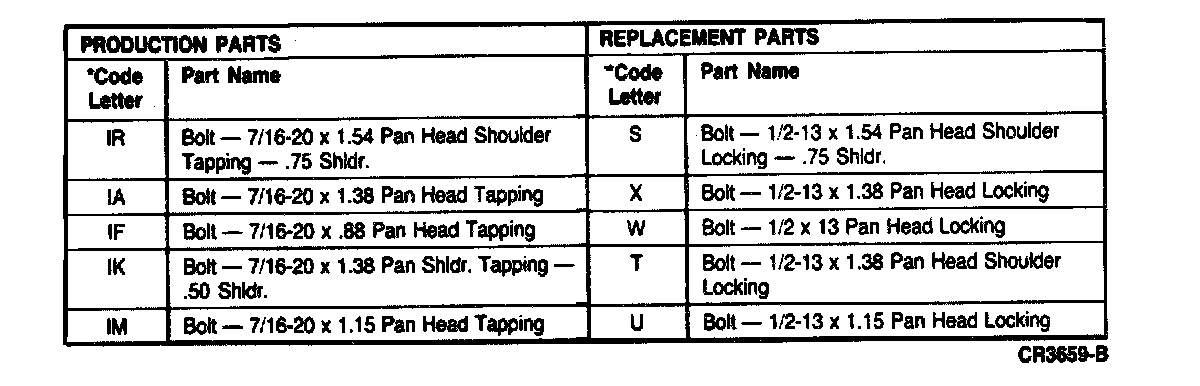

3. Install attachment parts in proper sequence. Tighten replacement bolt to specifications. Original parts are to be replaced With the service parts indicated in safety belt parts replacement chart. Unless specified in the chart, use original parts.
