Home >> Mercury >> 1990 >> Topaz FWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Diagrams >> Electrical Diagrams >> Four Door >> With Power Locks

With Power Locks

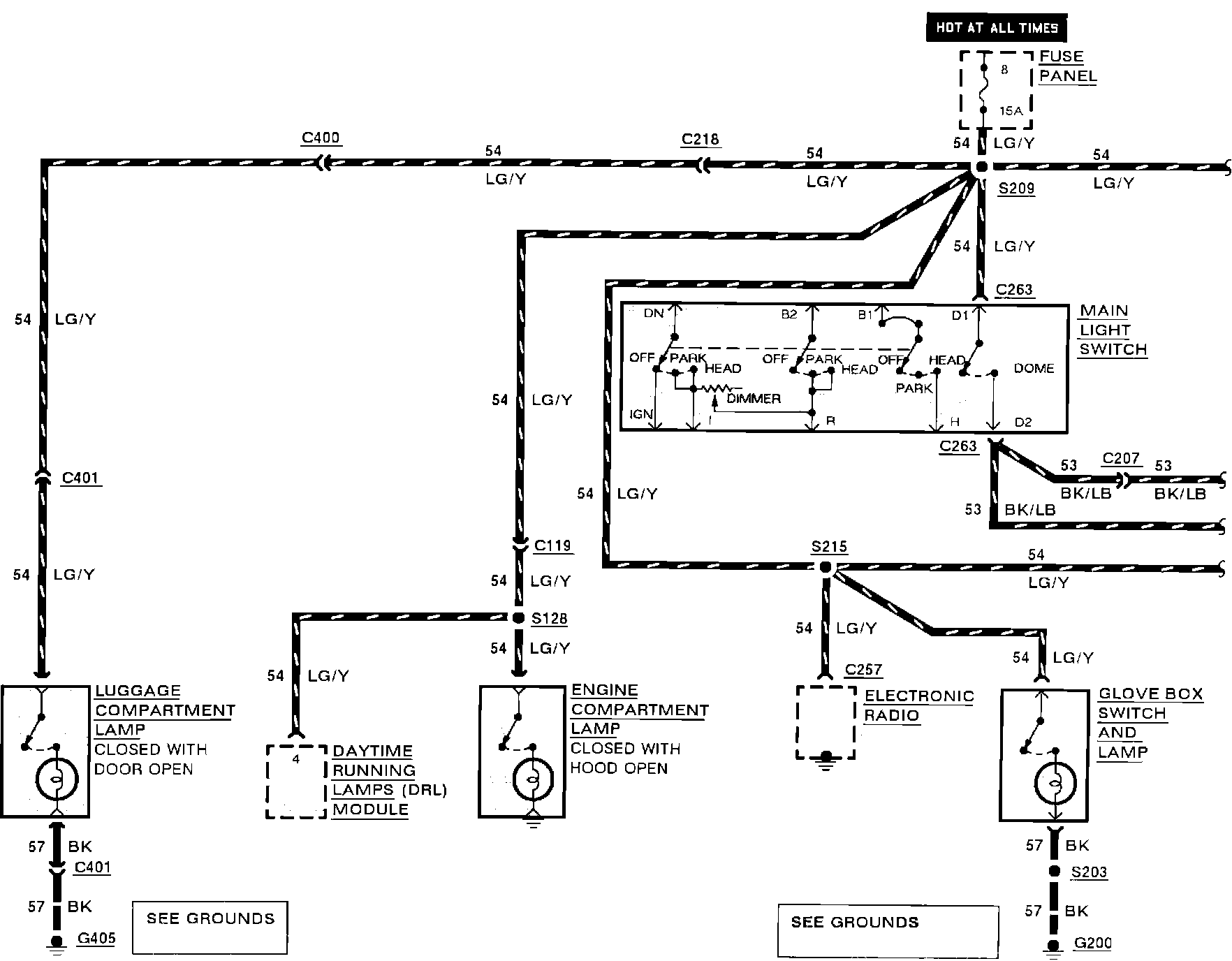

Courtesy Lamps - 4 Door With Power Locks:

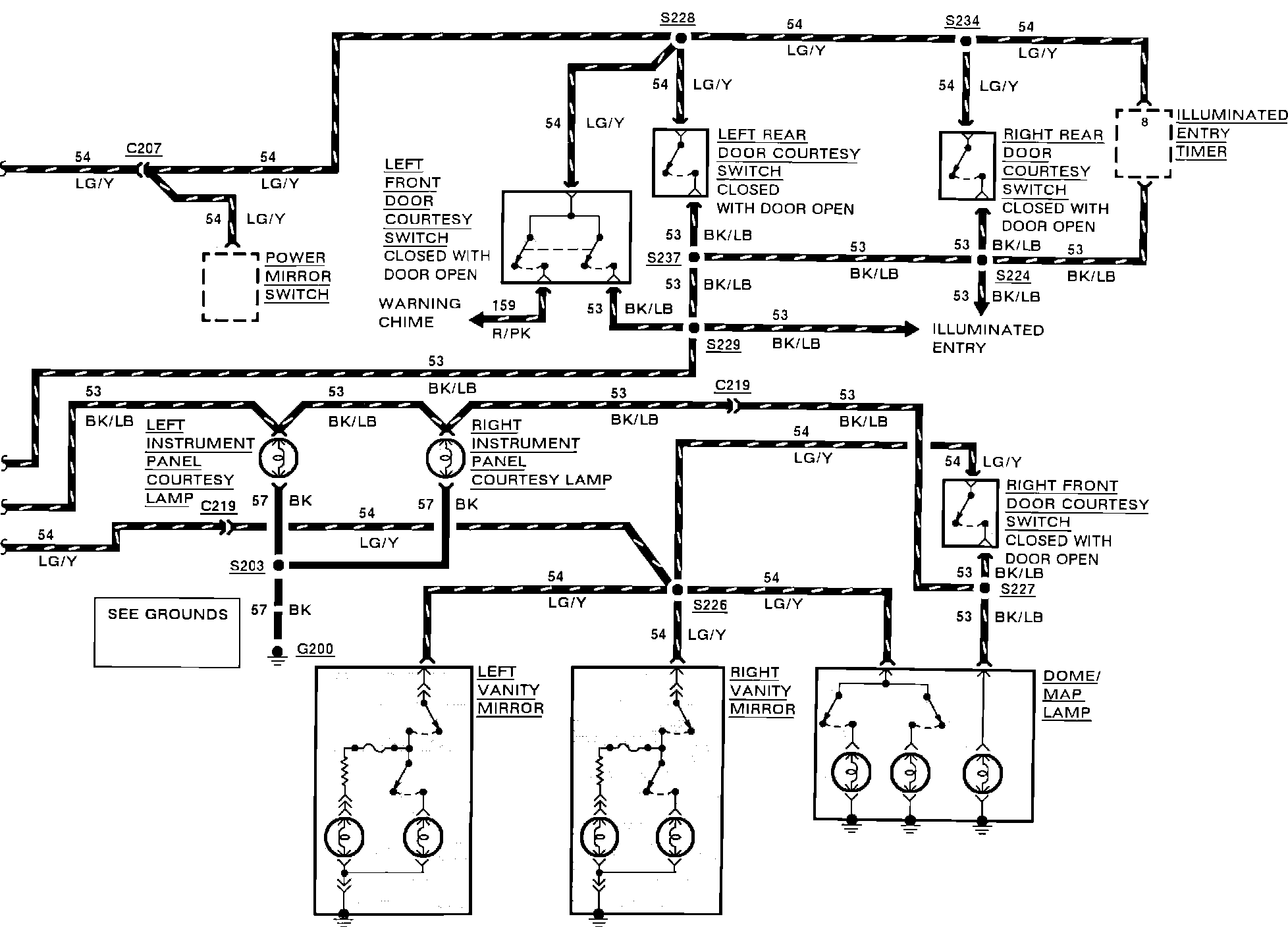

Courtesy Lamps - 4 Door With Power Locks:
