Home >> Mercury >> 1990 >> Topaz AWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive/Propeller Shafts, Bearings and Joints >> Testing and Inspection >> Pinpoint Tests >> E: Driveline Balance Diagnosis >> Test E2-E4

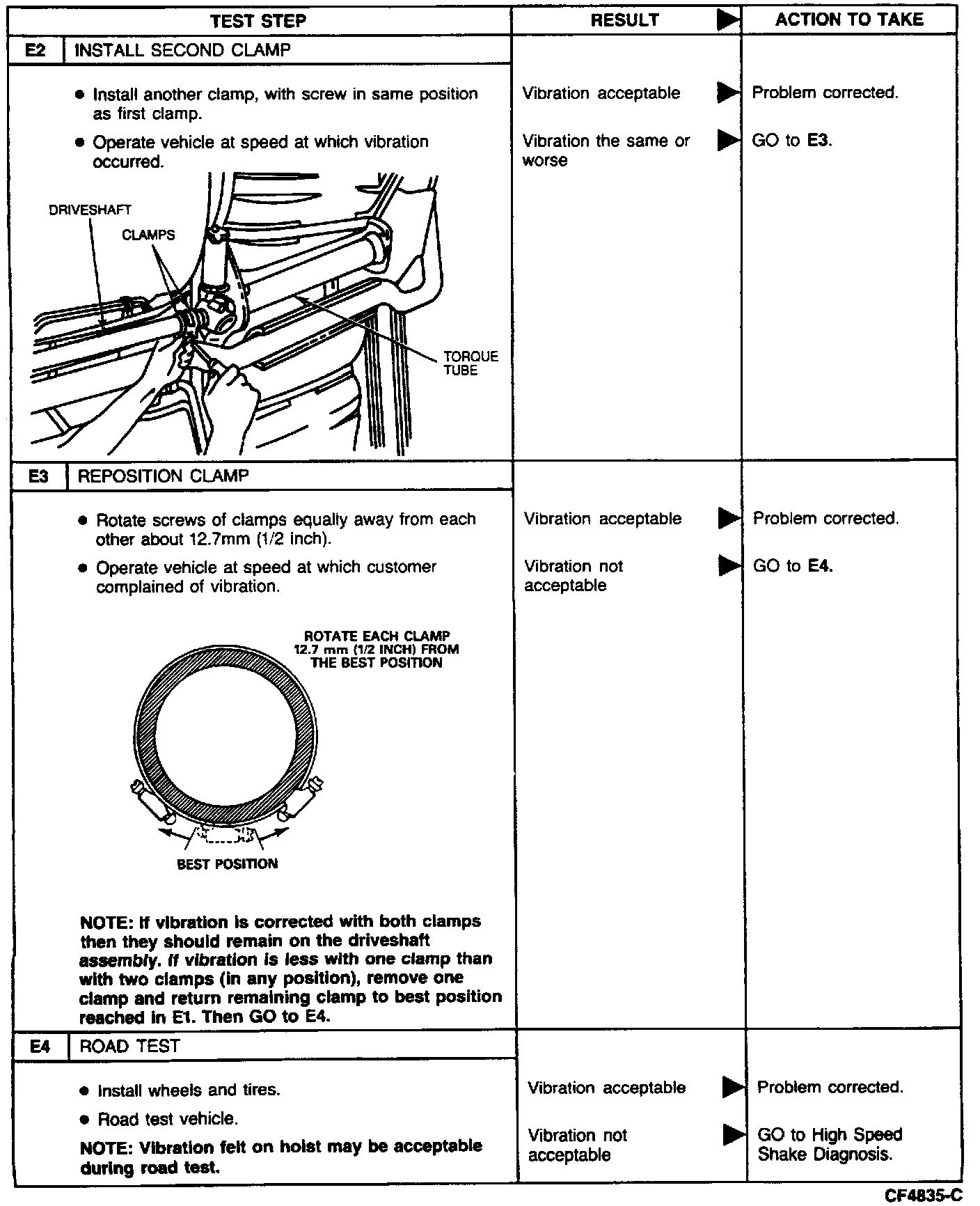

Test E2-E4

Driveshaft Balance Diagnosis-Continued:
