Home >> Mercury >> 1990 >> Topaz AWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Testing and Inspection >> Component Tests and General Diagnostics >> Shake >> Test A4

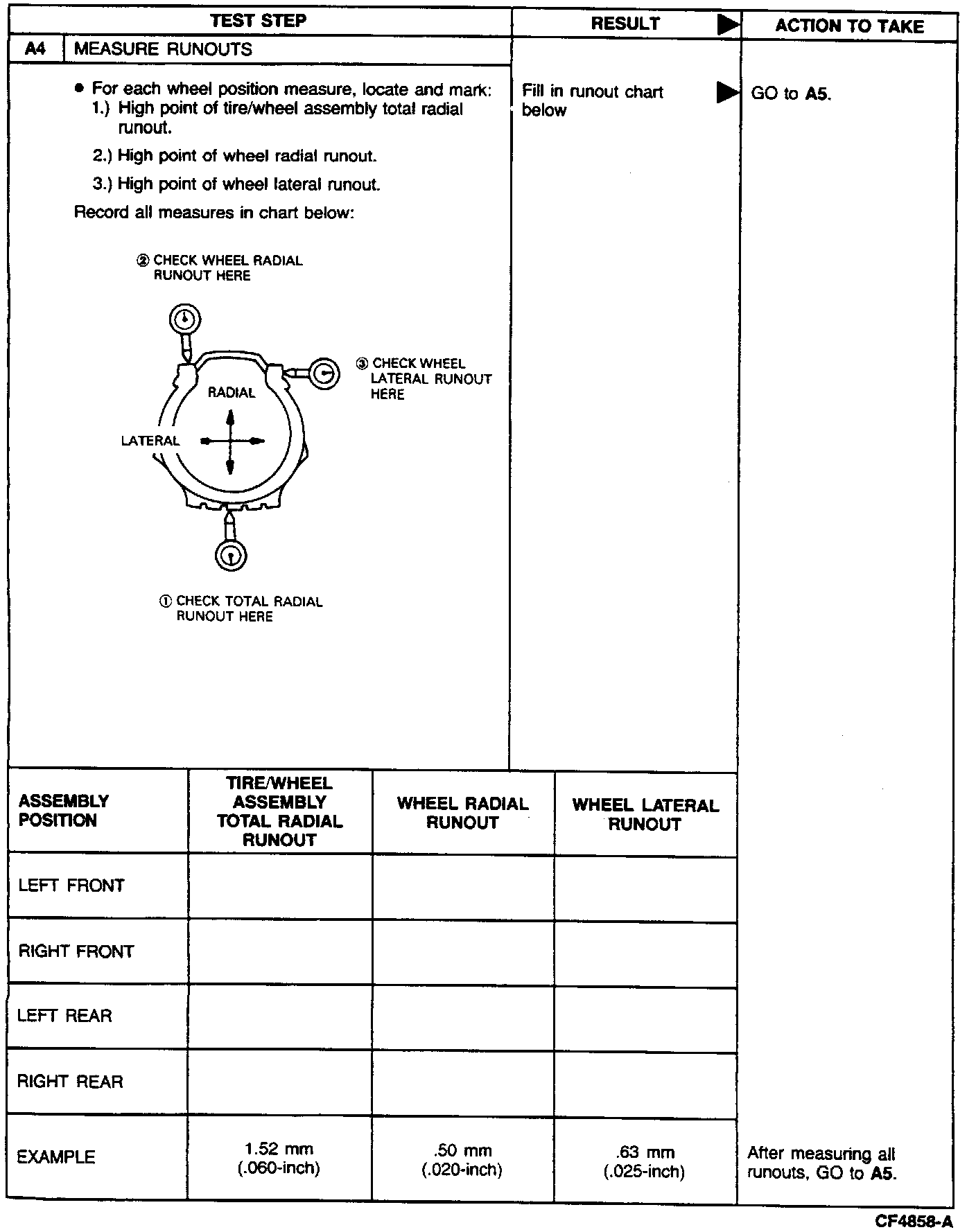

Test A4

High Speed Shake Diagnosis-Continued:
