Automatic Transmission/Transaxle: Application and ID

IDENTIFICATION

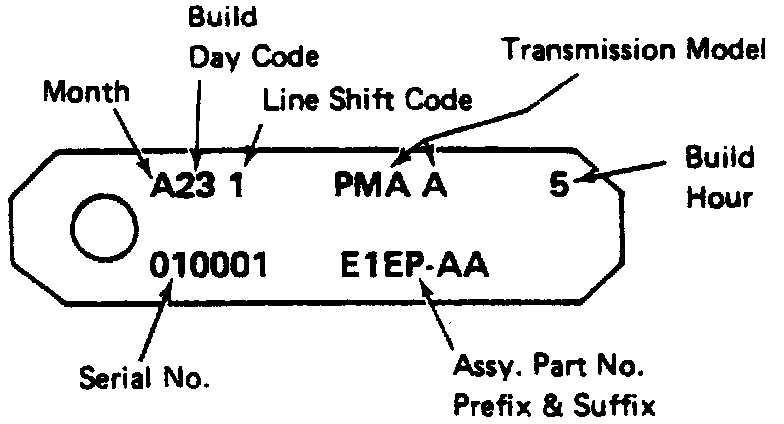

Transaxle Identification Tag:

1. The transmission identification tag is located near the valve body (upper) cover.

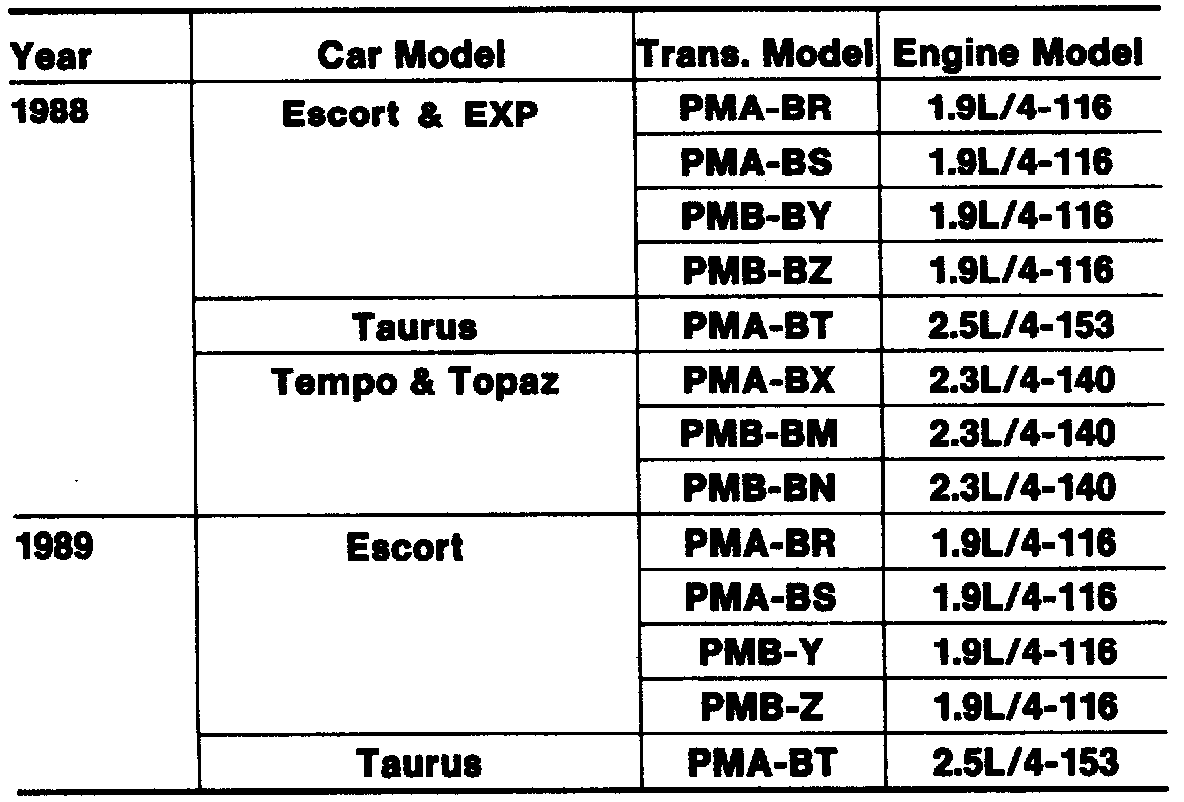

Transaxle Identification And Application, (Part 1 Of 3):

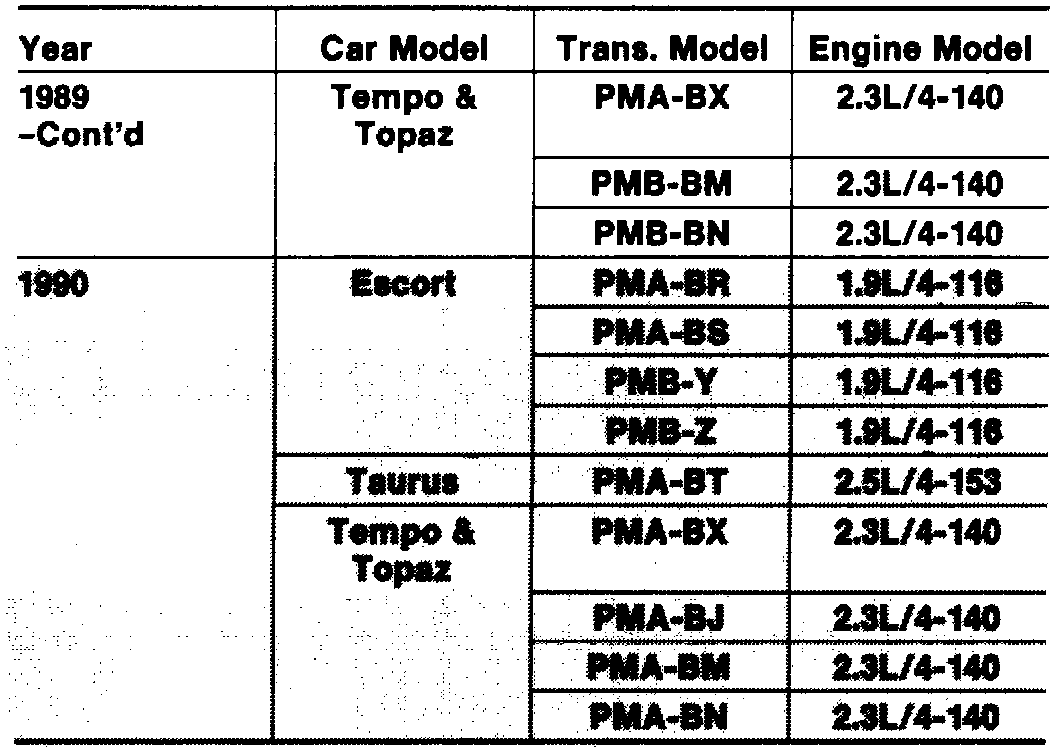

Transaxle Identification And Application, (Part 2 Of 3):

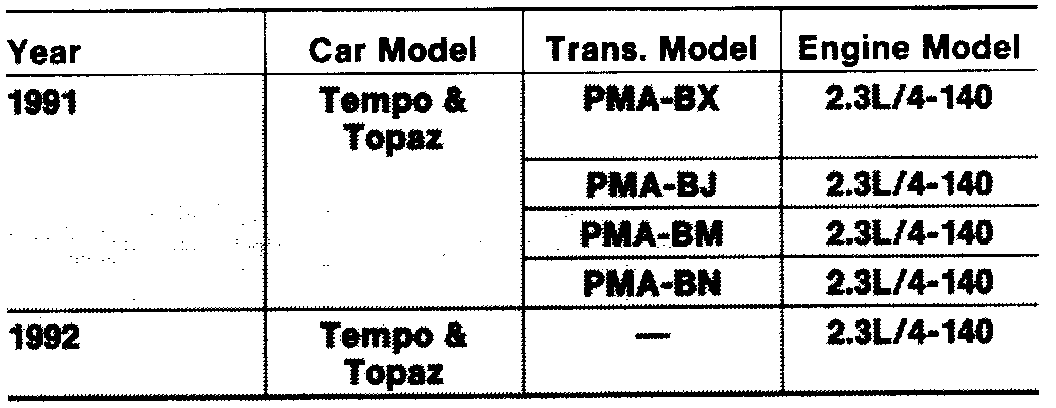

Transaxle Identification And Application, (Part 3 Of 3):

2. Refer to the Transaxle Identification And Application images, for transaxle identification and application.
