Electrical Connectors - Manual Revision

Article No.
91-11B-28

06/14/91

ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1990 - PAGE 152-9 - CONNECTOR LOCATIONS REVISED

FORD:
1990 TEMPO

LINCOLN-MERCURY:
1990 TOPAZ

ISSUE:
The page locations for Connectors C202 and C217 were listed incorrectly in the Location Index on Page 152-9 of the 1990 Tempo/Topaz Electrical/Vacuum Troubleshooting Manual.





ACTION:

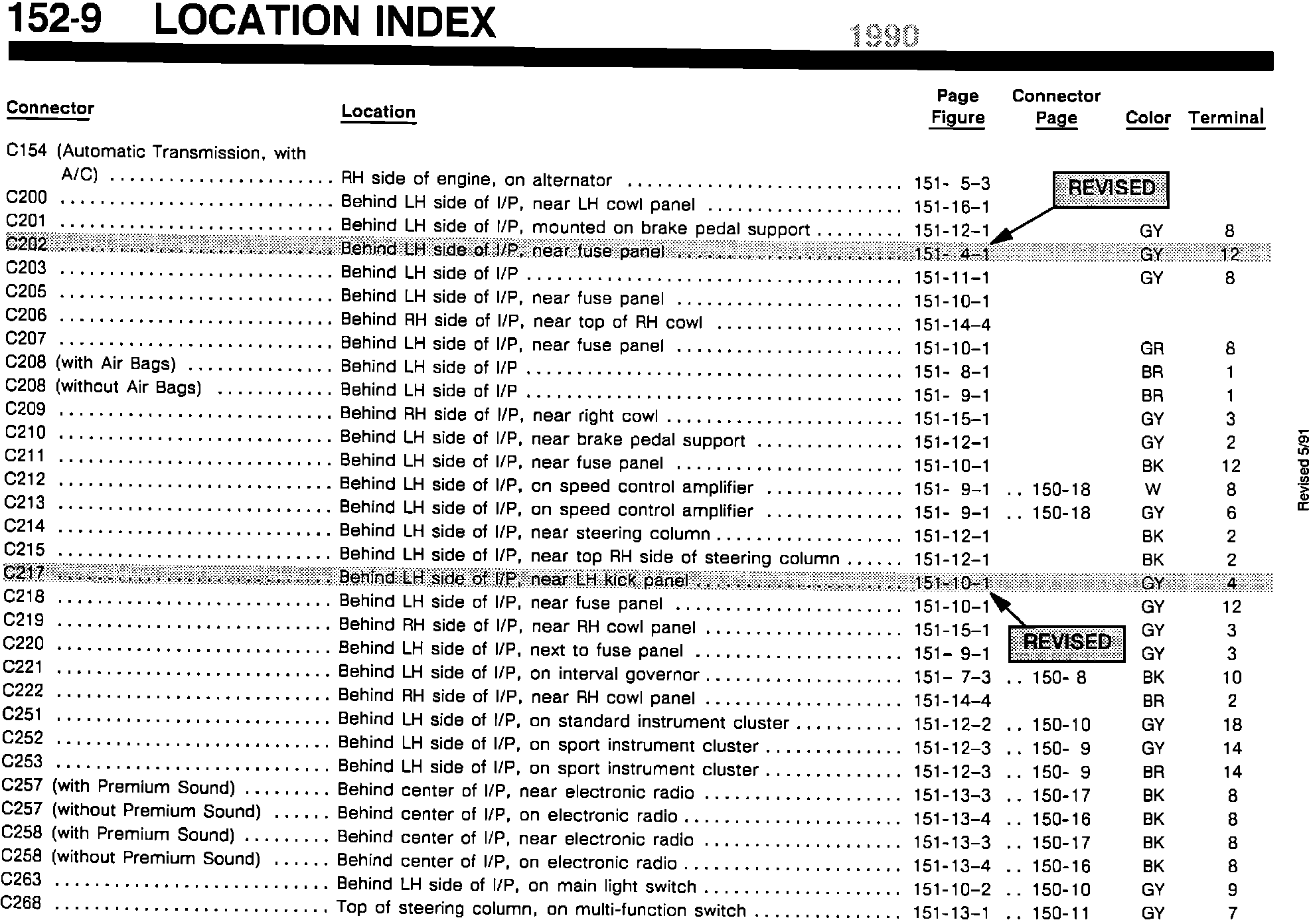

Refer to the page in this TSB article for the revised Connector locations.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 290000
