Escort (4-Door Models)

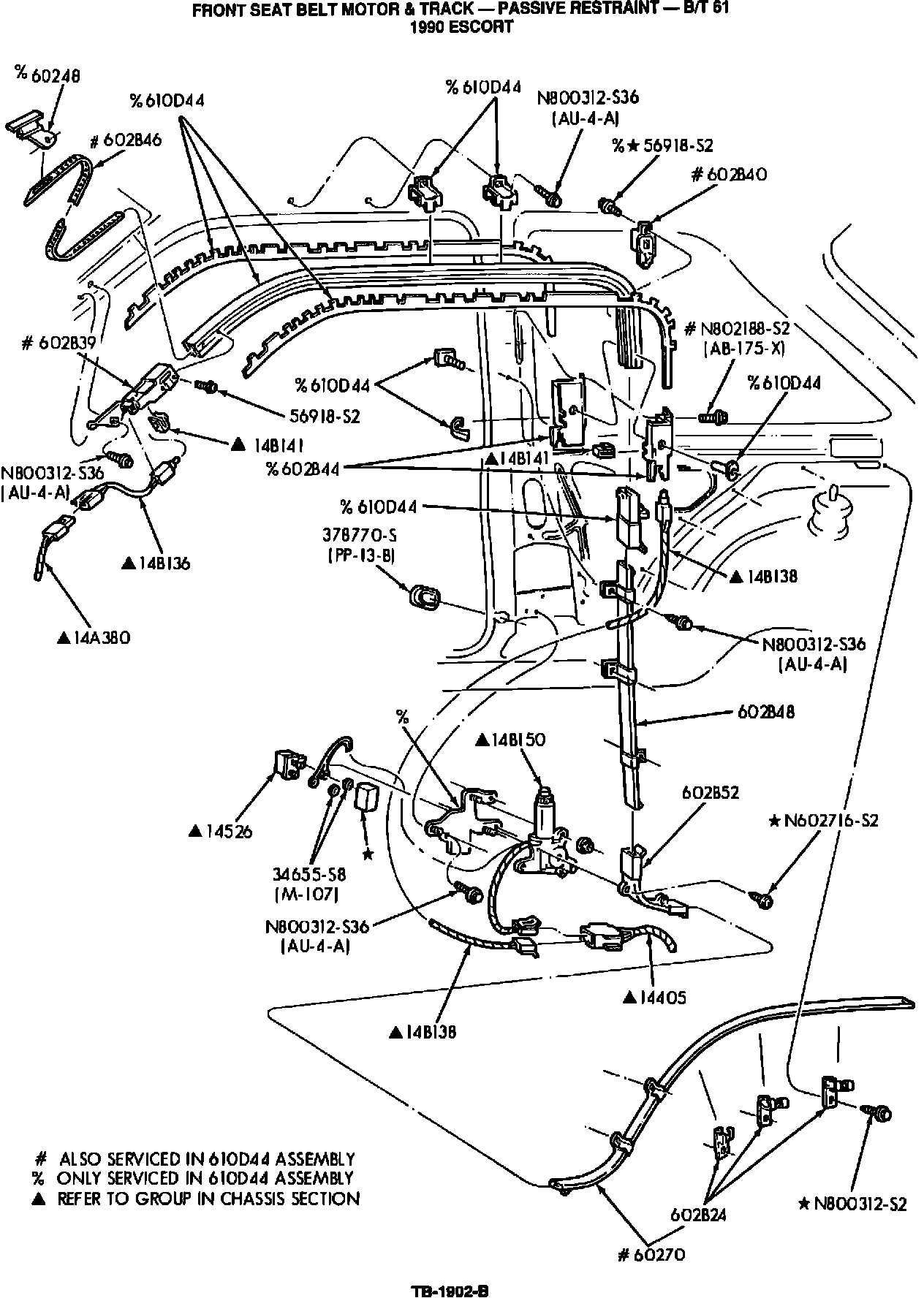

Figure 1:

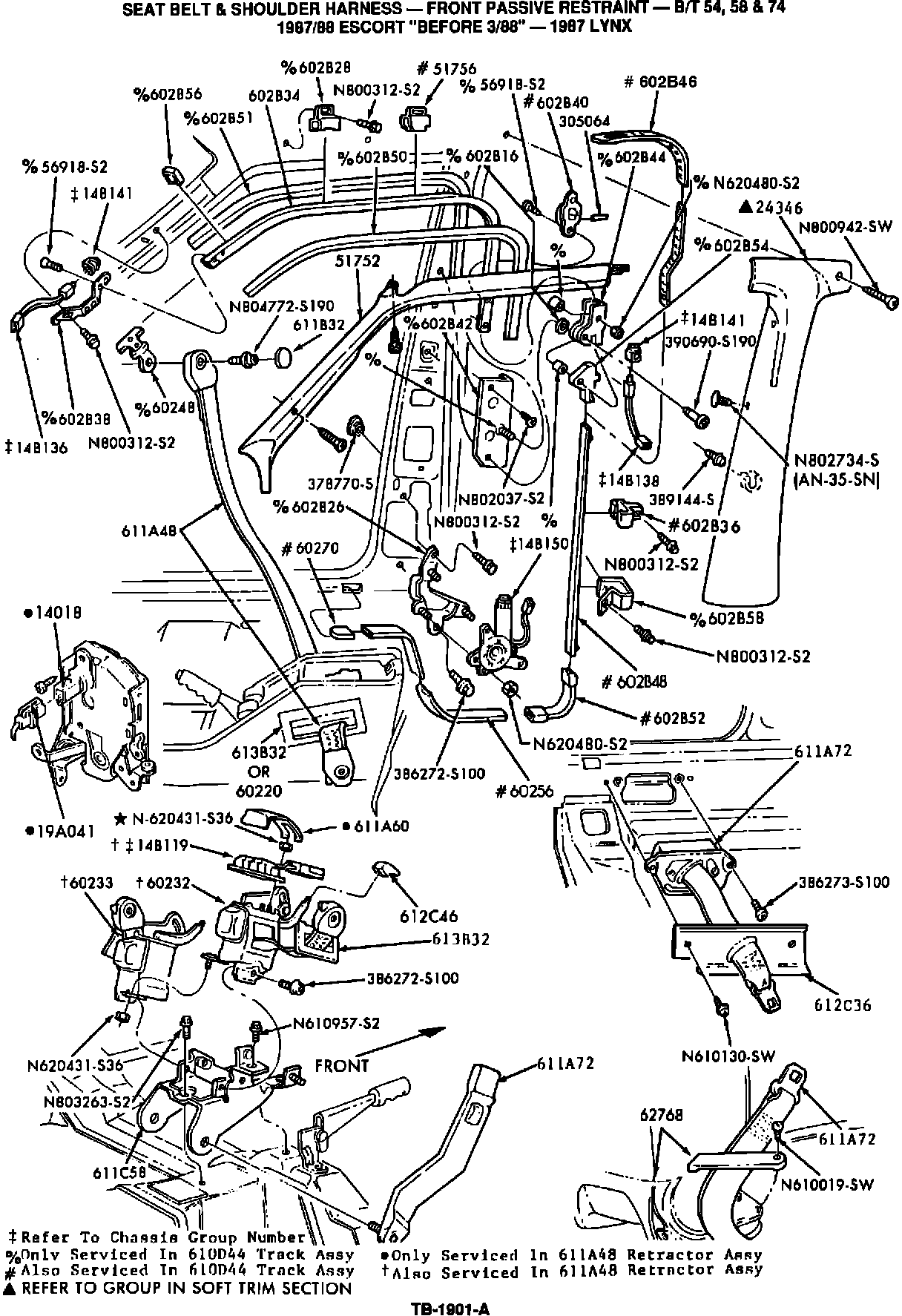

Figure 2:

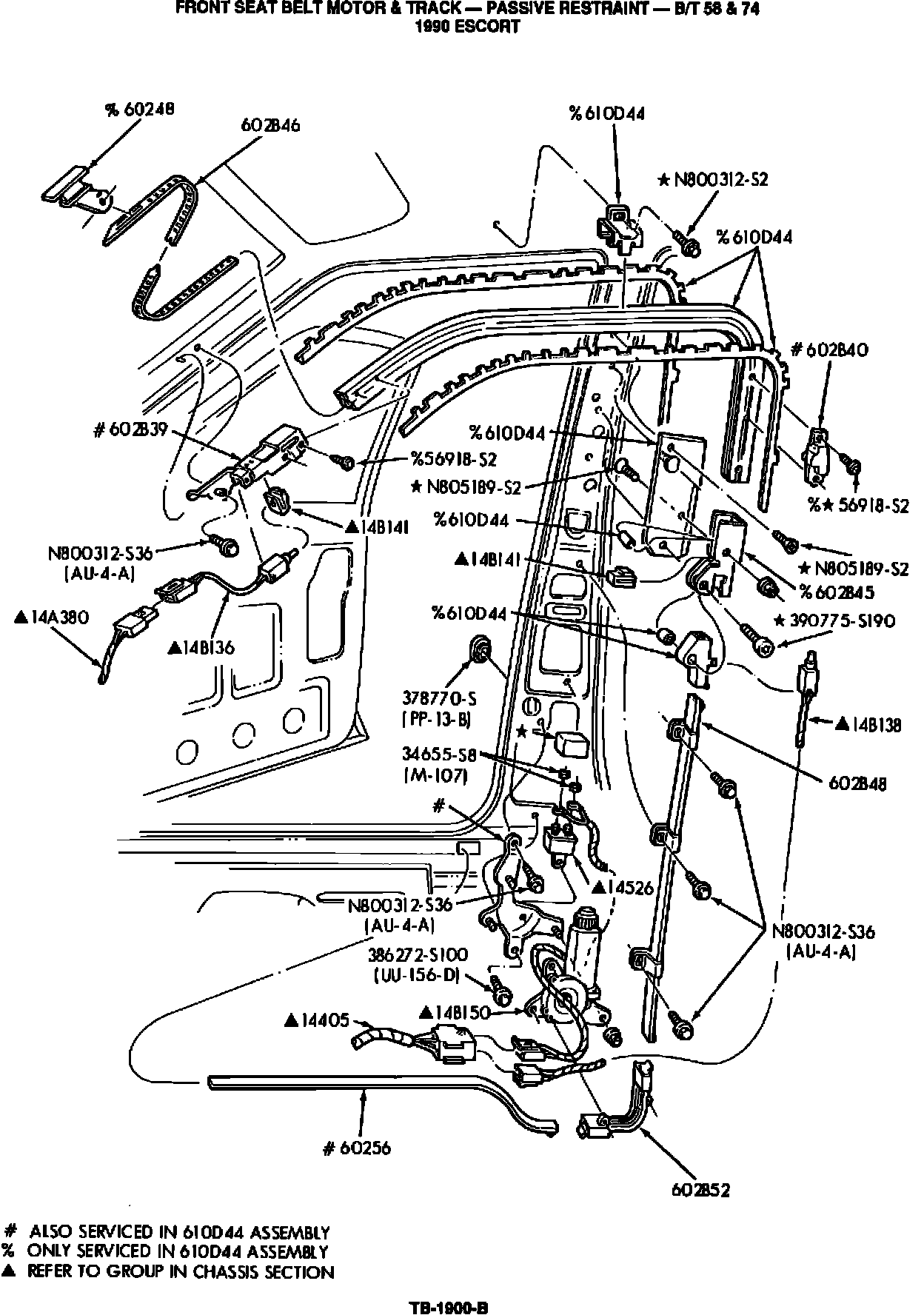

Figure 3:

Figure 4:

ESCORT (4-DOOR MODELS)

SERVICE PART BENDIX PART
NUMBER NUMBER SERVICE PART DESCRIPTION QTY.

E8FZ-14B150-A E1151200-00 Motor & Drive Assembly - RH 1

E8FZ-14B151-A E1151300-00 Motor & Drive Assembly - LH 1

E7FZ-14B141-A E1142000-00 Spacer - Seat Belt Retractor Switch 2

E7FZ-14B136-A E1140700-01 Switch - Front Seat Shoulder Strap Front 1

E83Z-14B138-A E1312400-01 Switch - Front Seat Shoulder Strap Rear 1

E7FZ-19590-A E0158600-00 Teflon/Lithium Grease 1

FOFZ-11602B16-A E0735500-00 Retaining Washer 1

FOFZ-61602B26-A E11276400-02 Bracket - Front Seat Shoulder Strap Motor - RH 1

FOFZ-61602B27-A E11276500-02 Bracket - Front Seat Shoulder Strap Motor - LH 1

E8FZ-58602B38-A E1140200-02 Bracket - Front Seat Shoulder Strap Track Front - 1
RH

E8FZ-58602B39-A E1140300-02 Bracket - Front Seat Shoulder Strap Track Front - 1
LH


ESCORT (4-DOOR MODELS) CONT.

SERVICE PART BENDIX PART
NUMBER NUMBER SERVICE PART DESCRIPTION QTY.

E8FZ-58602B40-A E1143800-04 Lockout - Front Seat Shoulder Strap Track - RH 1

E8FZ-58602B41-A E1143900-04 Lockout - Front Seat Shoulder Strap Track - LH 1

E7FZ-58602B46-B E1149800-00 Belt - Front Seat Shoulder Strap Drive 1

E7FZ-58602B48-B E1145800-01 Guide - Front Seat Shoulder Strap Drive Belt - RH 1

E7FZ-58602B49-B E1145900-01 Guide - Front Seat Shoulder Strap Drive Belt - LH 1

E7FZ-58602B52-B E1146600-00 Track - Front Seat Shoulder Strap Drive Belt - RH 1

E7FZ-58602B53-B E1146700-00 Track - Front Seat Shoulder Strap Drive Belt - LH 1

E8FZ-5860256-A E11447500-01 Guide - Front Seat Shoulder Strap Lower 1

56918-S2 E1142100-00 Screw - Type B M4.2 x 6.3 Round Washer Head 2

95873-S E1226700-00 Tie Strap 3

390775-S190 E1260700-00 Bolt - 7/16" - 20 x 2.0 Pan Head 1

N602717-S2 E1180500-00 Screw & Washer - M5 x 0.8 x 10 2
