Seat Belt Retractor: Service and Repair

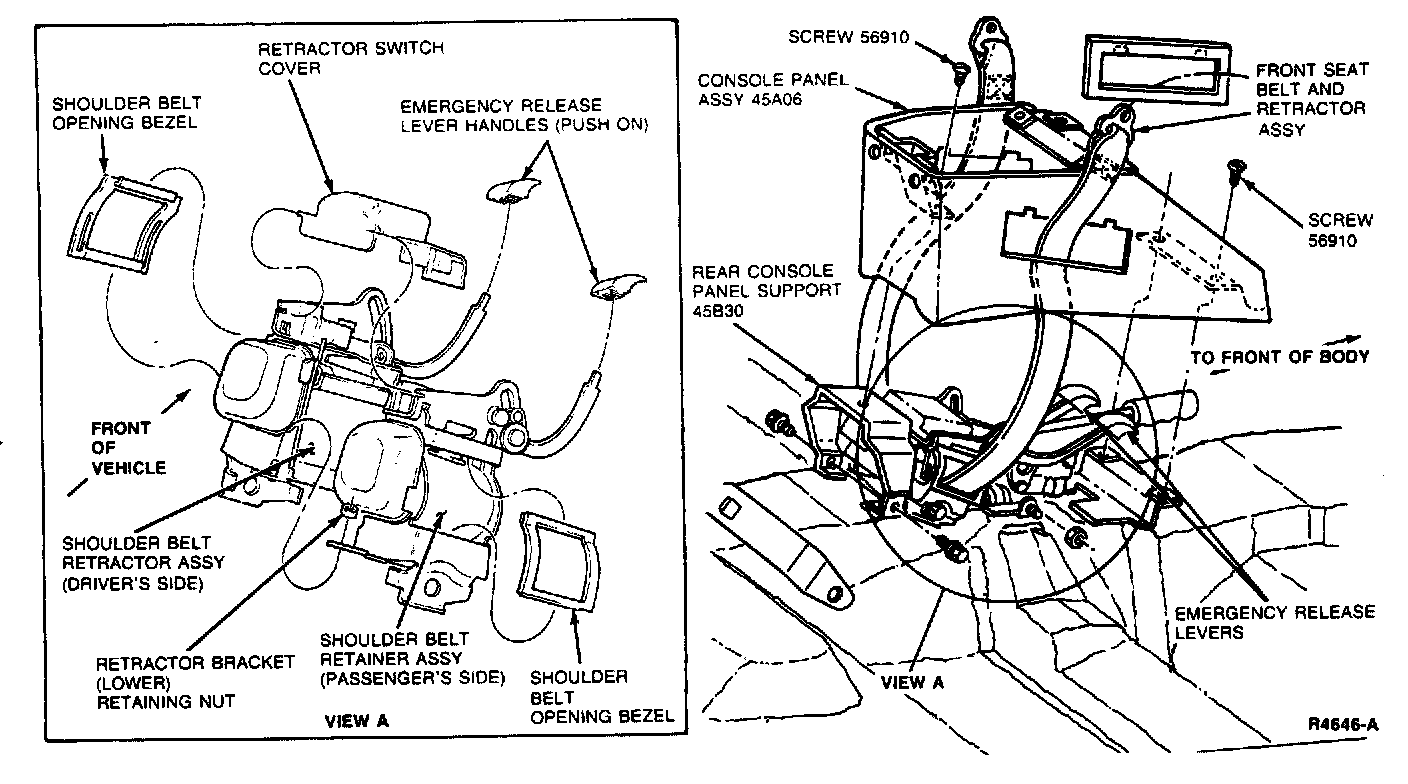

Shoulder Belt Retractor - Passive Shoulder Belt System





Removal and Installation
1. Remove plug button at shoulder belt retainer anchor cover.
2. Disconnect shoulder belt anchor at retainer.
3. Remove emergency release lever handles.

NOTE: Relieve pressure of retaining clip on underside of handles, while gently pulling handles off.

4. Remove console attaching screws.
5. Remove armrest, if so equipped.
6. Disengage shoulder harness opening bezel from the console.
7. Remove the retractor.
8. To install, reverse Steps 1 through 7.

NOTE: Cycle shoulder belts to B-pillar position prior to reinstalling belt anchor to belt retainer. Tighten shoulder belt retaining bolts to 24-32 Nm (18-24 lb-ft). Tighten retractor to floor brace retaining bolts to 30-43 Nm (22-32 lb-ft).
