Schematics and Connector Views

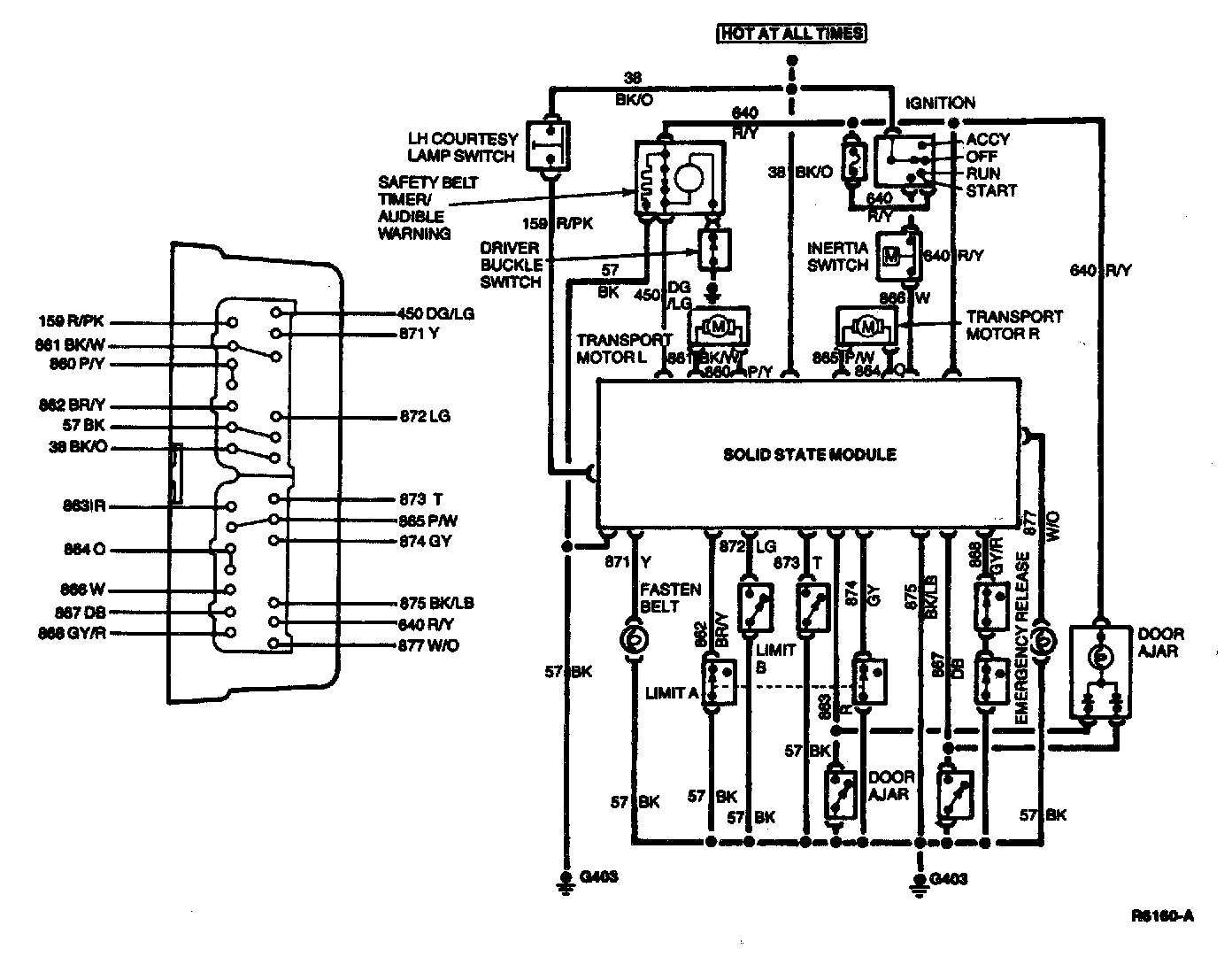

System Schematic:

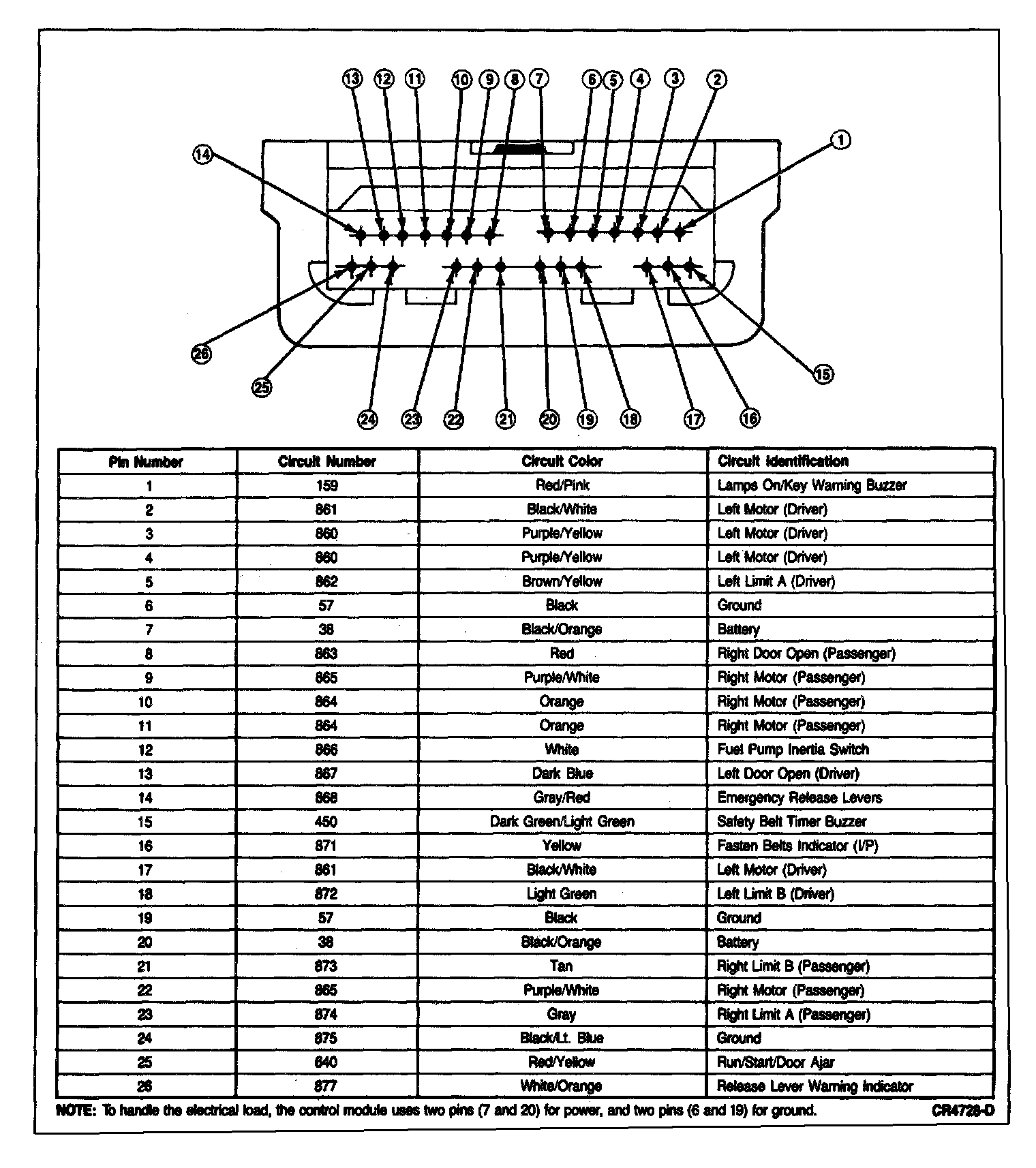

Control Module Connector View:

NOTE: To handle the electrical load, the control module uses two pins (7 and 20) for power, and two pins (6 and 19) for ground.
