Child Seat Tether Attachment: Locations

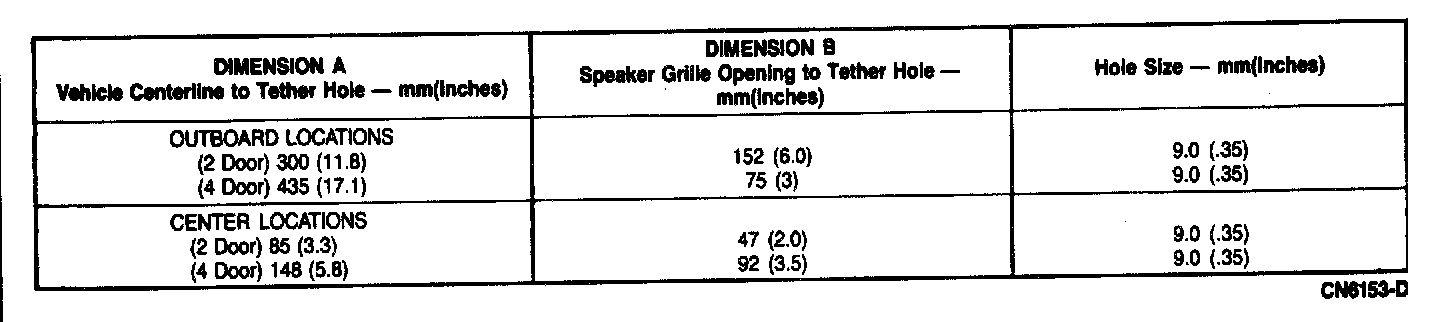

Dimension A is the distance from the centerline of the vehicle to the center of the attachment holes.
Dimension B is the approximate distance from the center of the radio speaker grille opening to the center of the tether attachment holes.

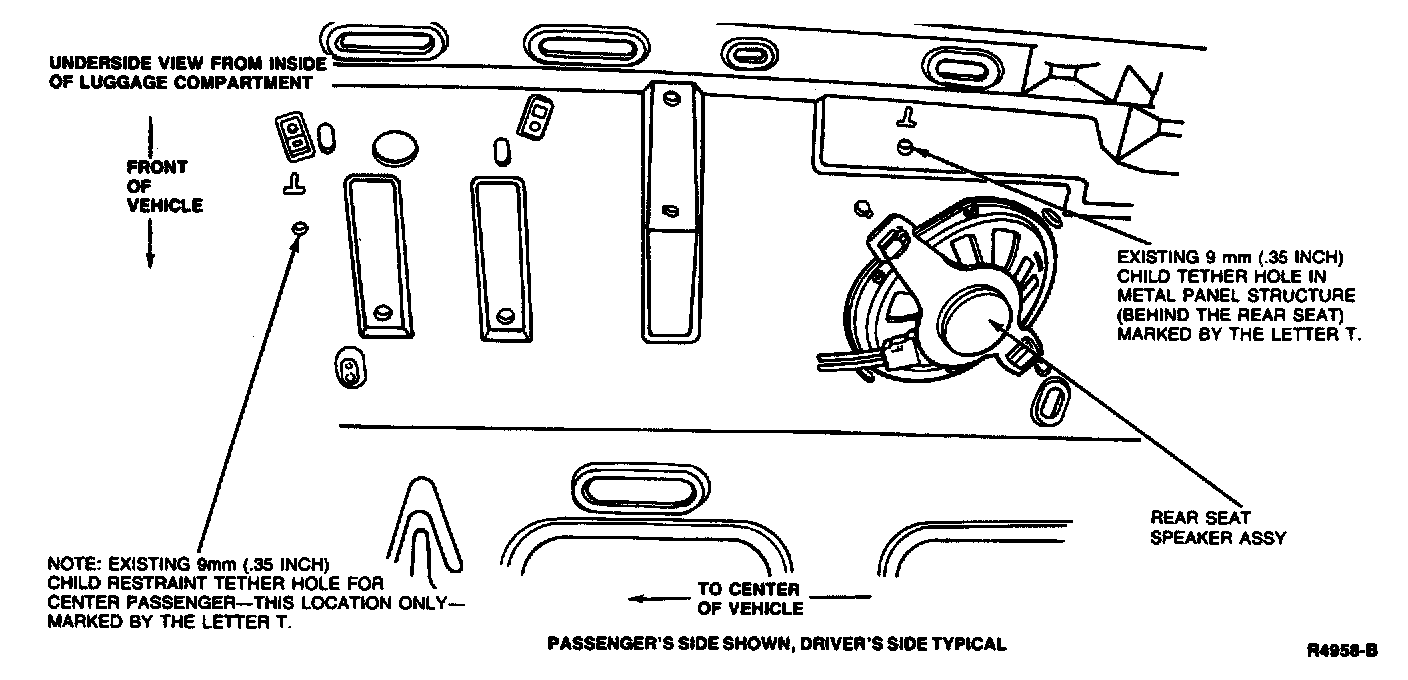

Tether Attachment Holes -- Four Door Models:

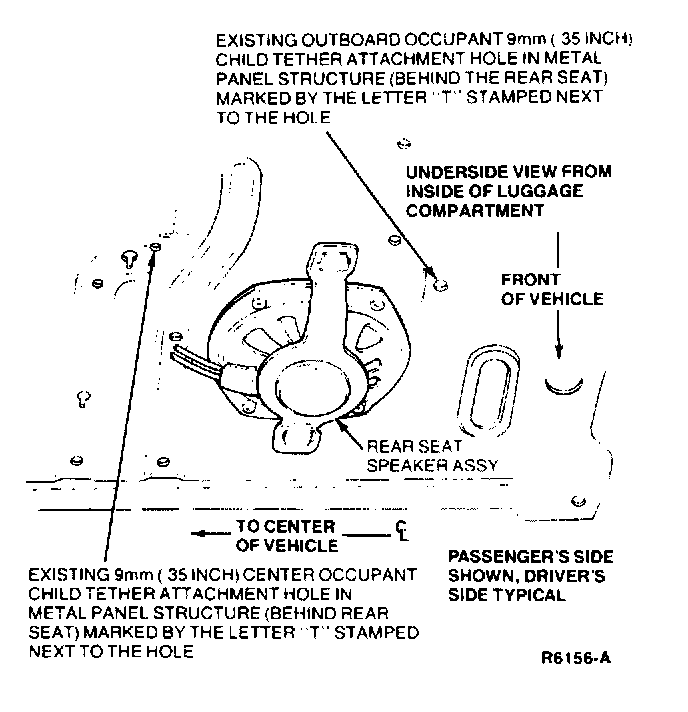

Tether Locations - 2 Door Models:

Vehicles have three 9.0 mm (0.35-inch) holes provided in the rear window tray sheet metal structure for attaching the child seat tether.
