Test 8: Air Bag Lamp Flashes Eight Times
Test 8: Air Bag Lamp Flashes Eight Times
Probable Fault - Forward
Crash Sensor
Improperly Attached or Grounded

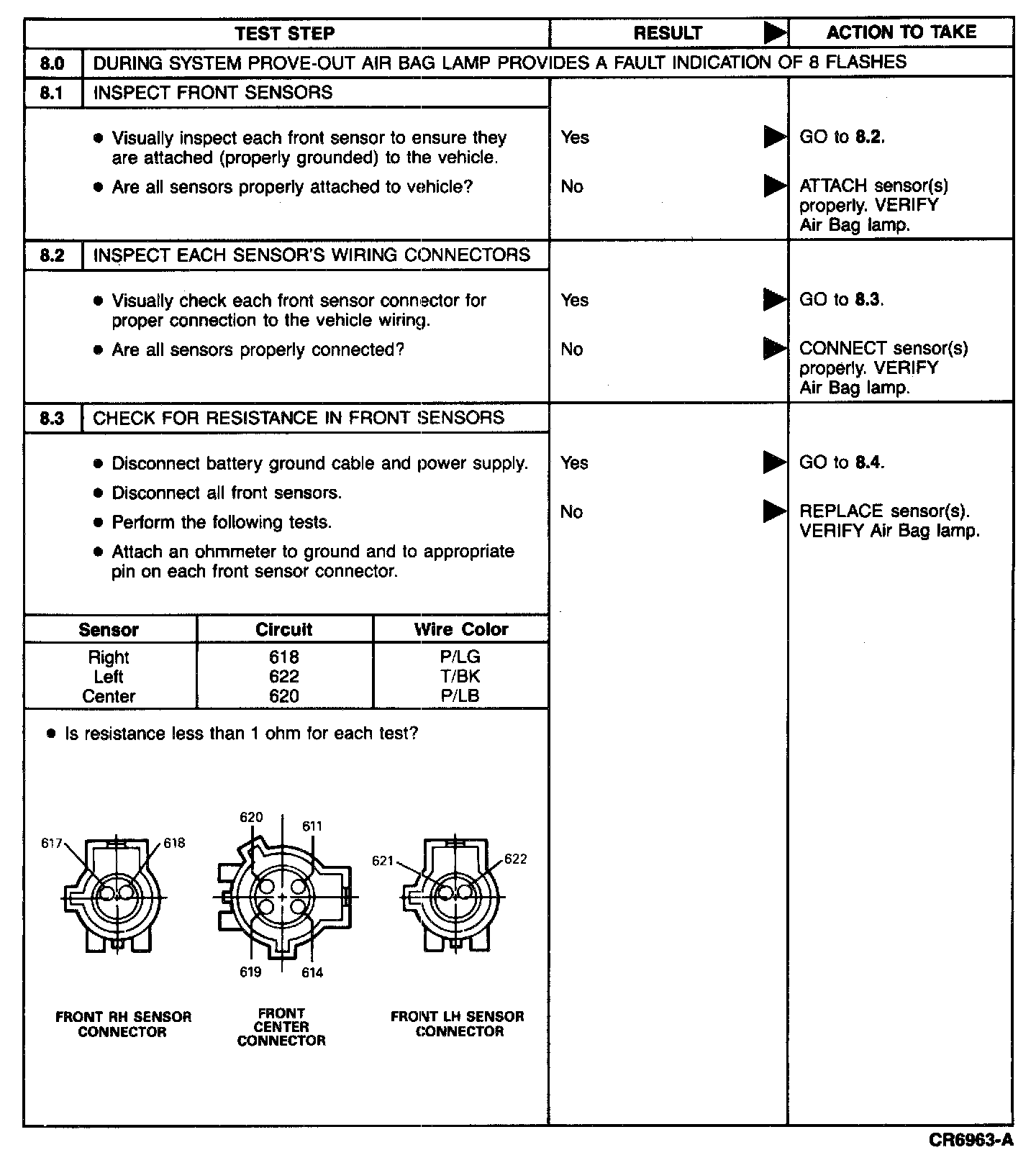

8.0 -- 8.3:

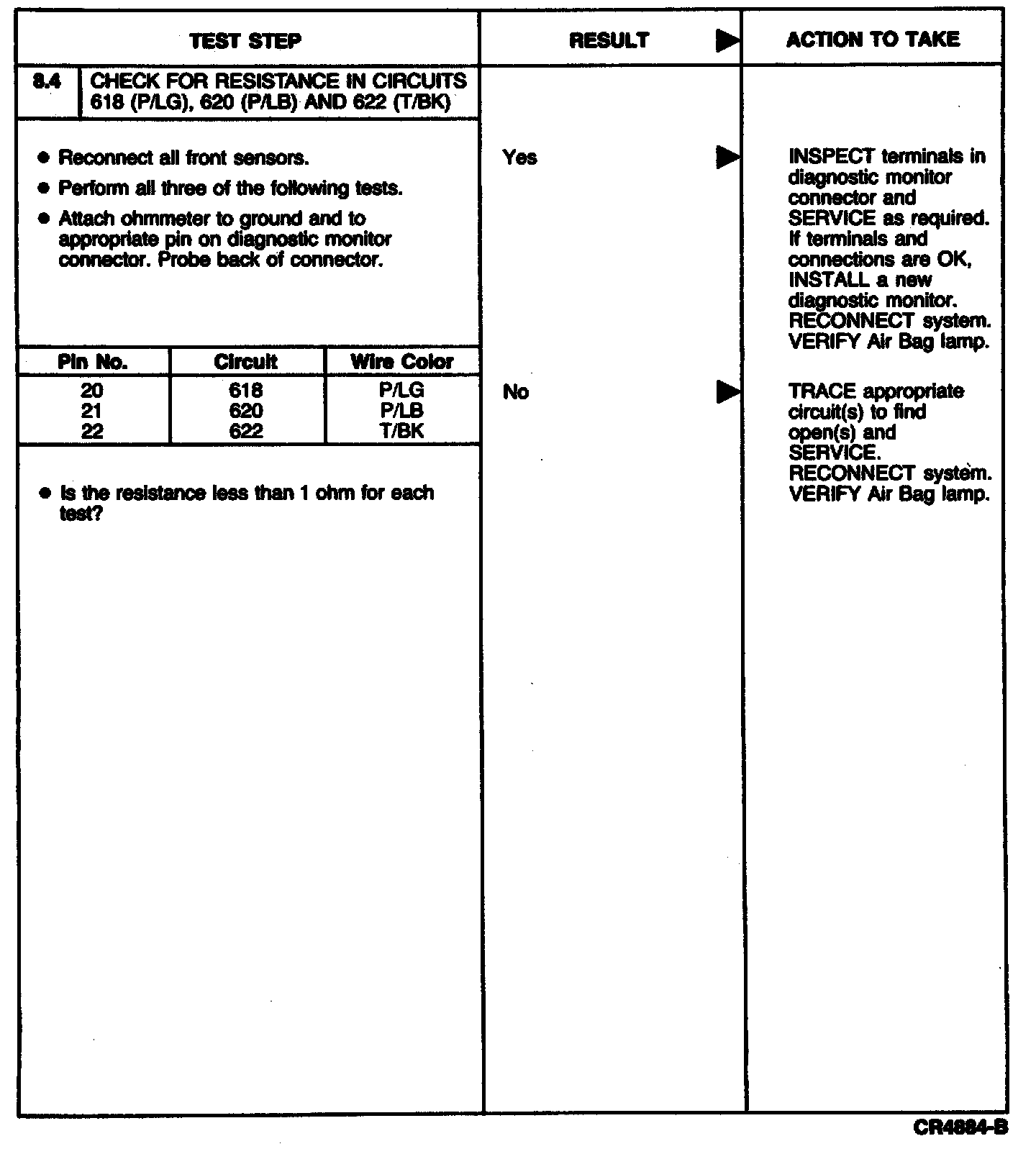

8.4:
