Test 5: Air Bag Lamp Flashes Five Times
Test 5: Air Bag Lamp Flashes Five Times
Probable Fault - Forward
Crash Sensor
Or Igniter Circuit Shorted to Ground

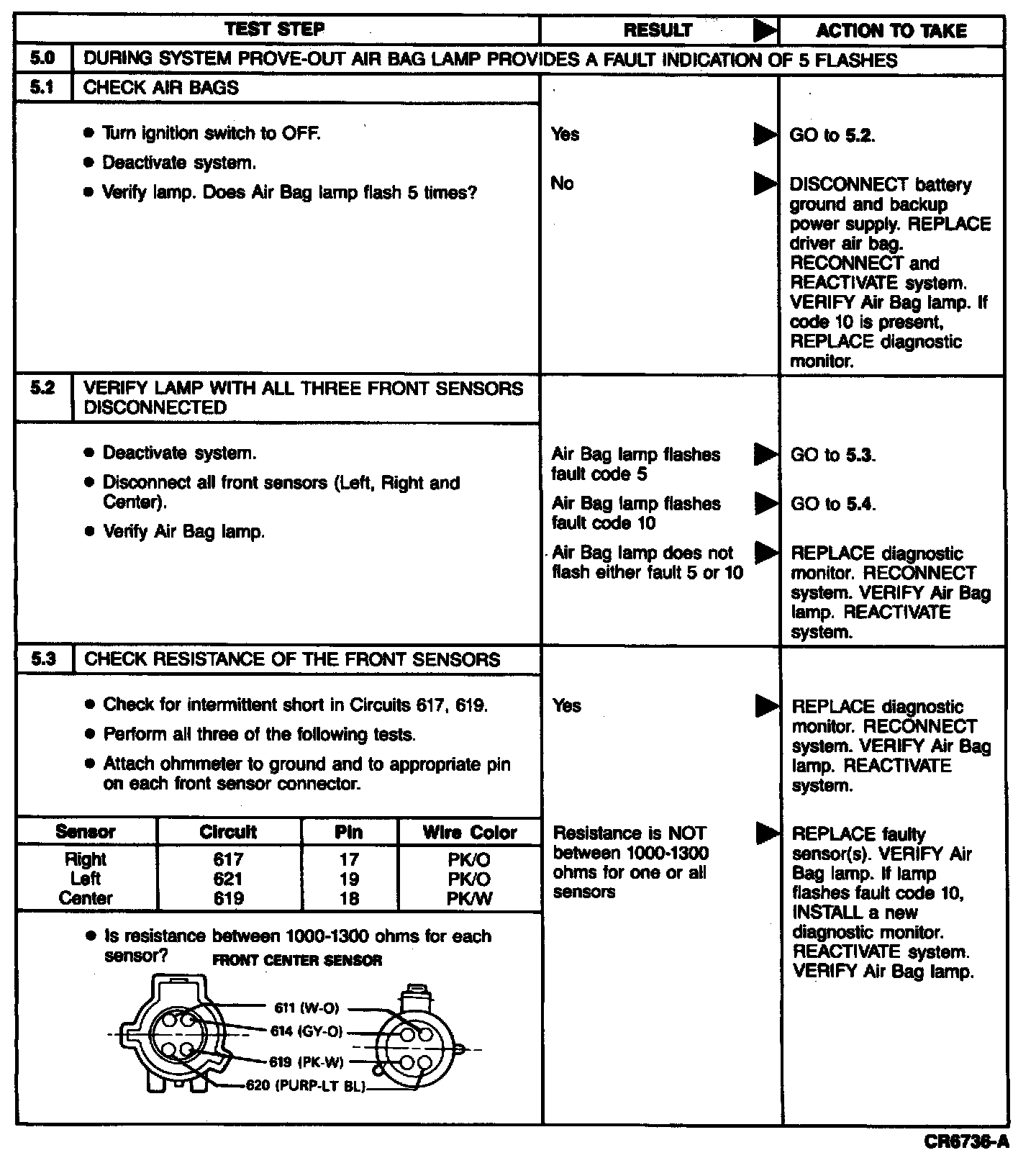

5.0 -- 5.3:

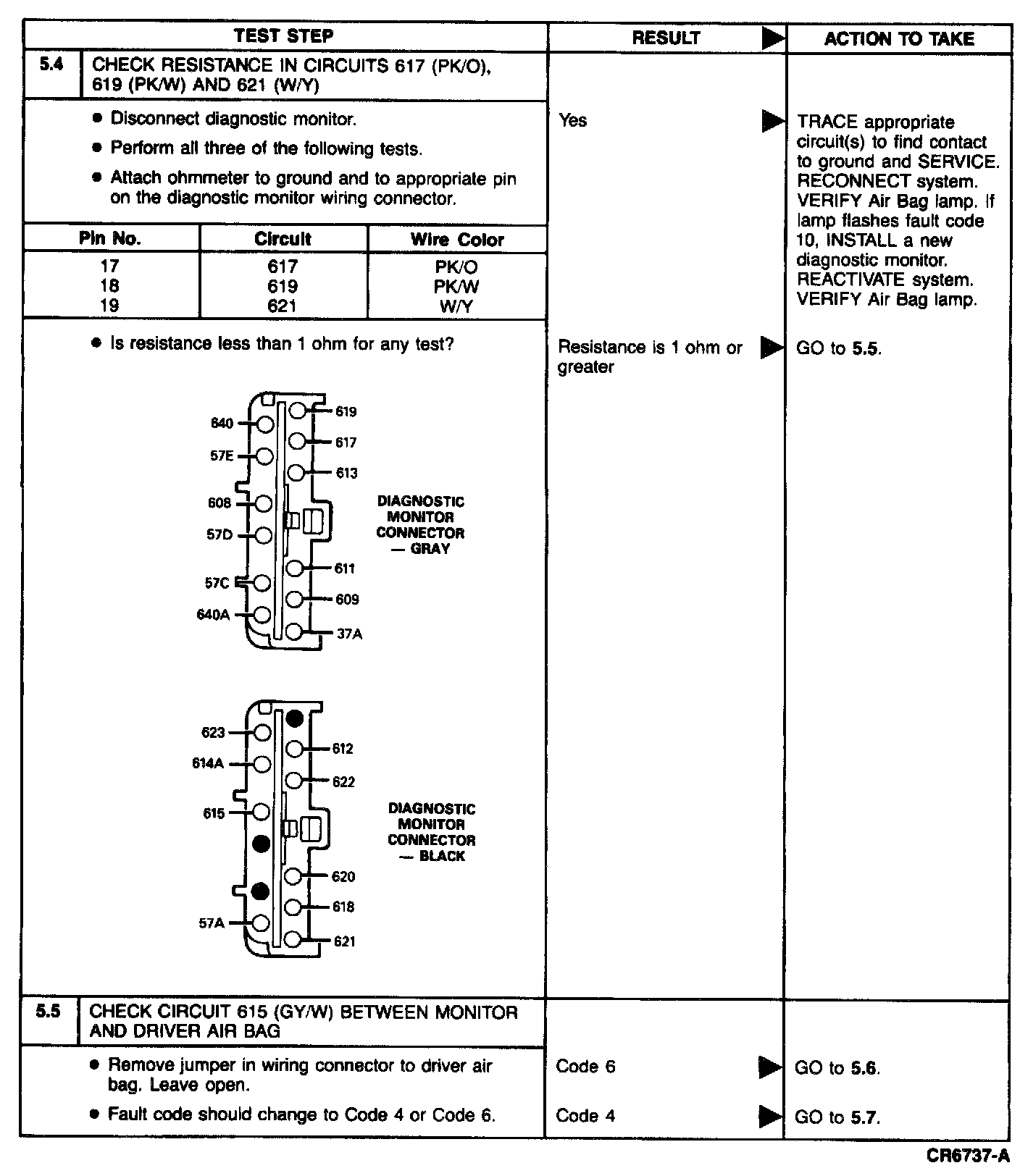

5.4 -- 5.5:

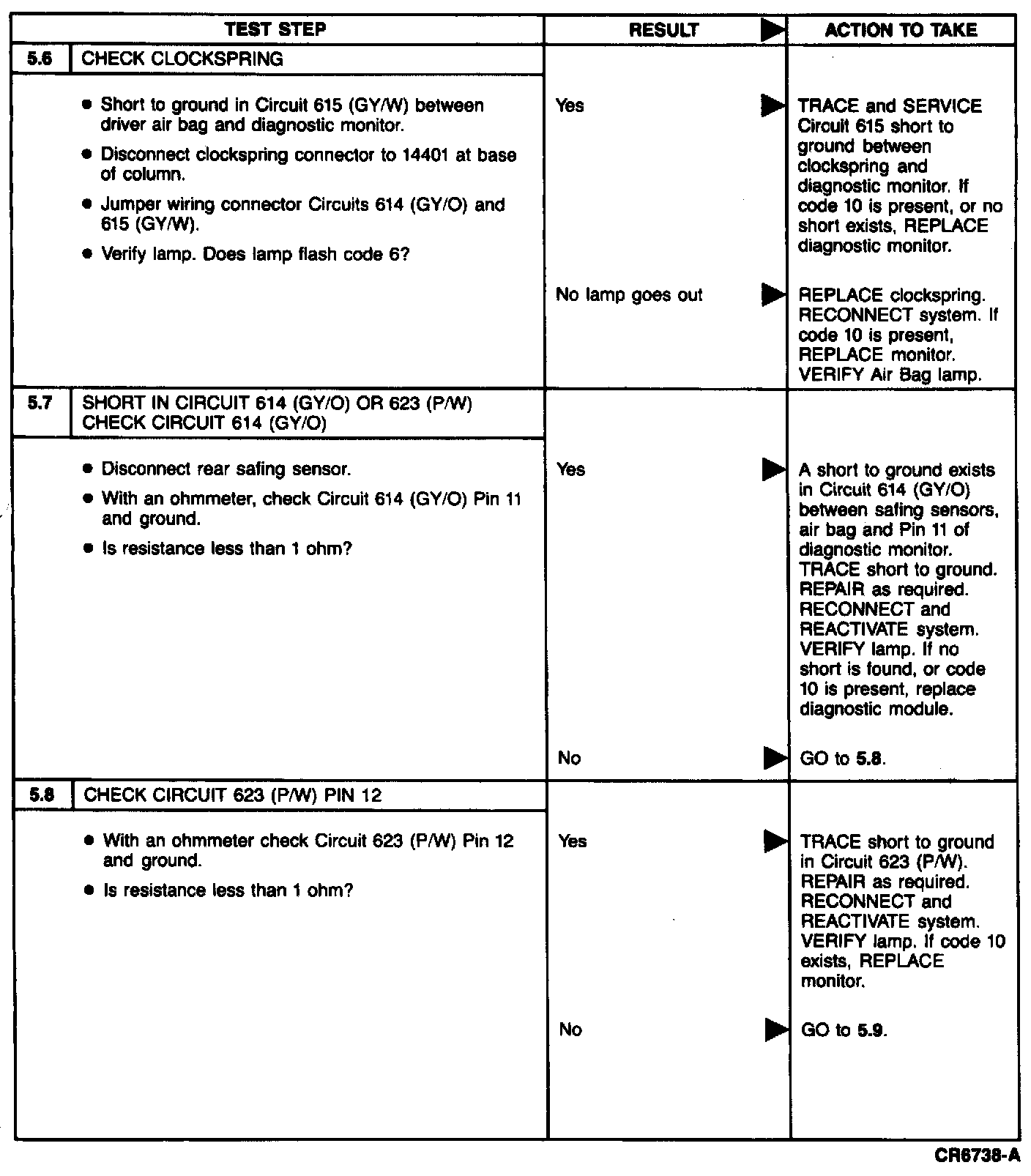

5.6 -- 5.8:

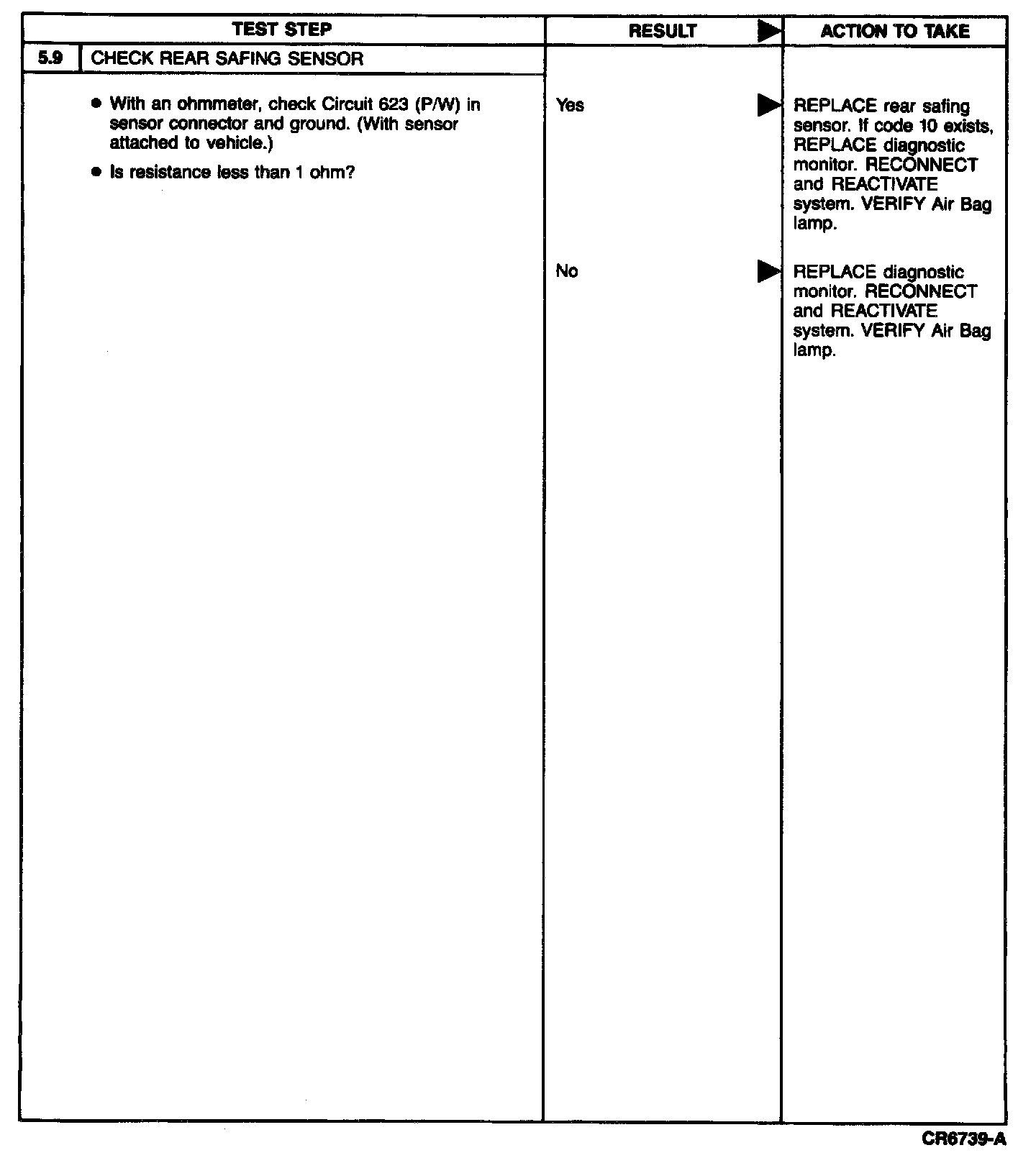

5.9:
