Test 4: Air Bag Lamp Flashes Four Times
Test 4: Air Bag Lamp Flashes Four Times
Probable Fault - Potential Short in
Air Bag
Deployment Circuit

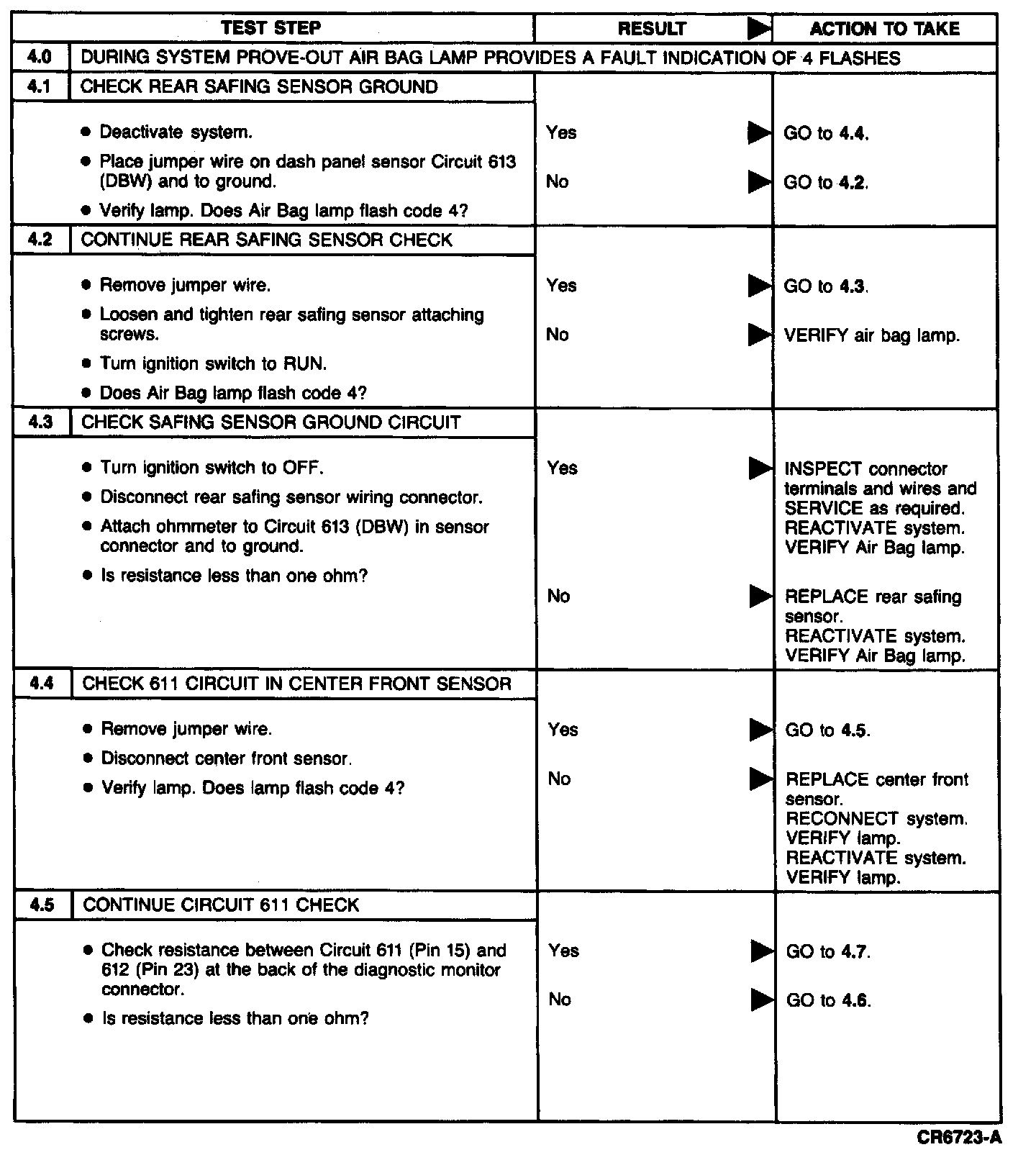

4.0 -- 4.5:

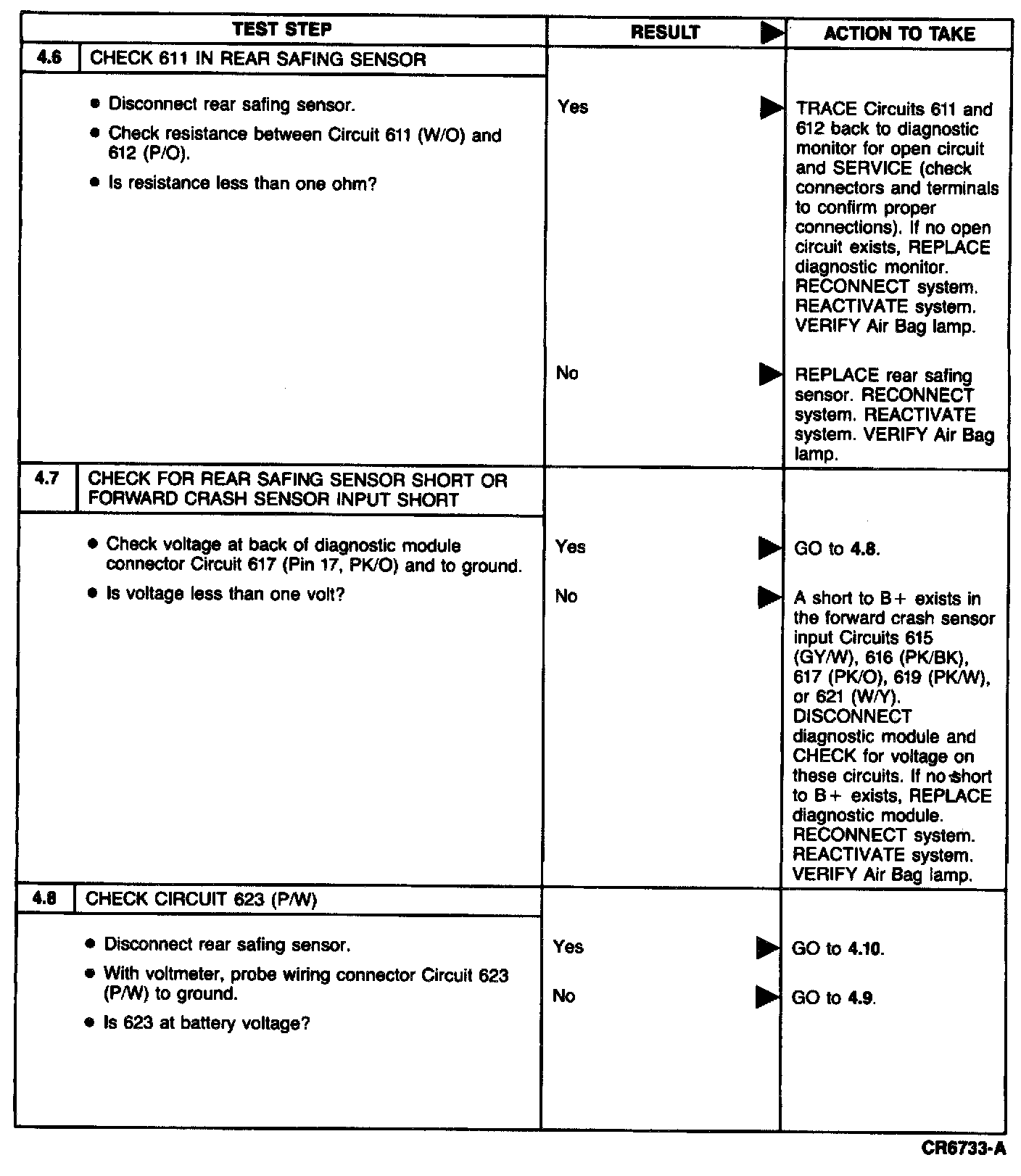

4.6 -- 4.8:

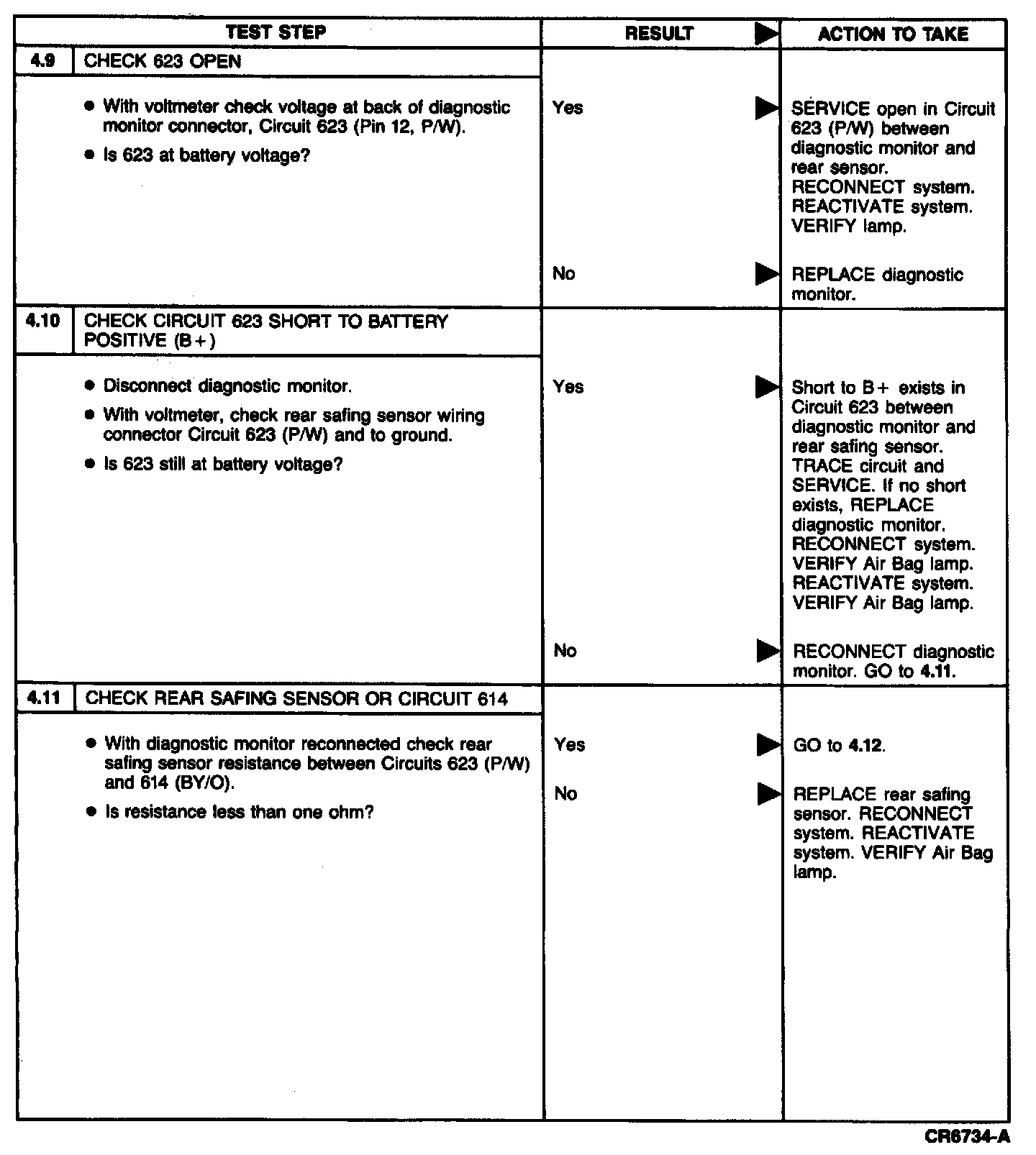

4.9 -- 4.11:

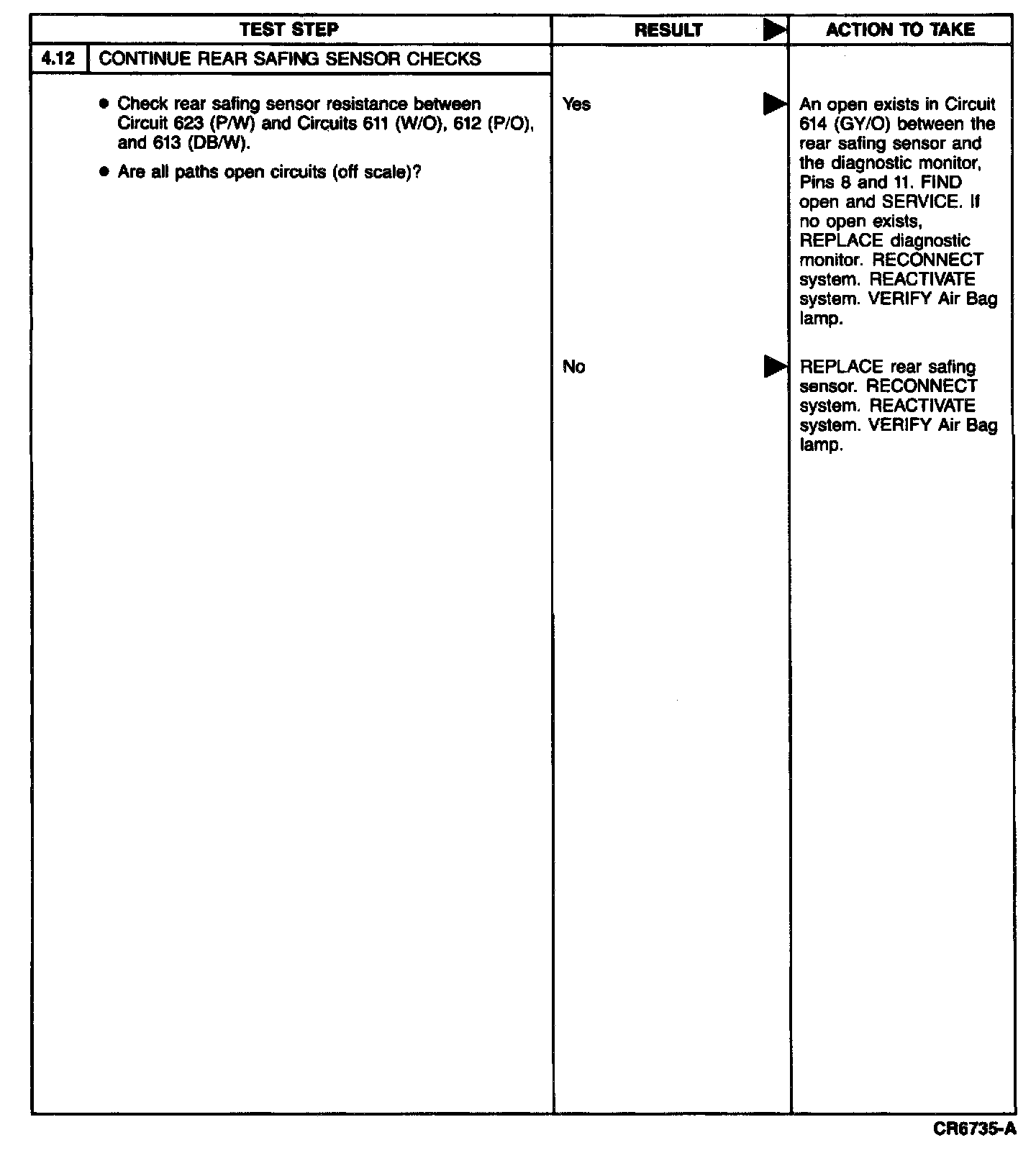

4.12:
