Topaz AWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test 2: Air Bag Lamp Flashes Two Times
Test 2: Air Bag Lamp Flashes Two Times
Probable Fault - All Forward
Crash Sensors
Disconnected

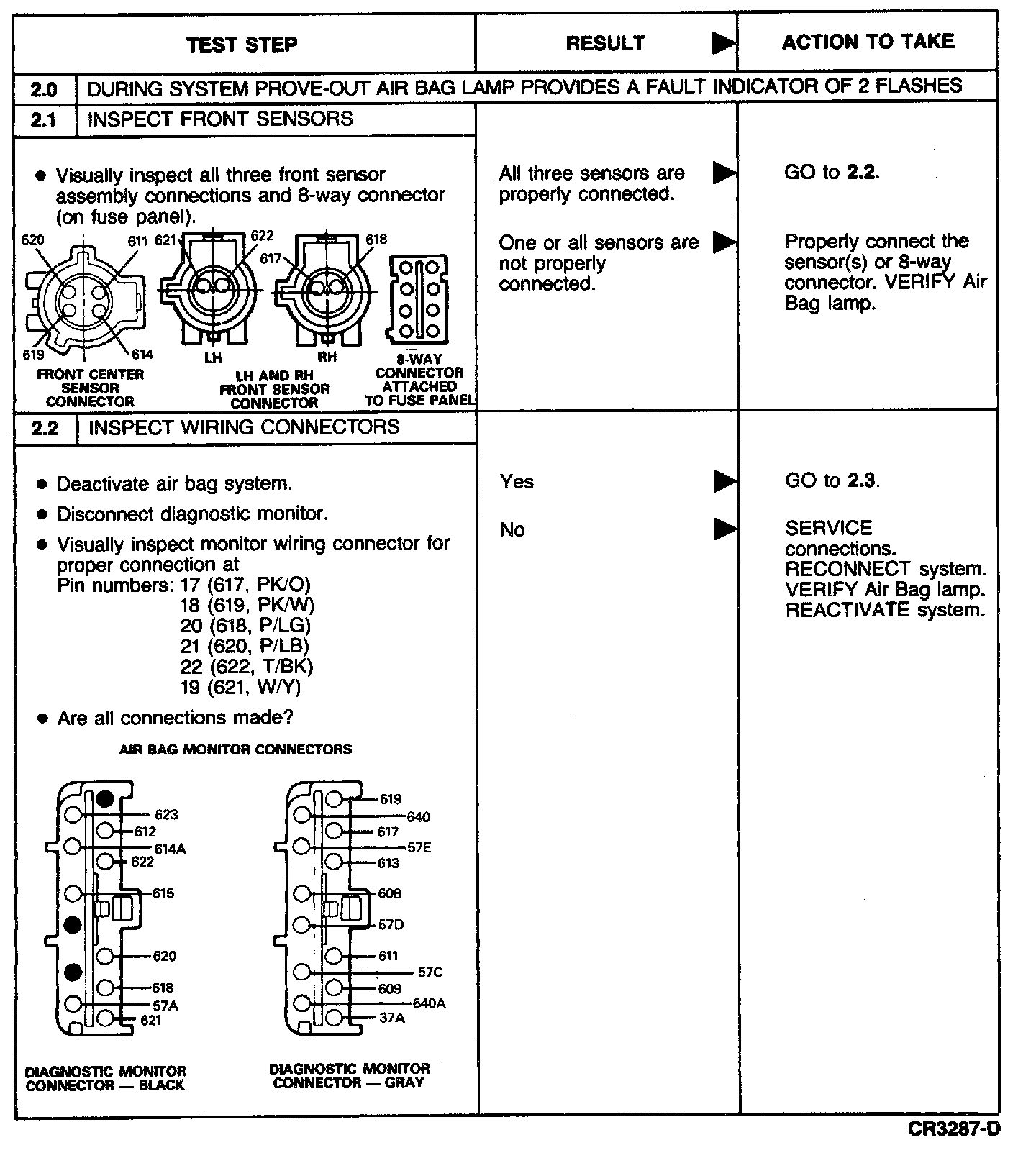

2.0 -- 2.2:

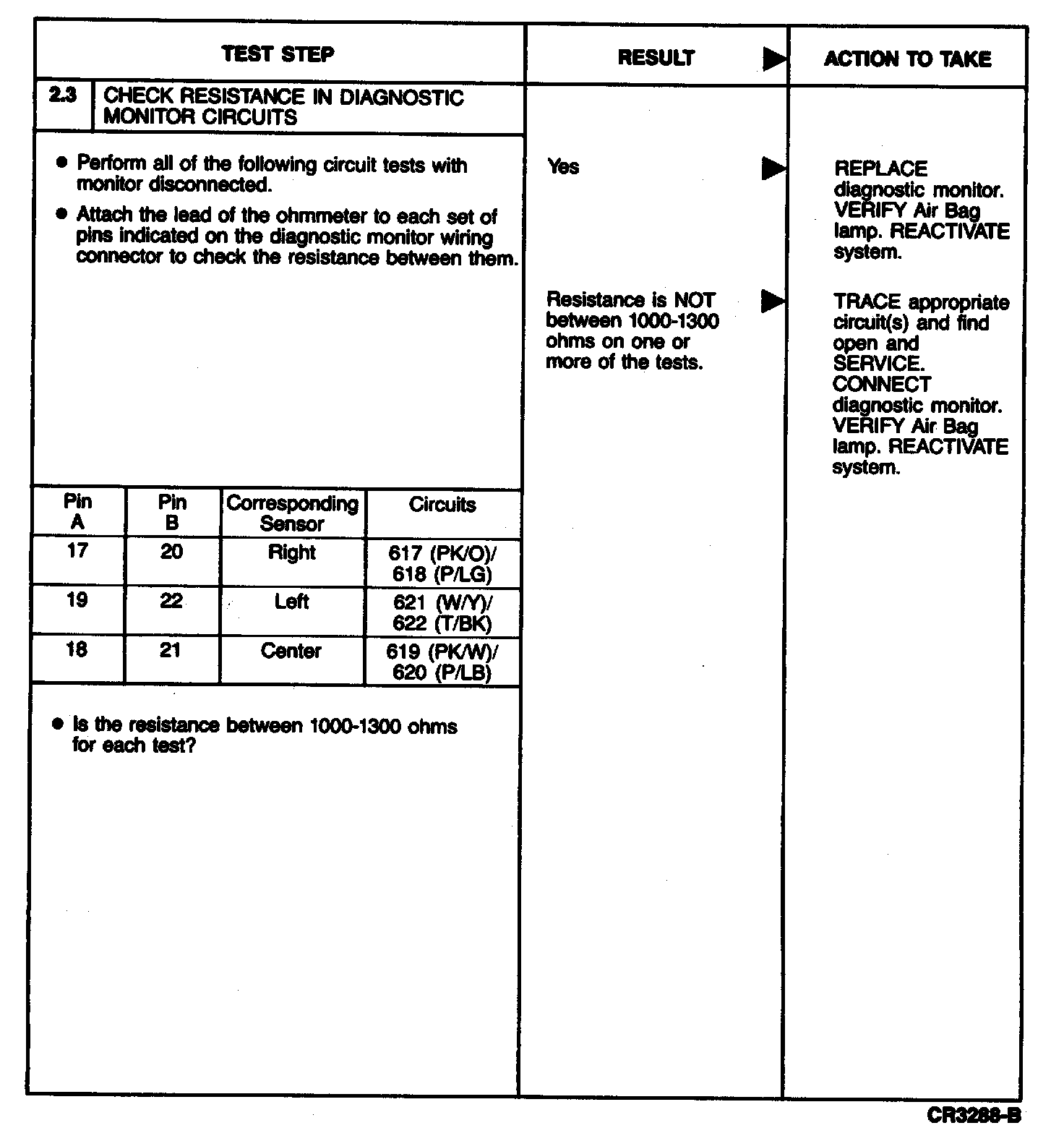

2.3:
