Home >> Mercury >> 1990 >> Topaz AWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Timing Components >> Timing Chain >> Technical Service Bulletins >> Engine Components - Manual Revision >> 1991 Tempo/Topaz, Section 03-01

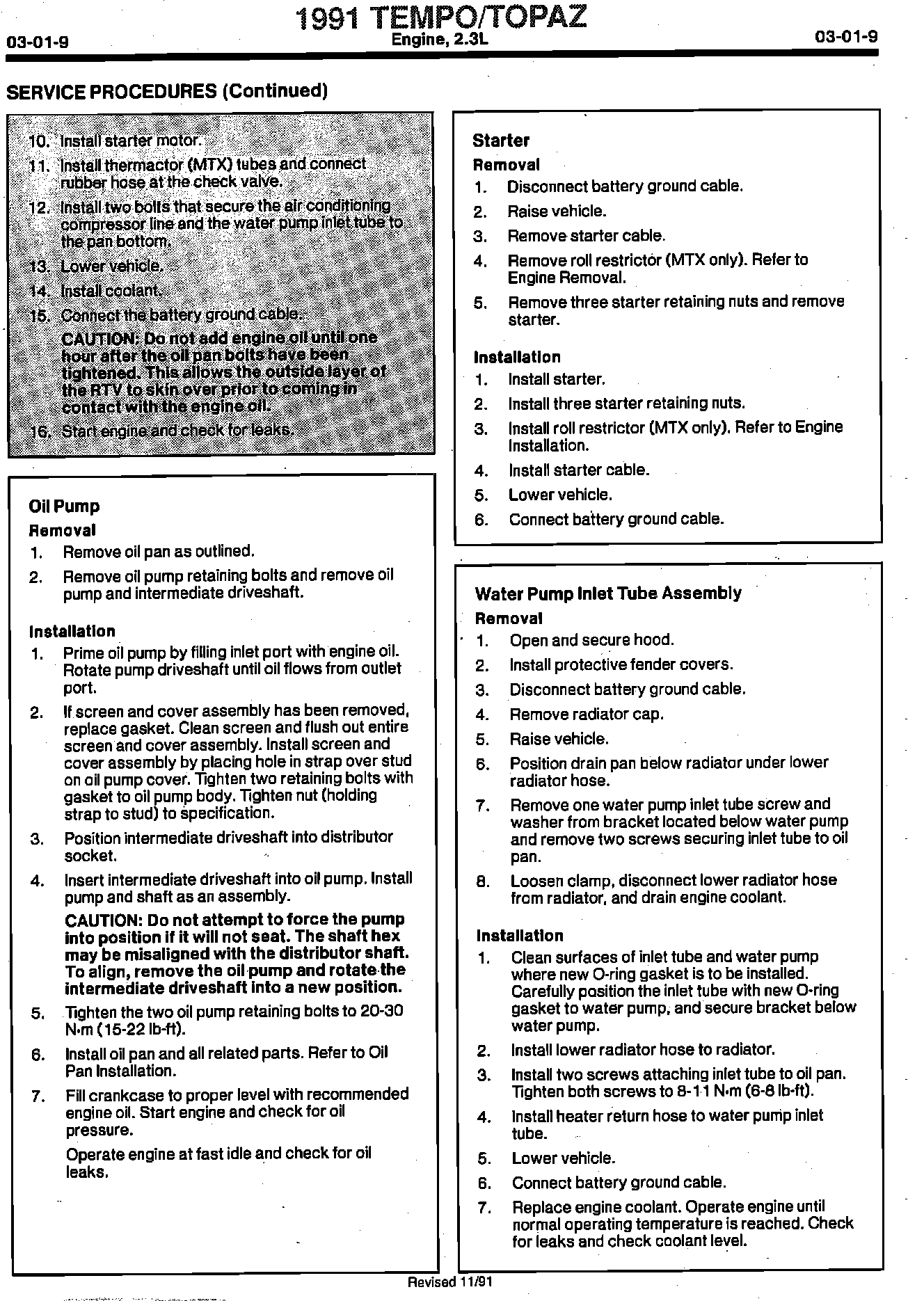

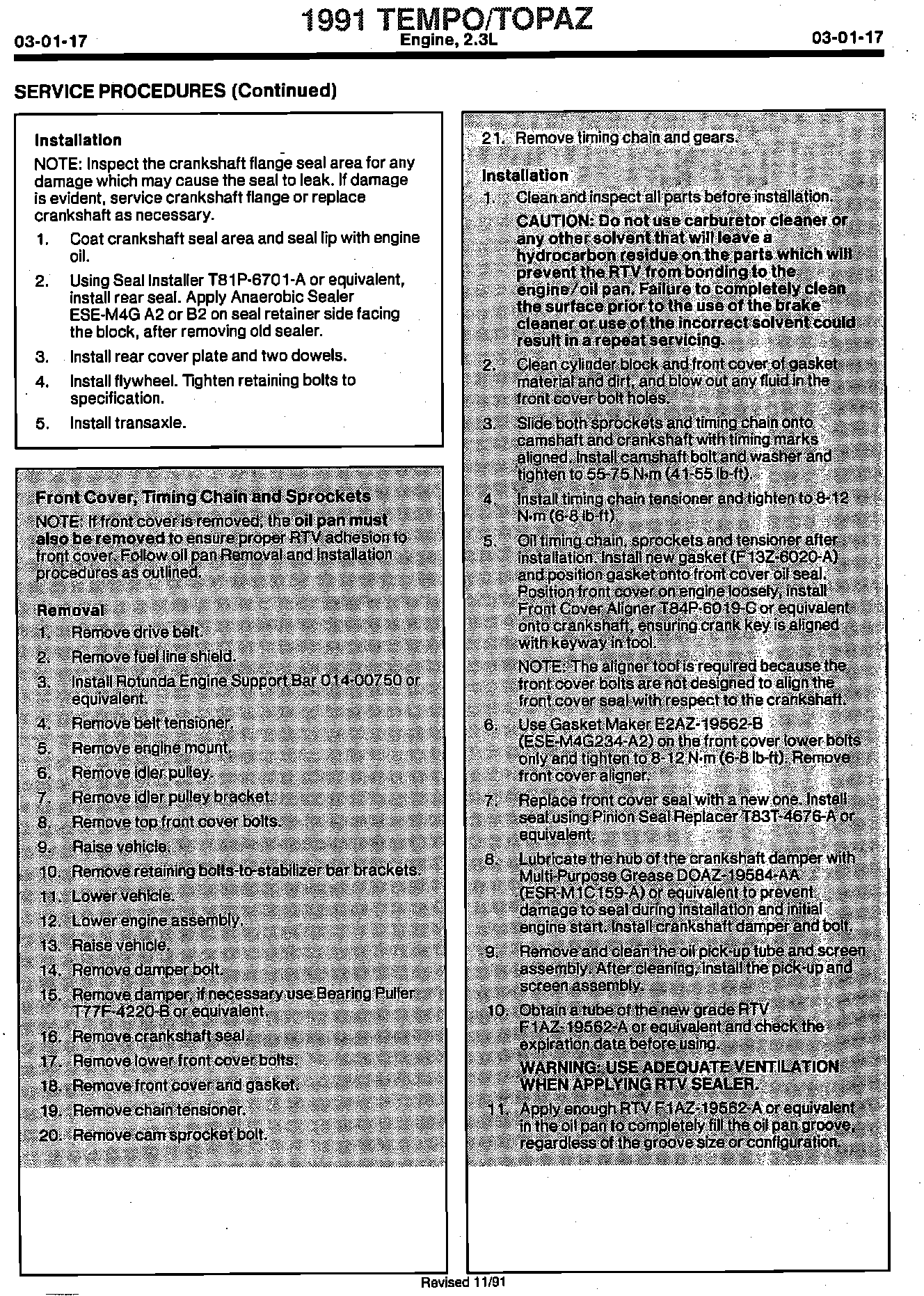

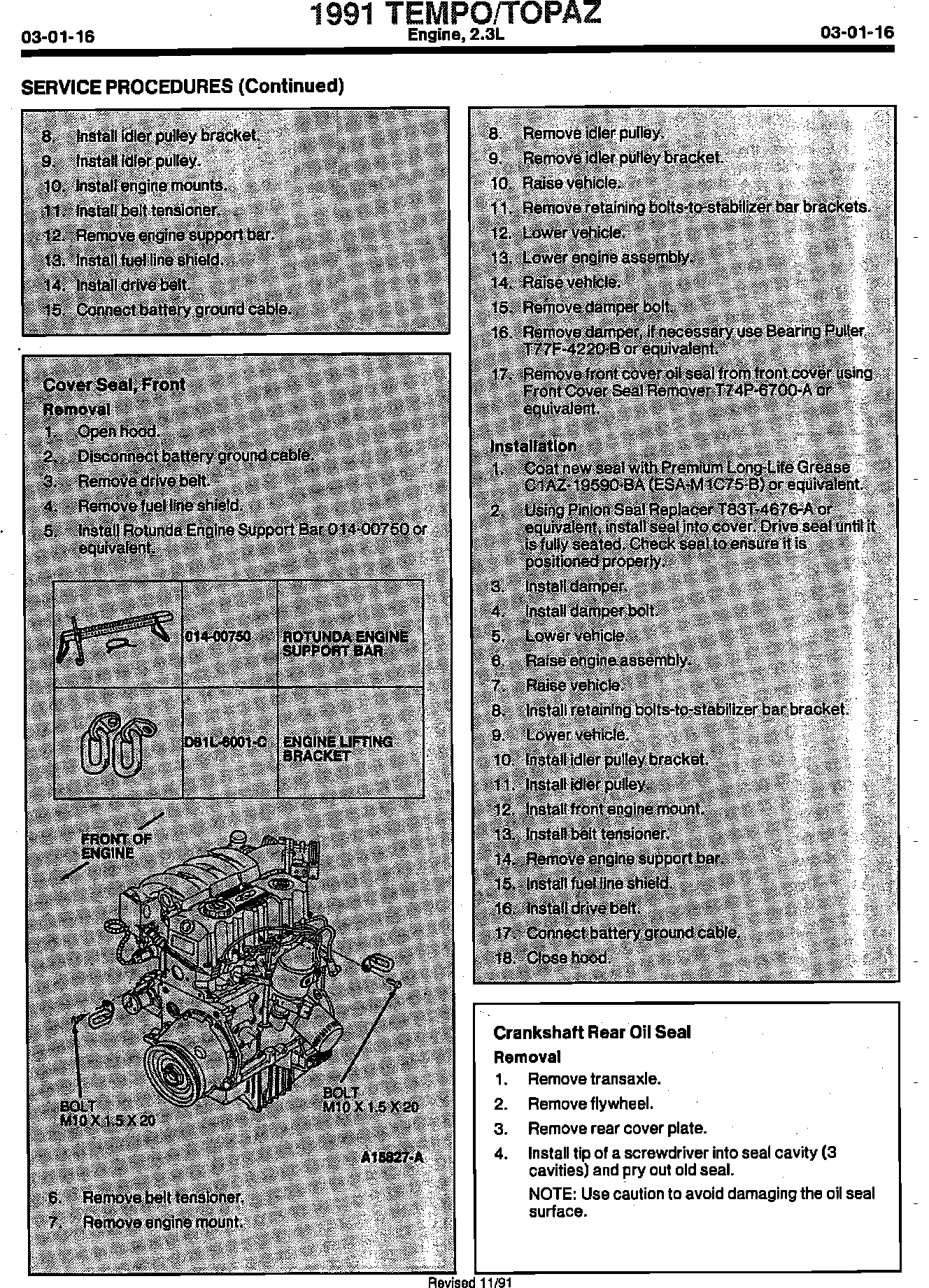

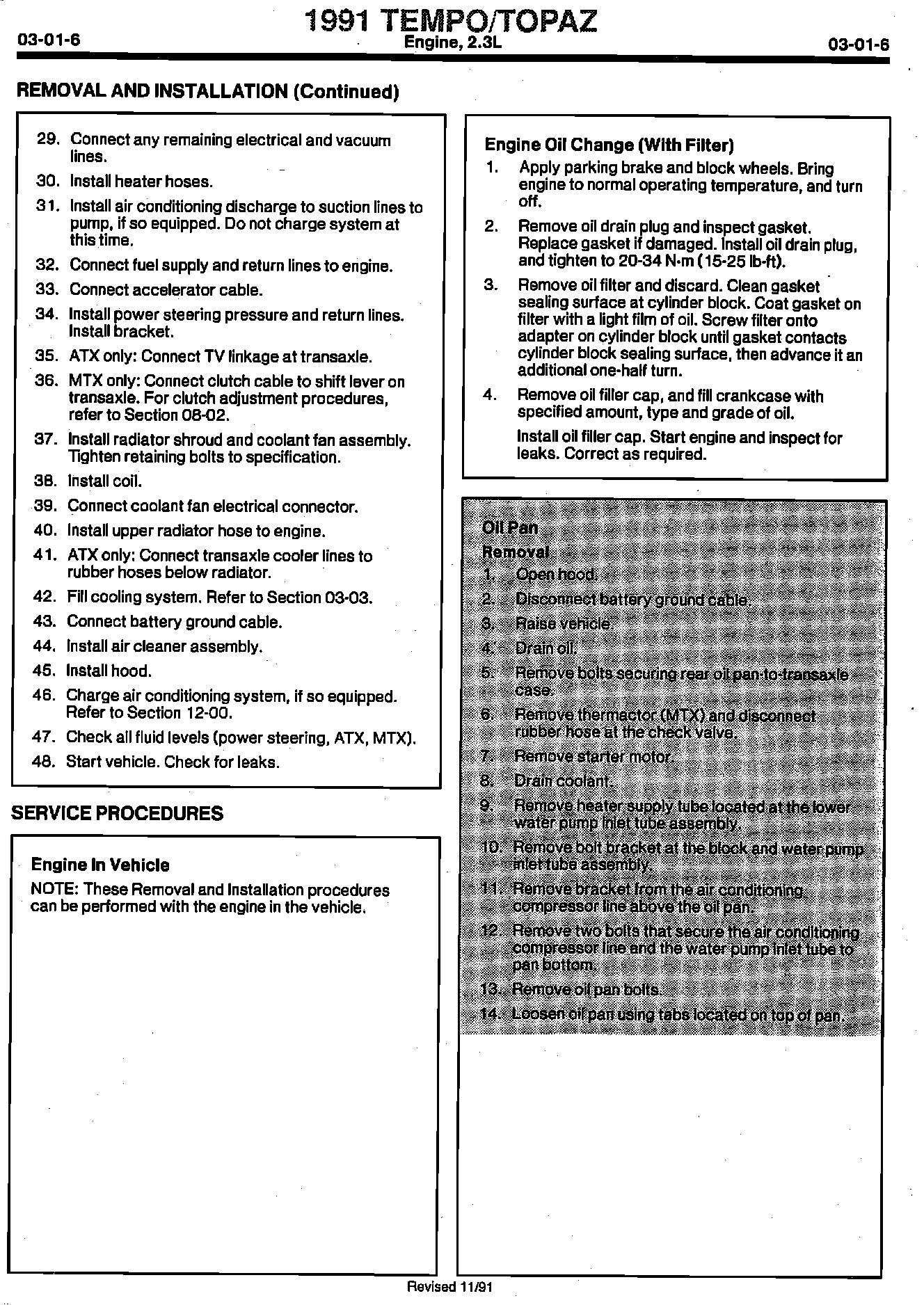

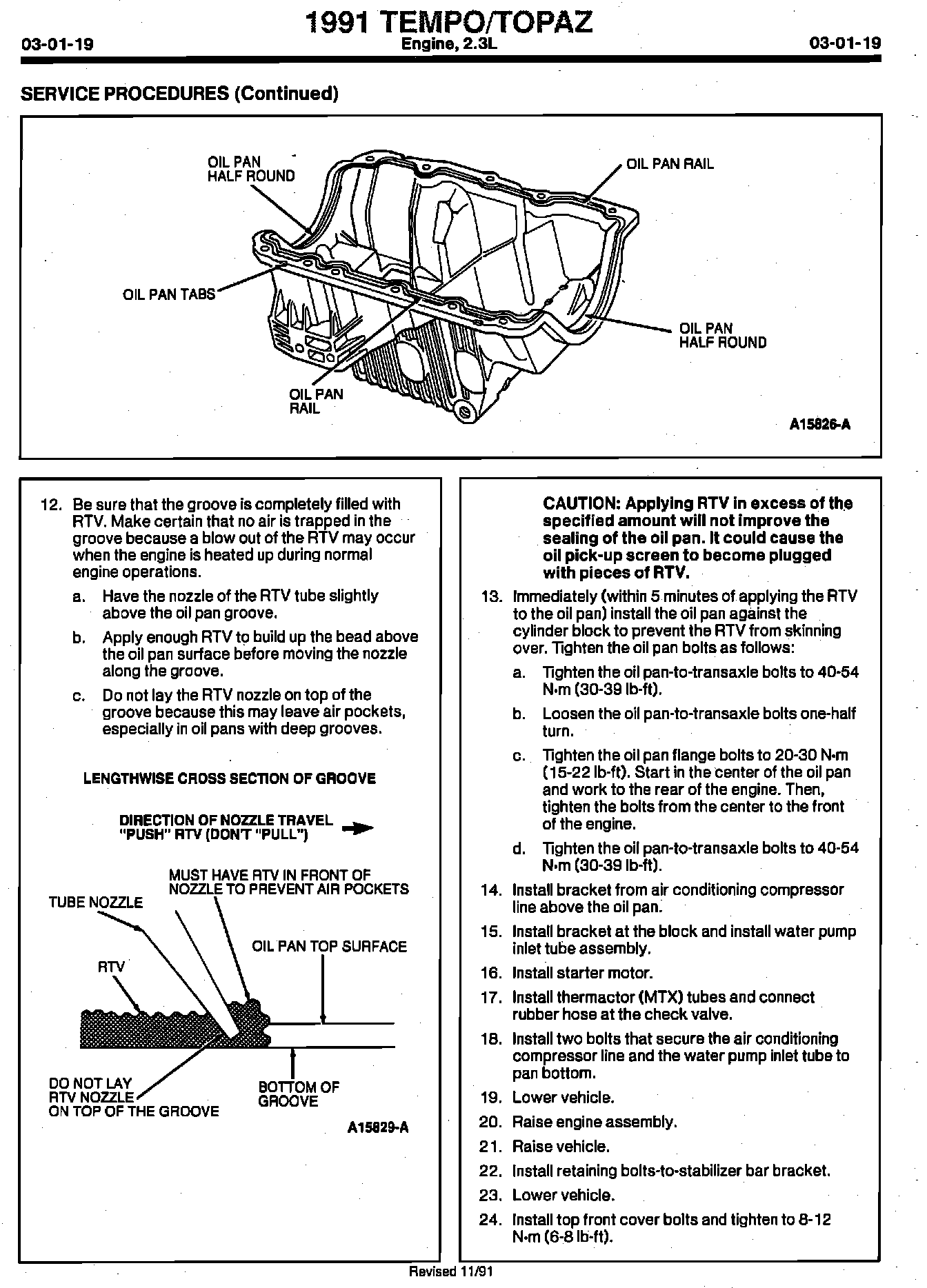

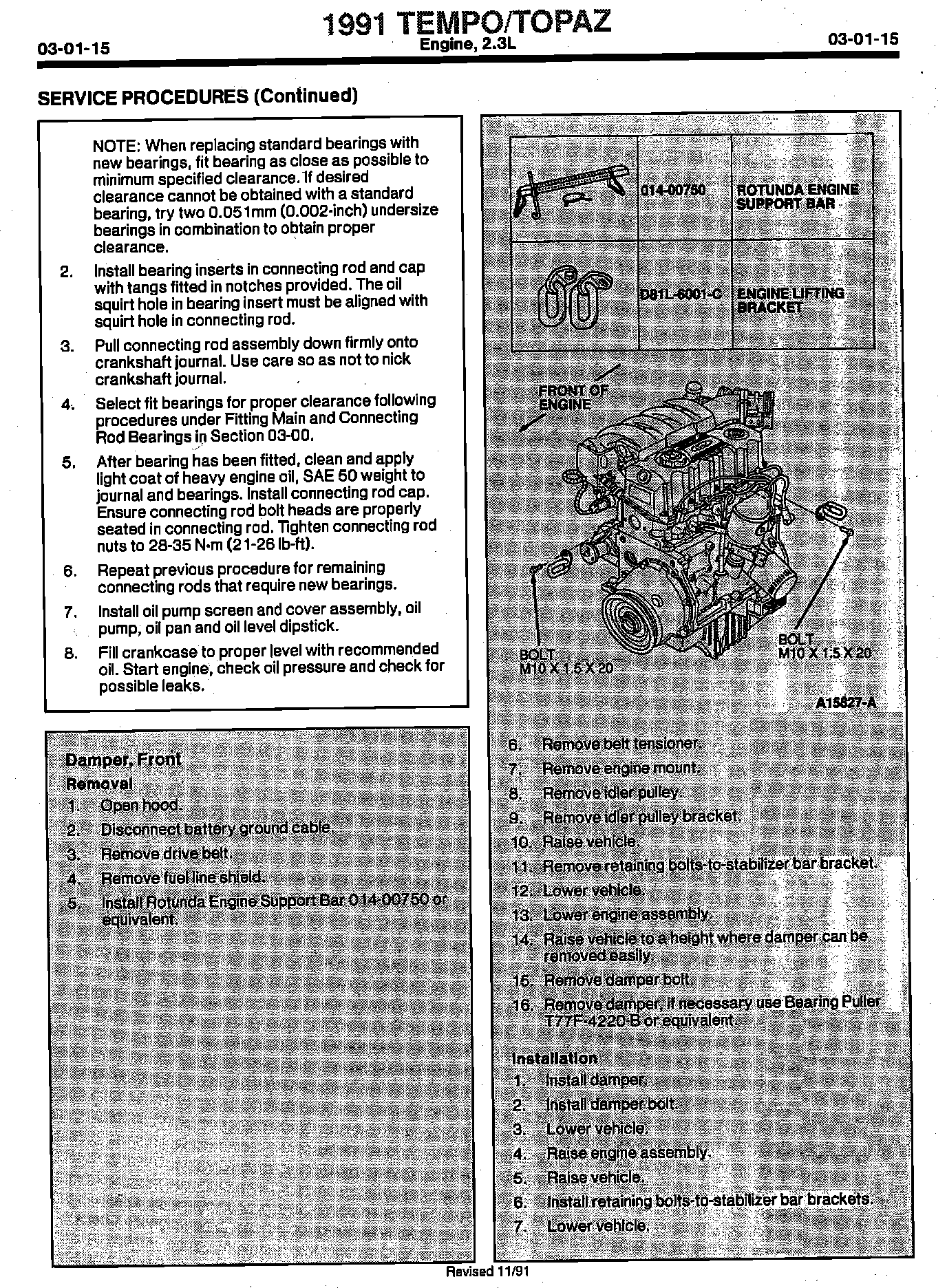

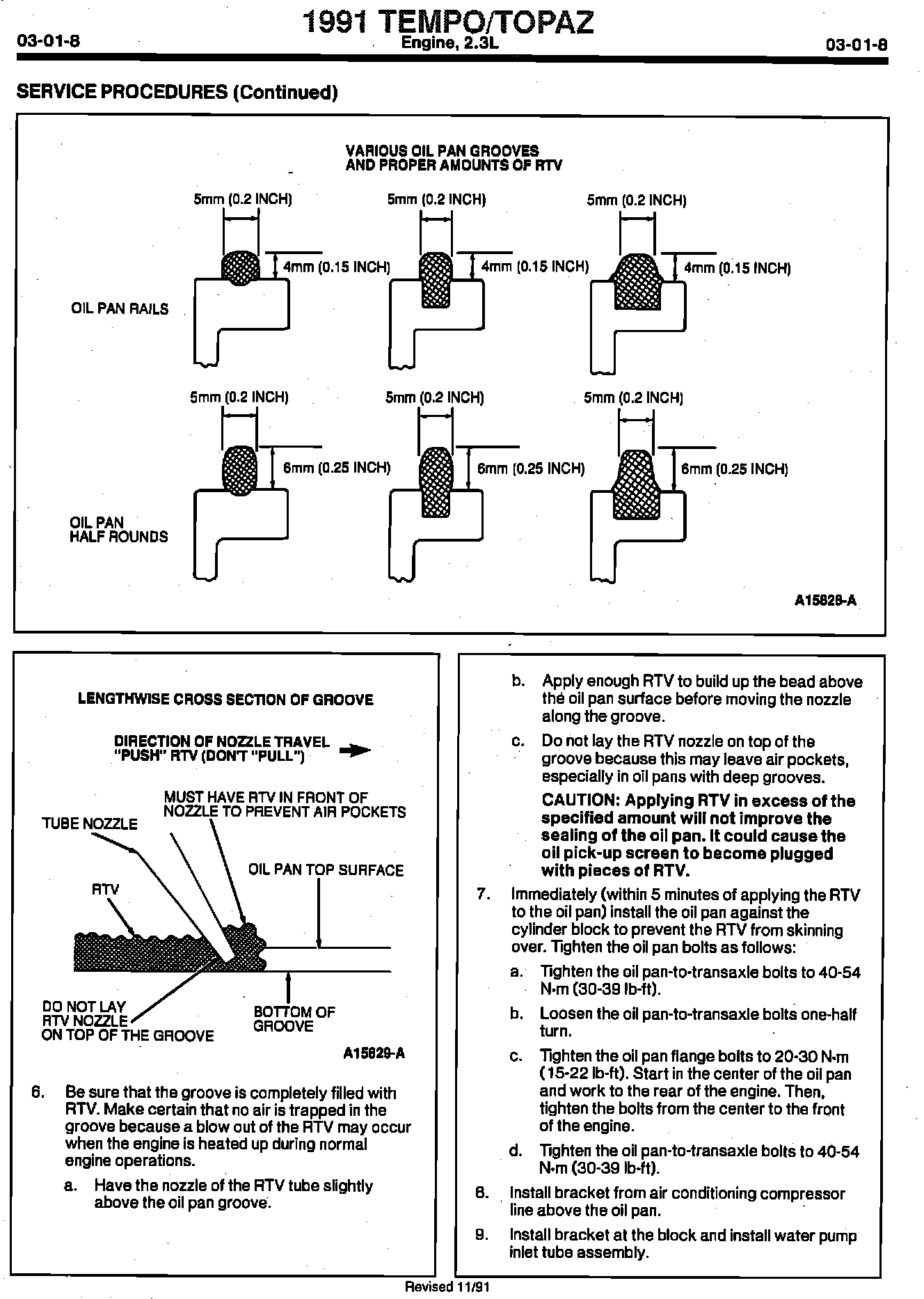

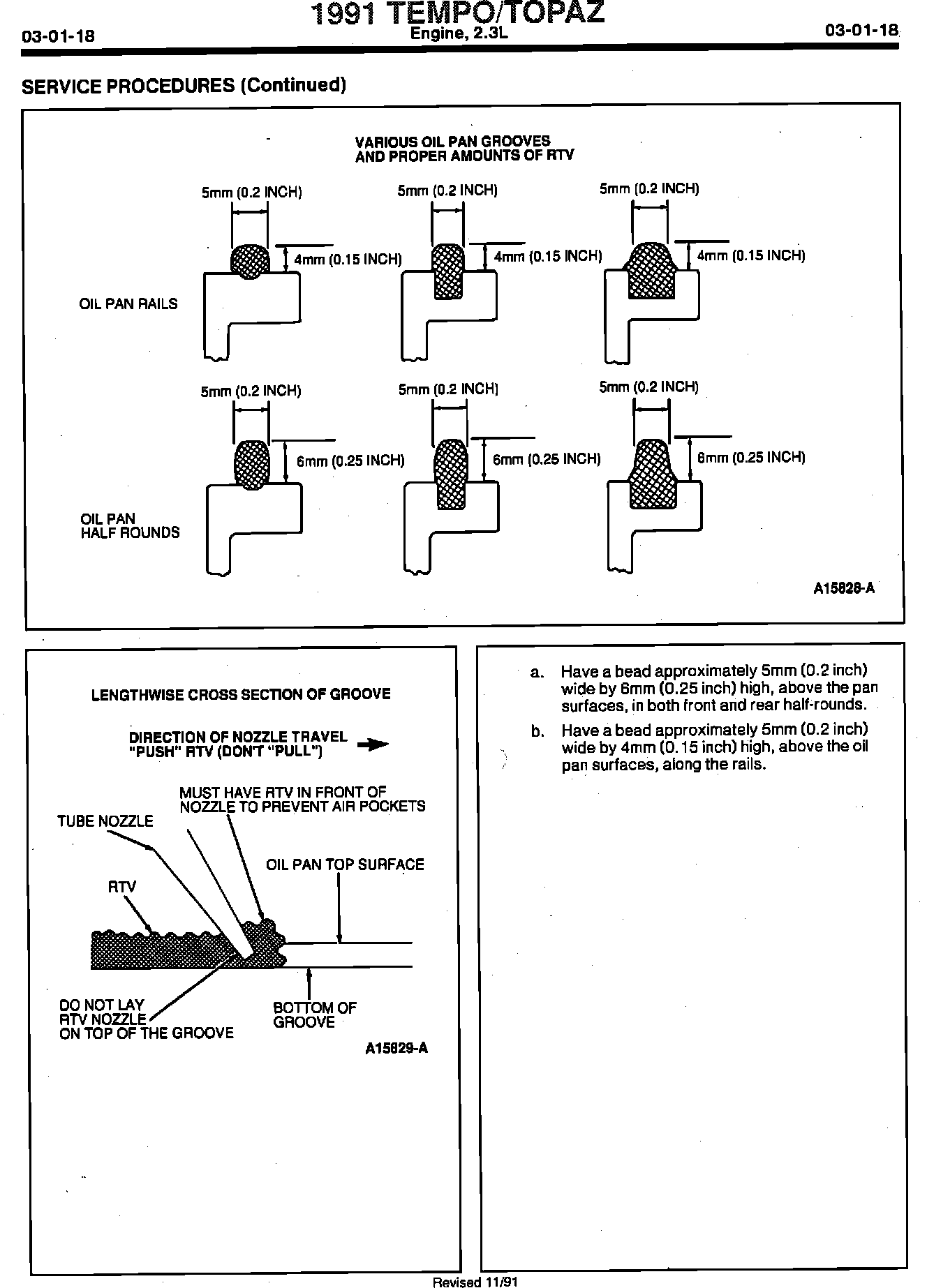

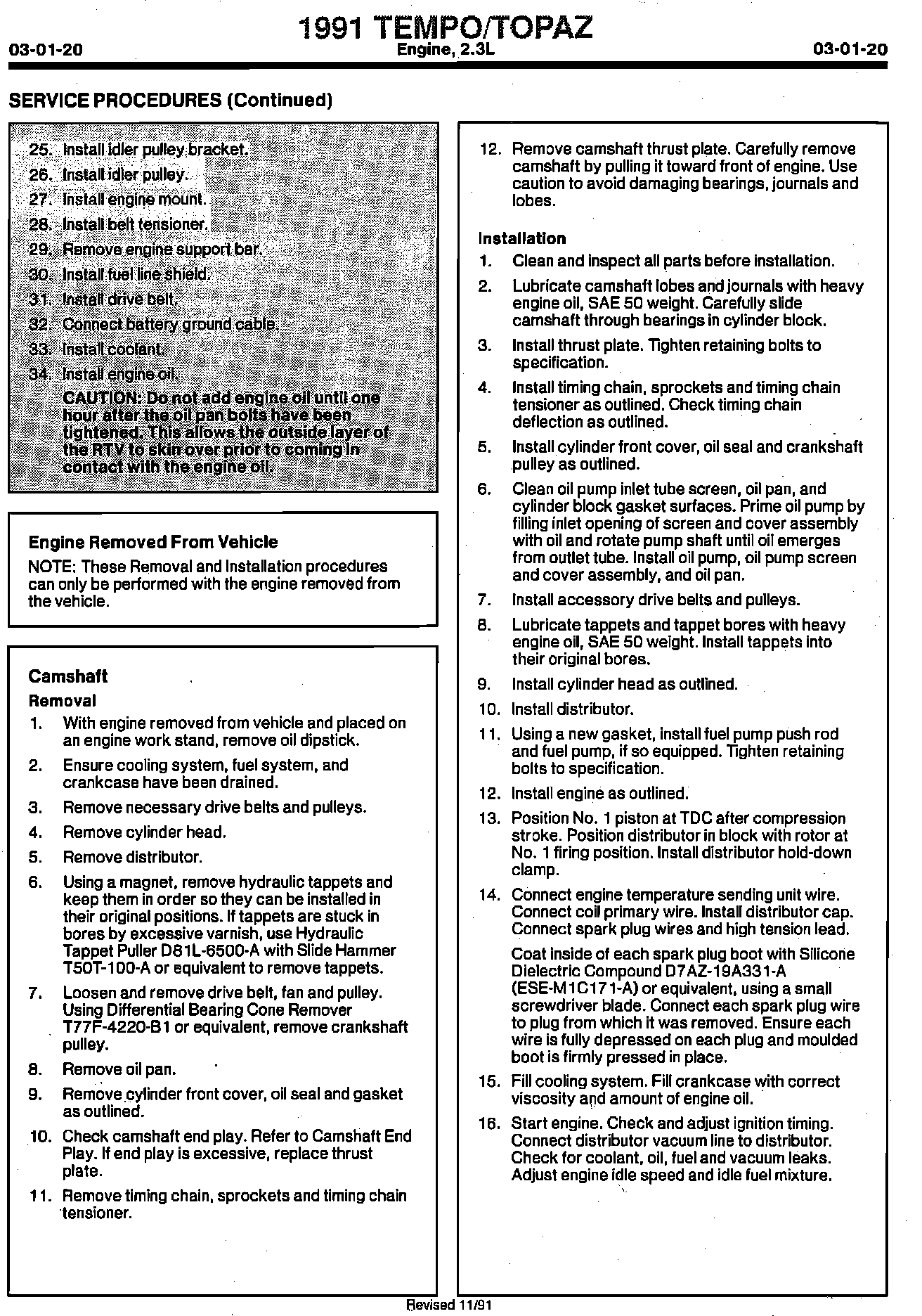

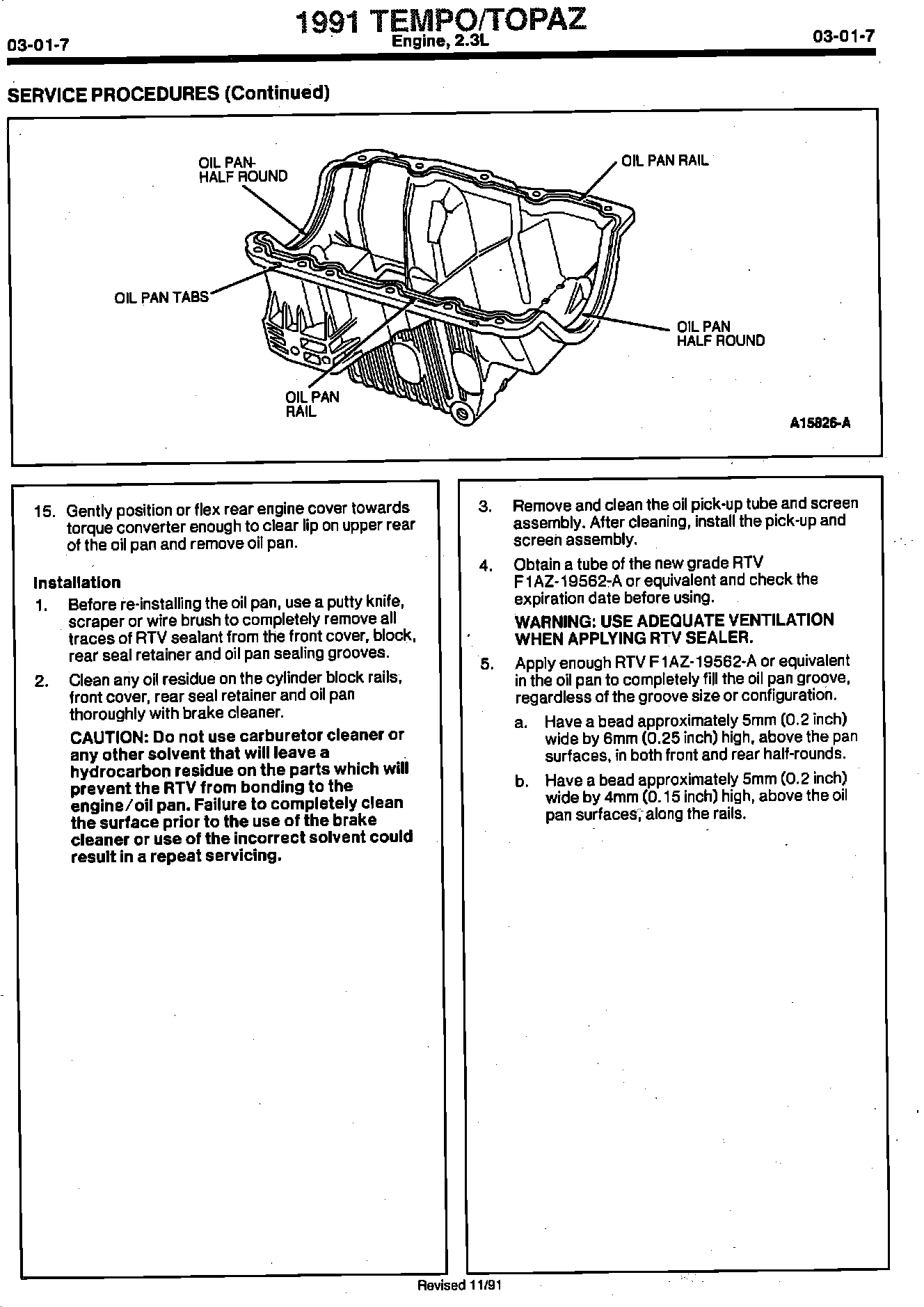

1991 Tempo/Topaz, Section 03-01
































^ 1991 Tempo/Topaz, Section 03-01
