Home >> Mercury >> 1990 >> Topaz AWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Timing Components >> Timing Chain >> Technical Service Bulletins >> Engine Components - Manual Revision >> 1987 - 1990 Tempo/Topaz/Escort, Section 21-08

1987 - 1990 Tempo/Topaz/Escort, Section 21-08

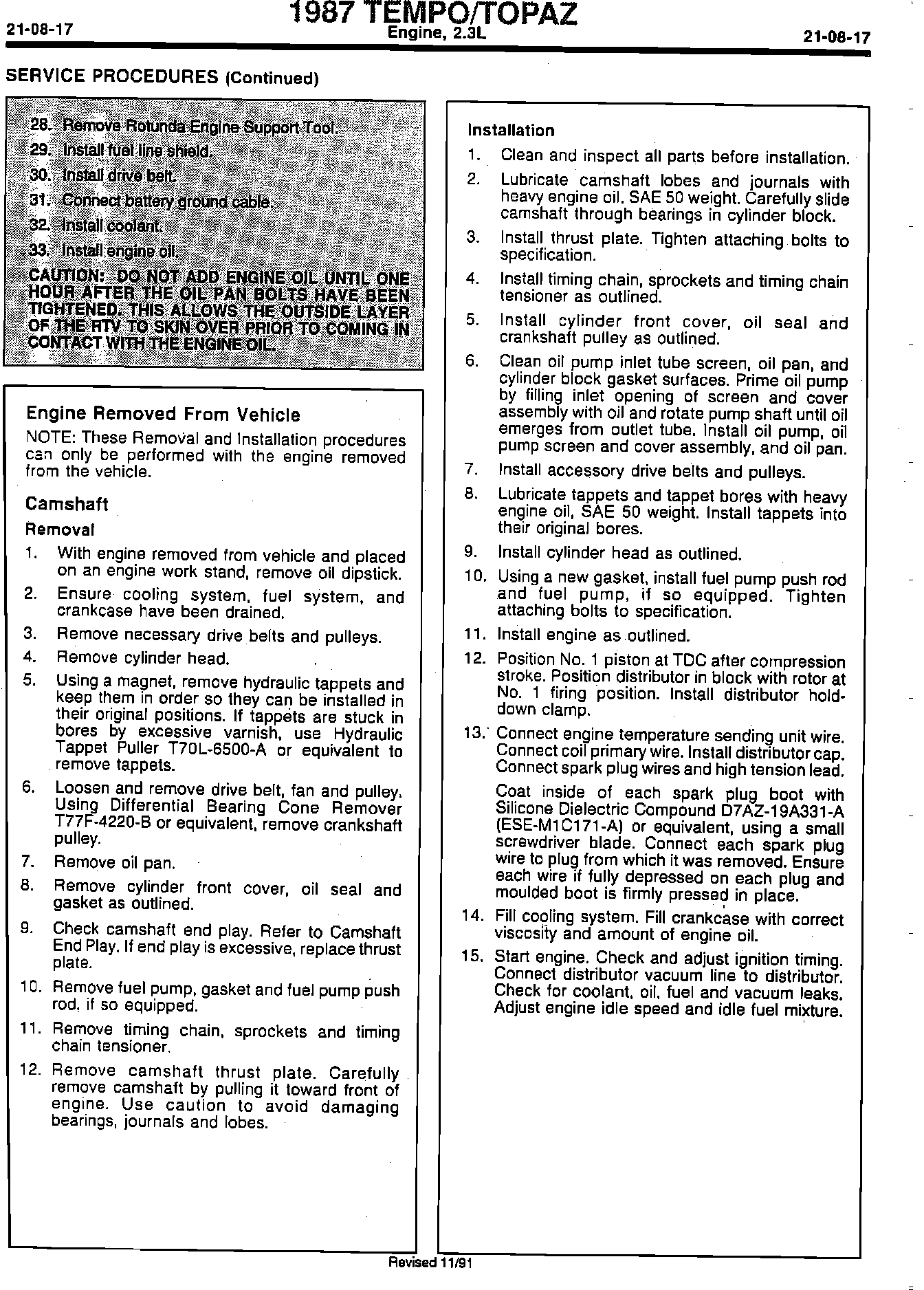

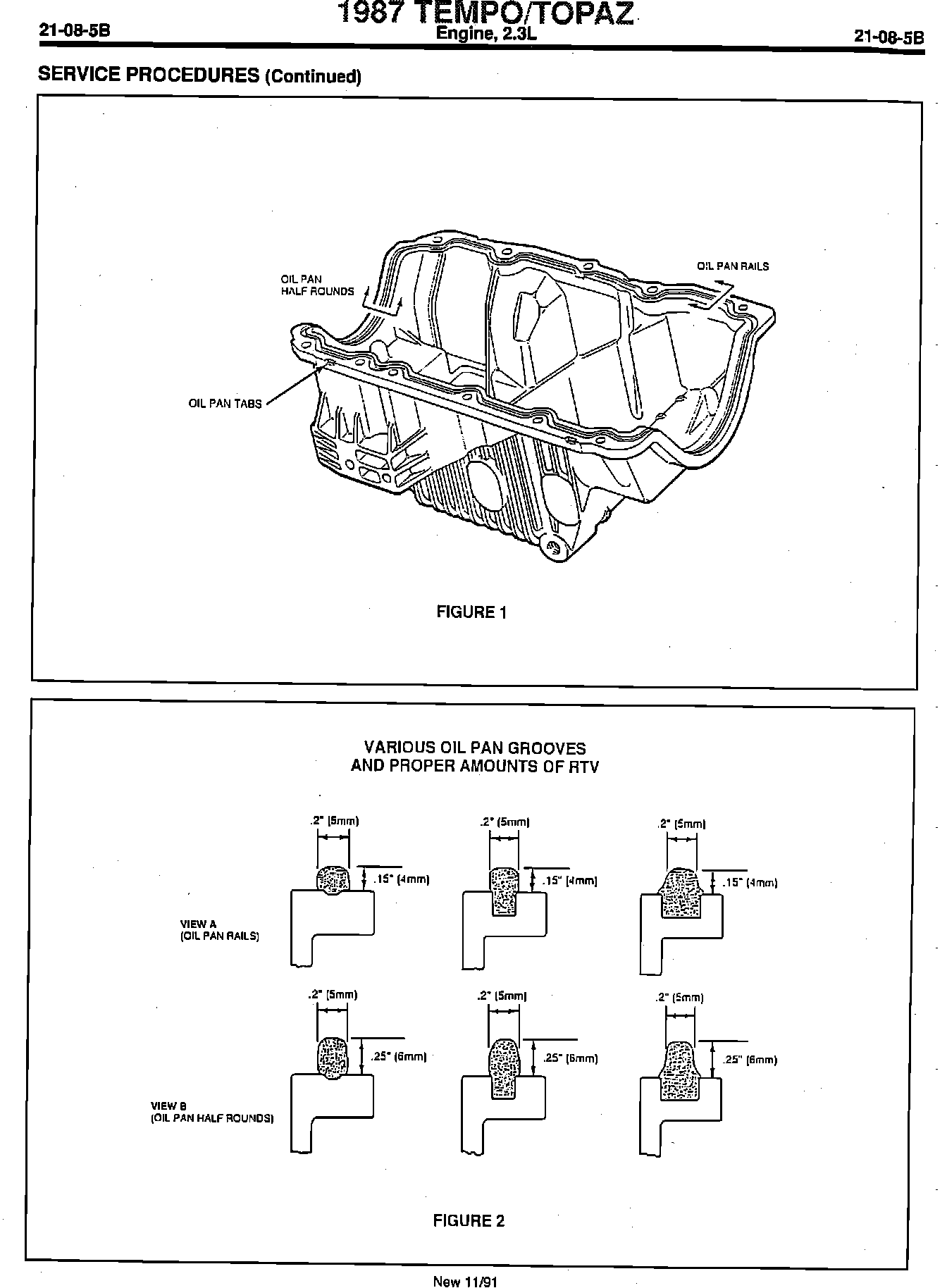

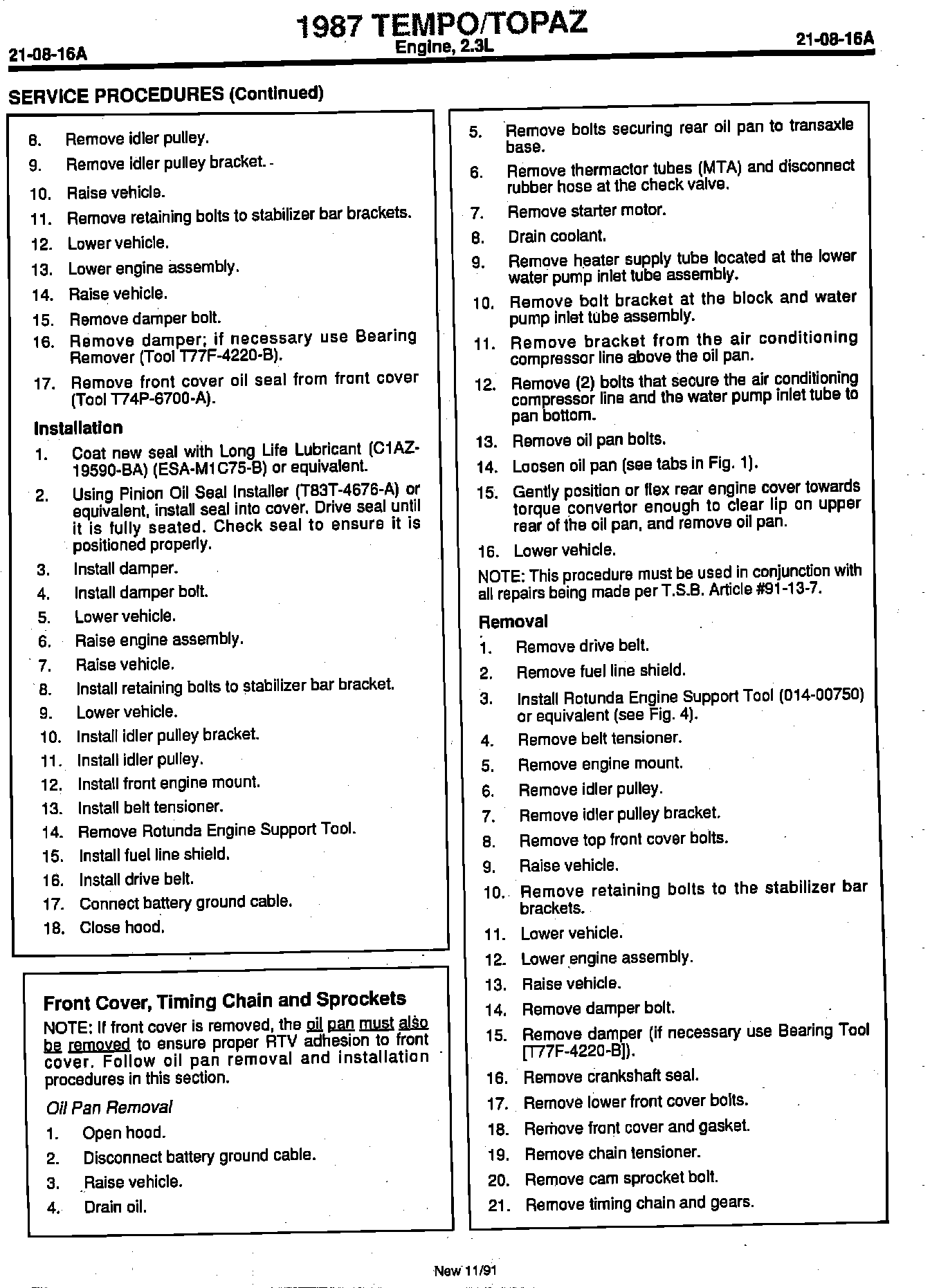

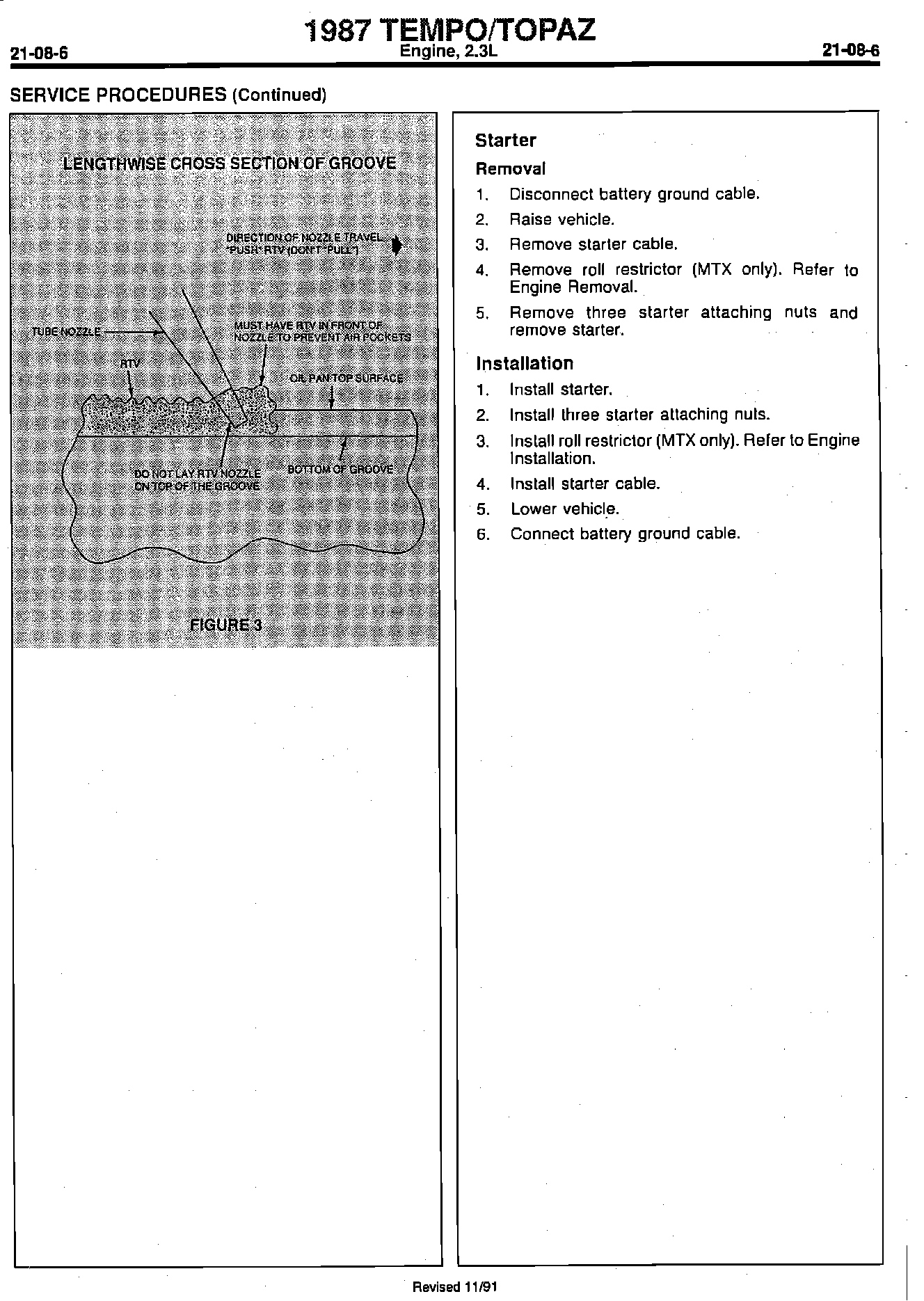

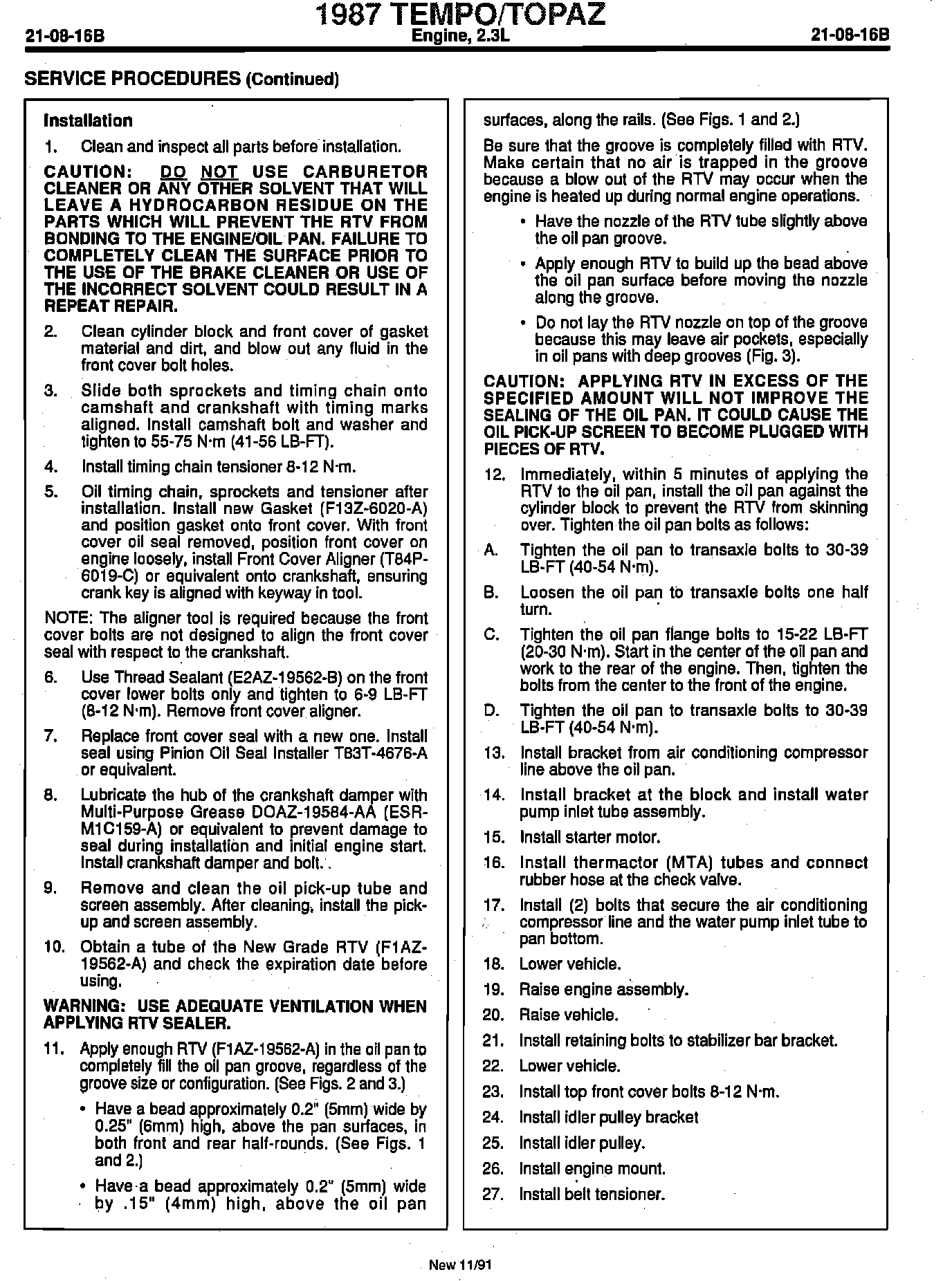

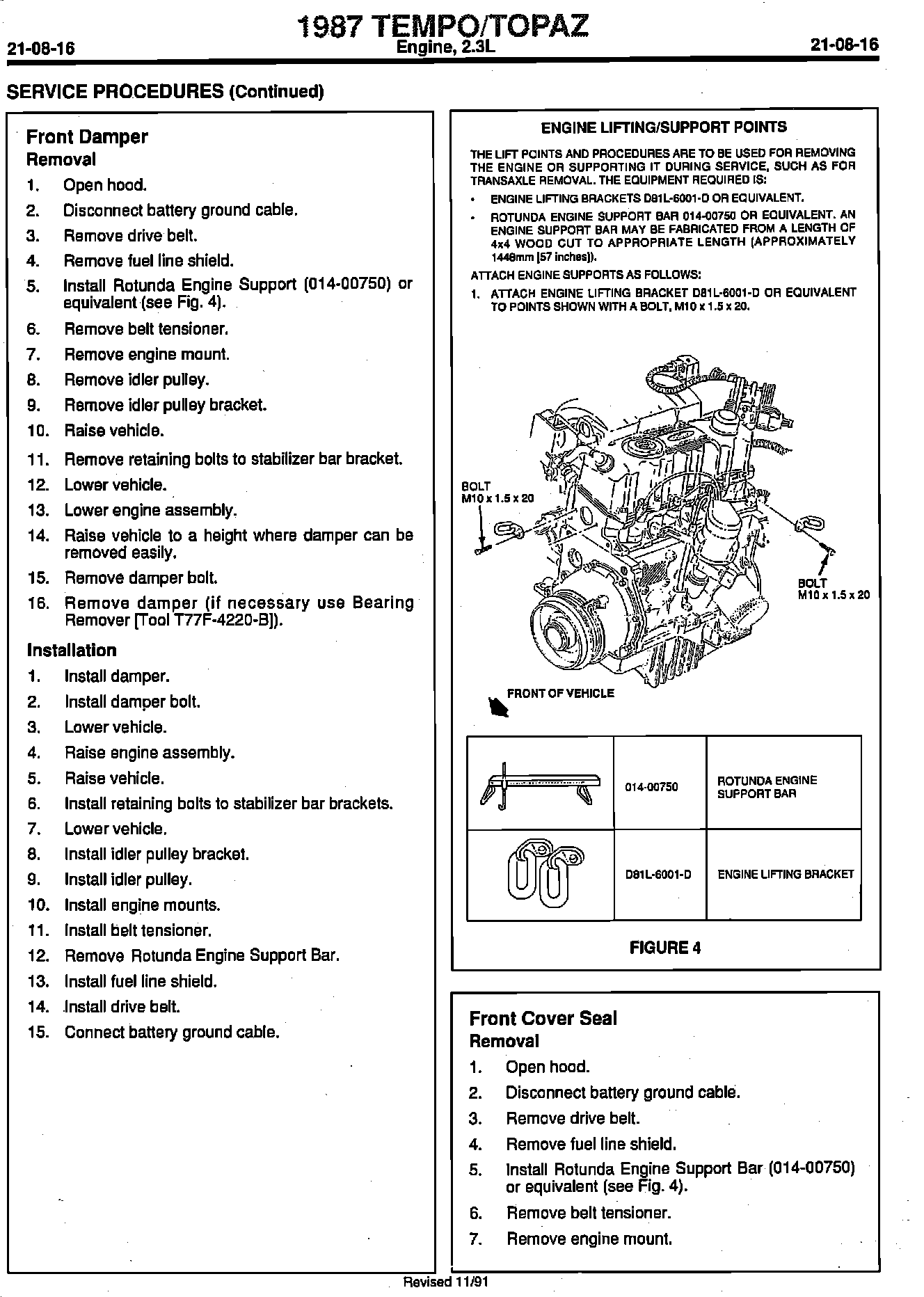

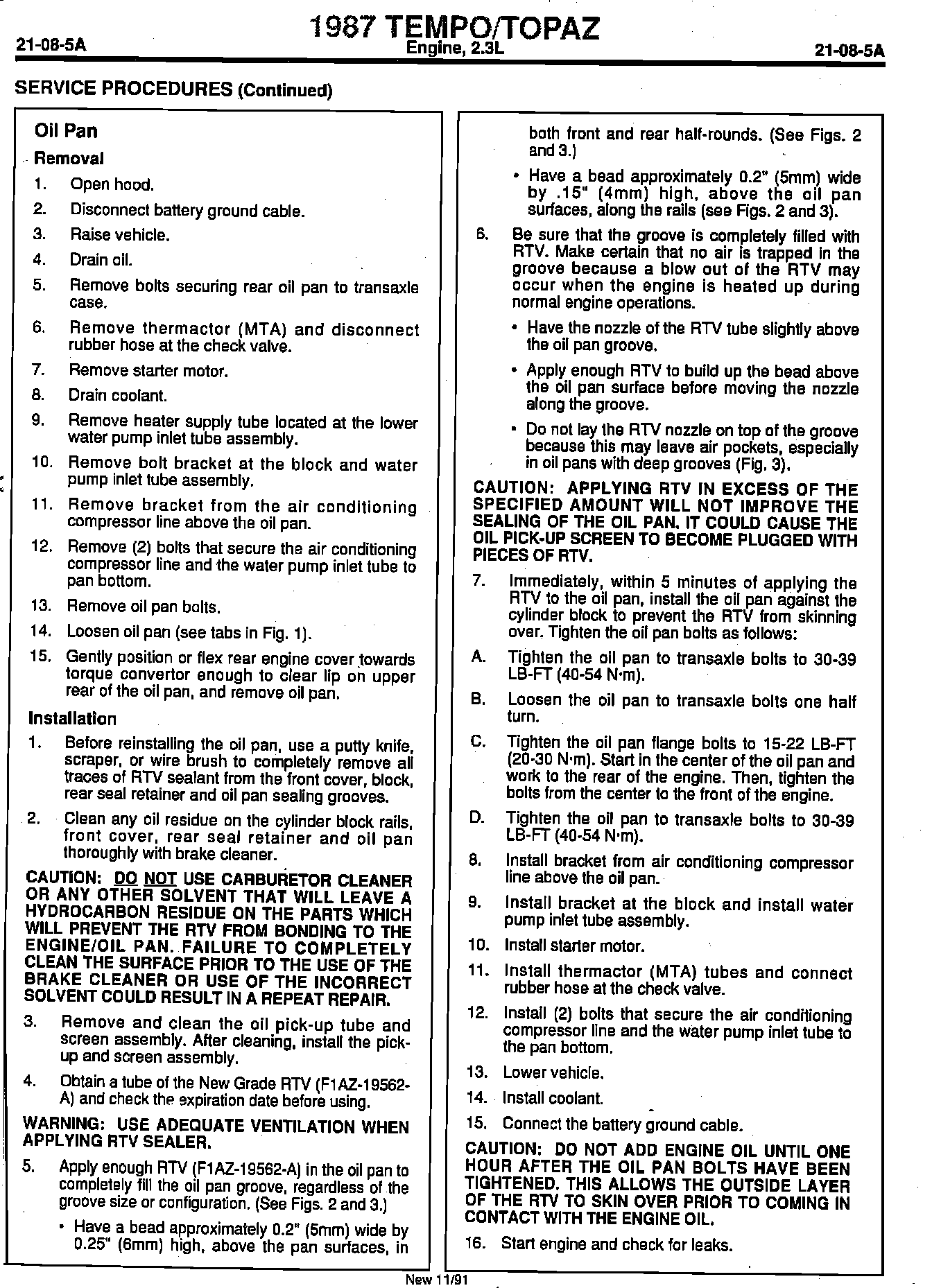

^ 1987 Tempo/Topaz/Escort, Section 21-08

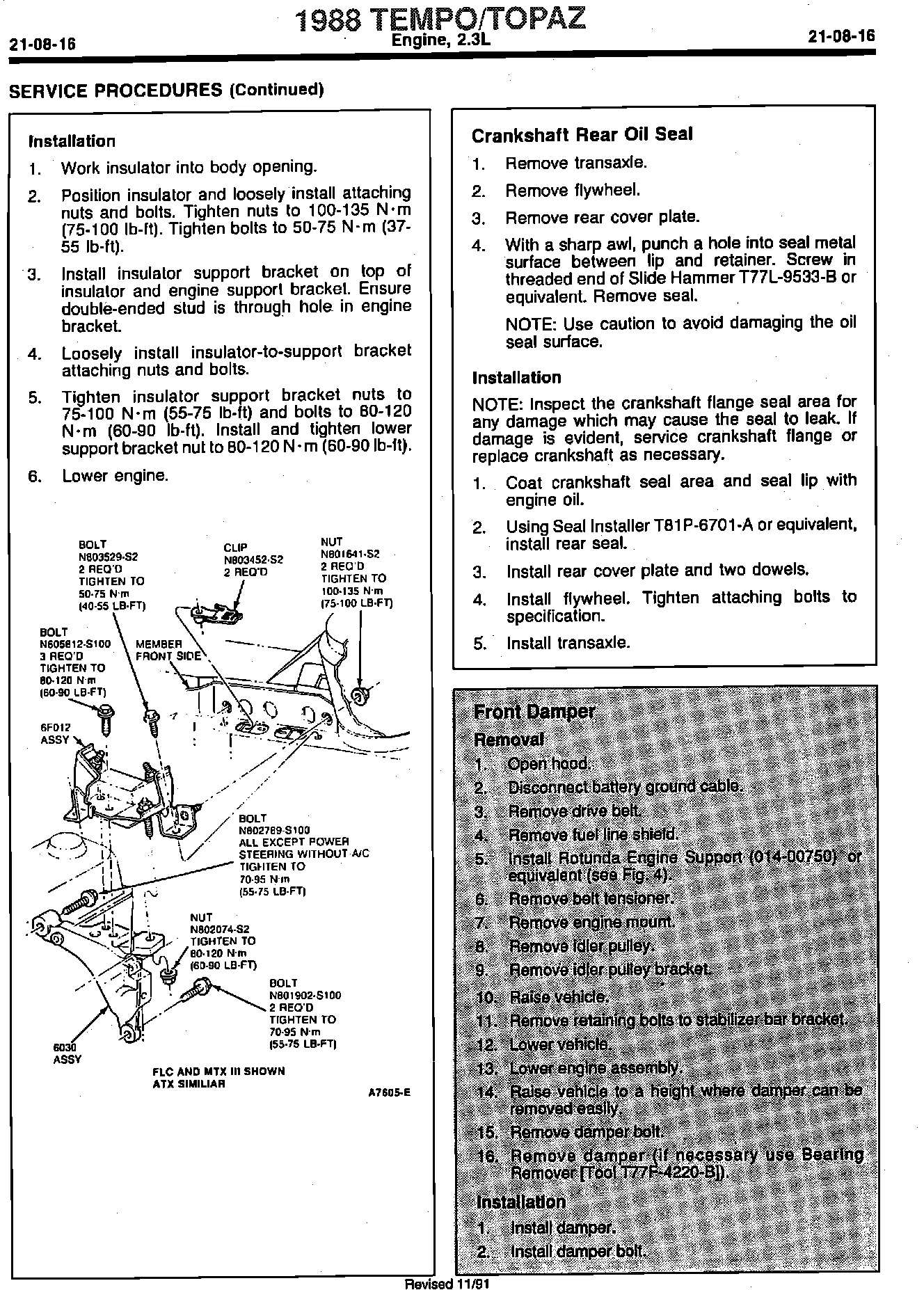

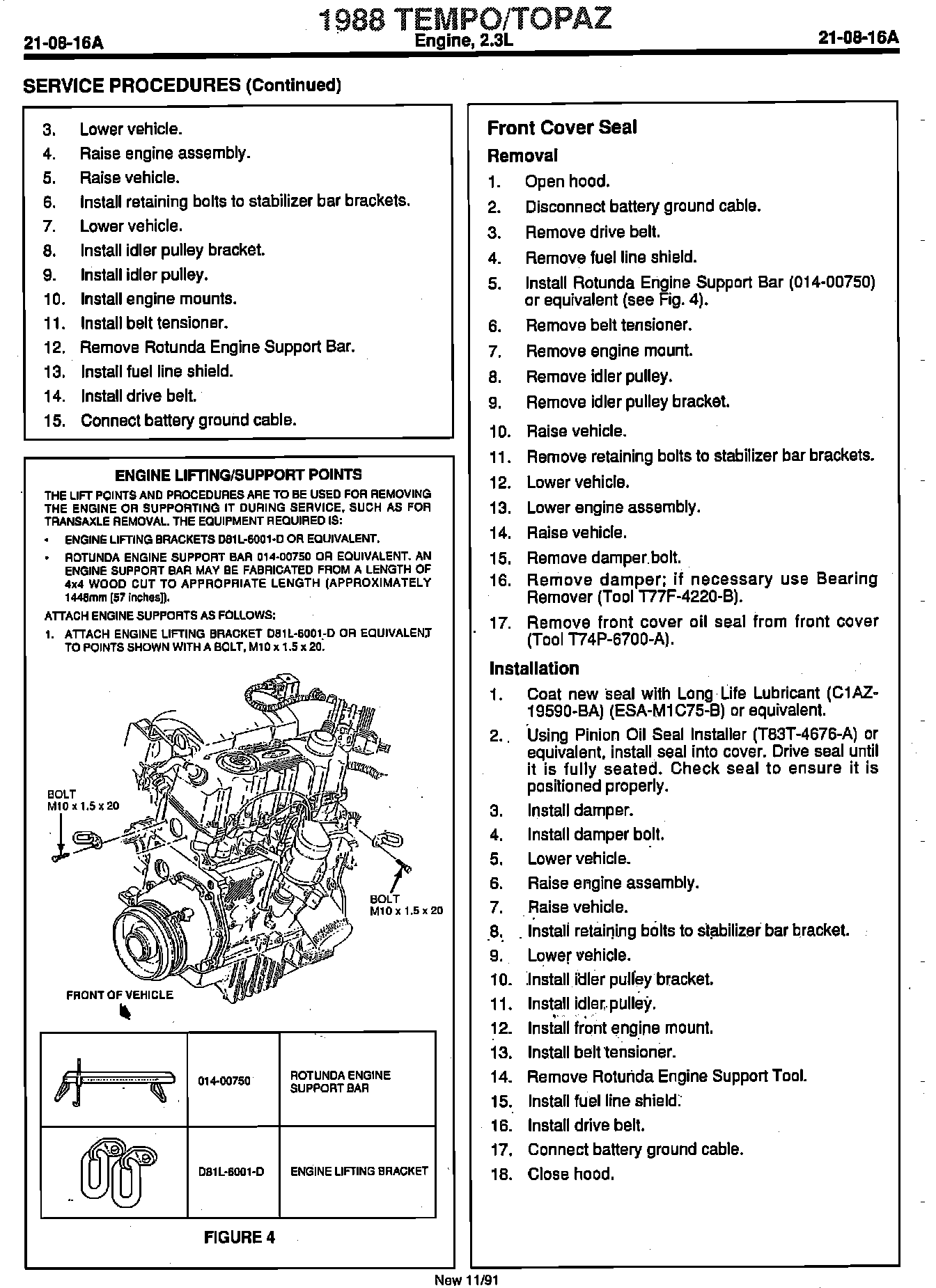

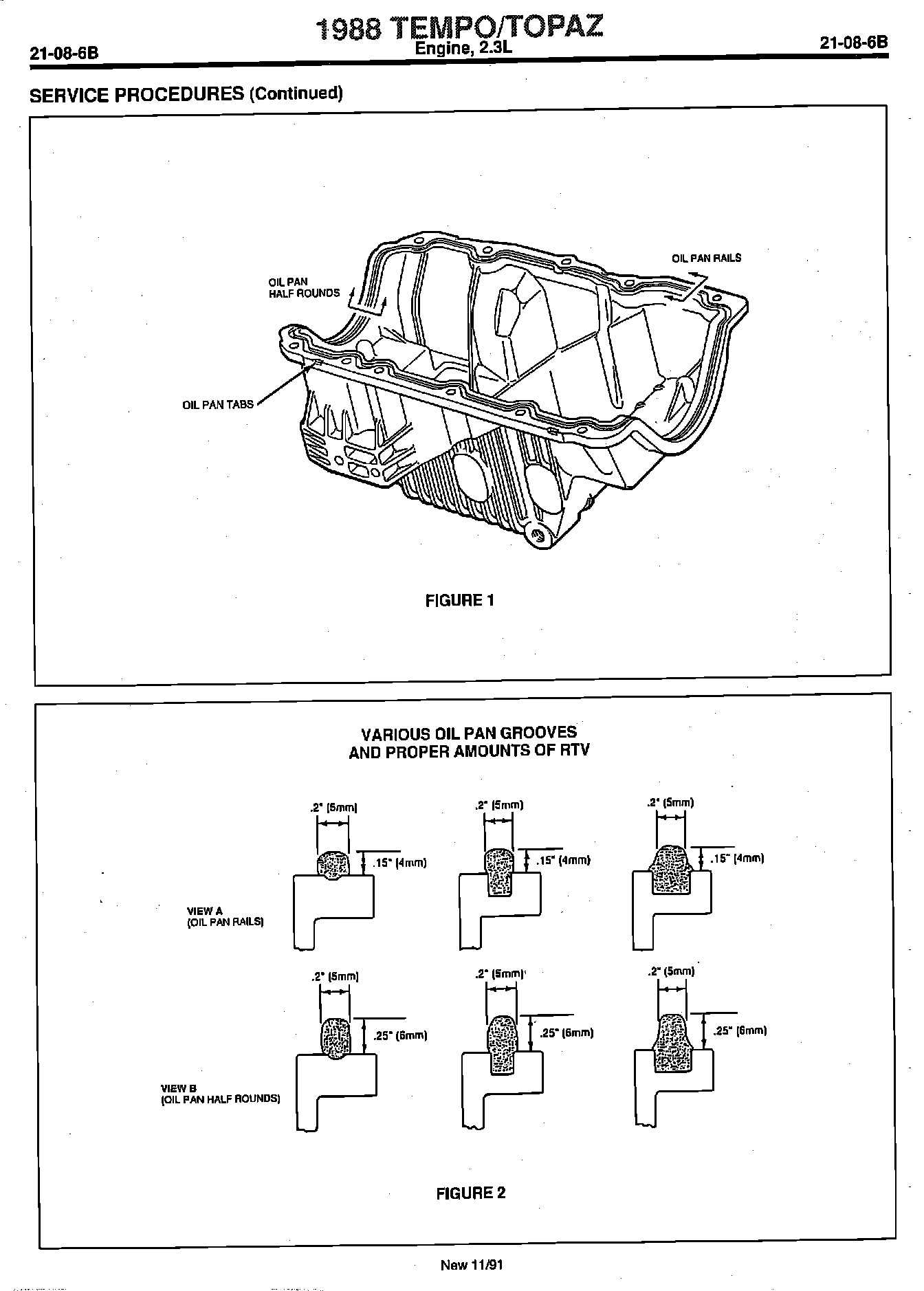

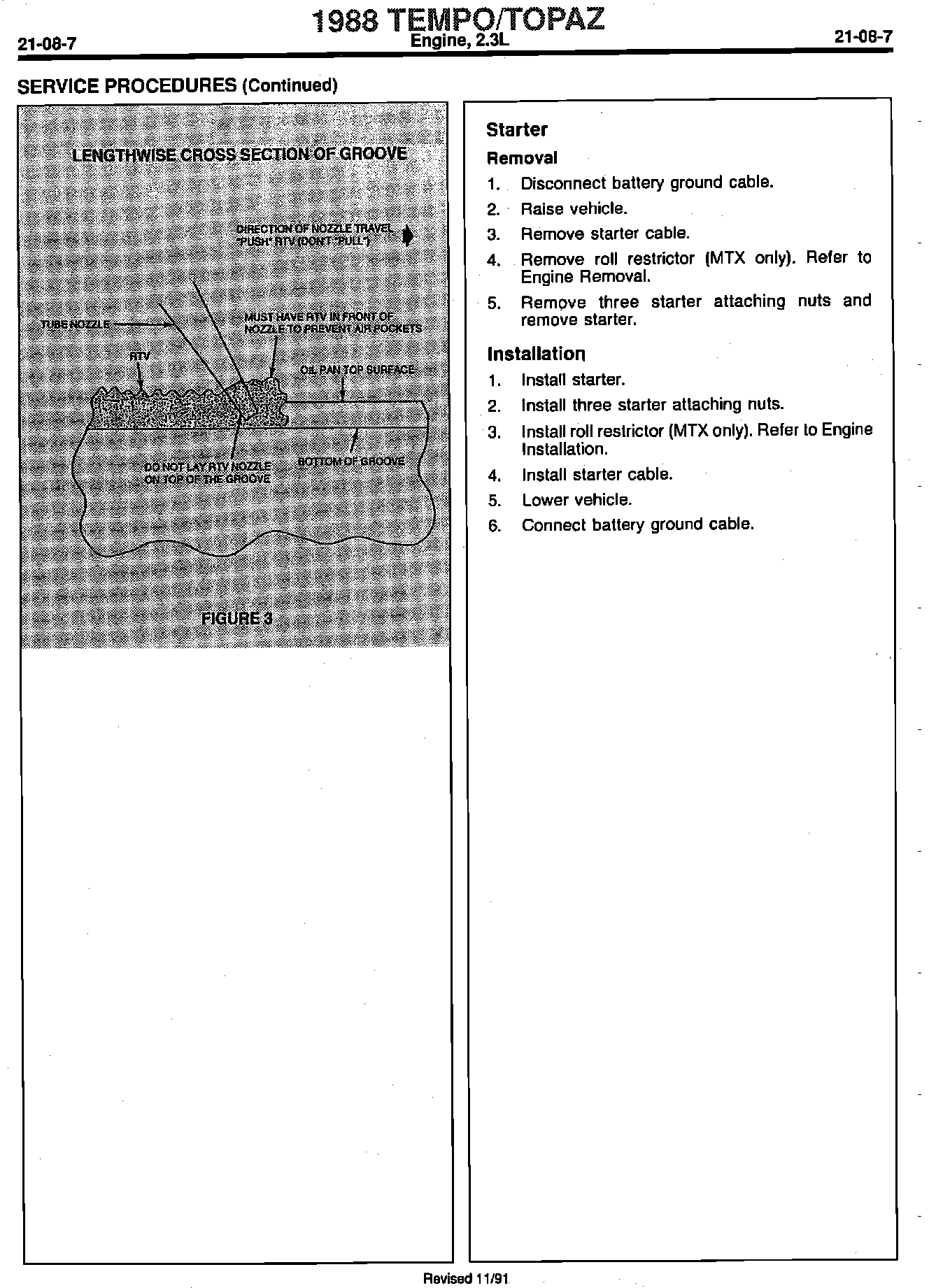

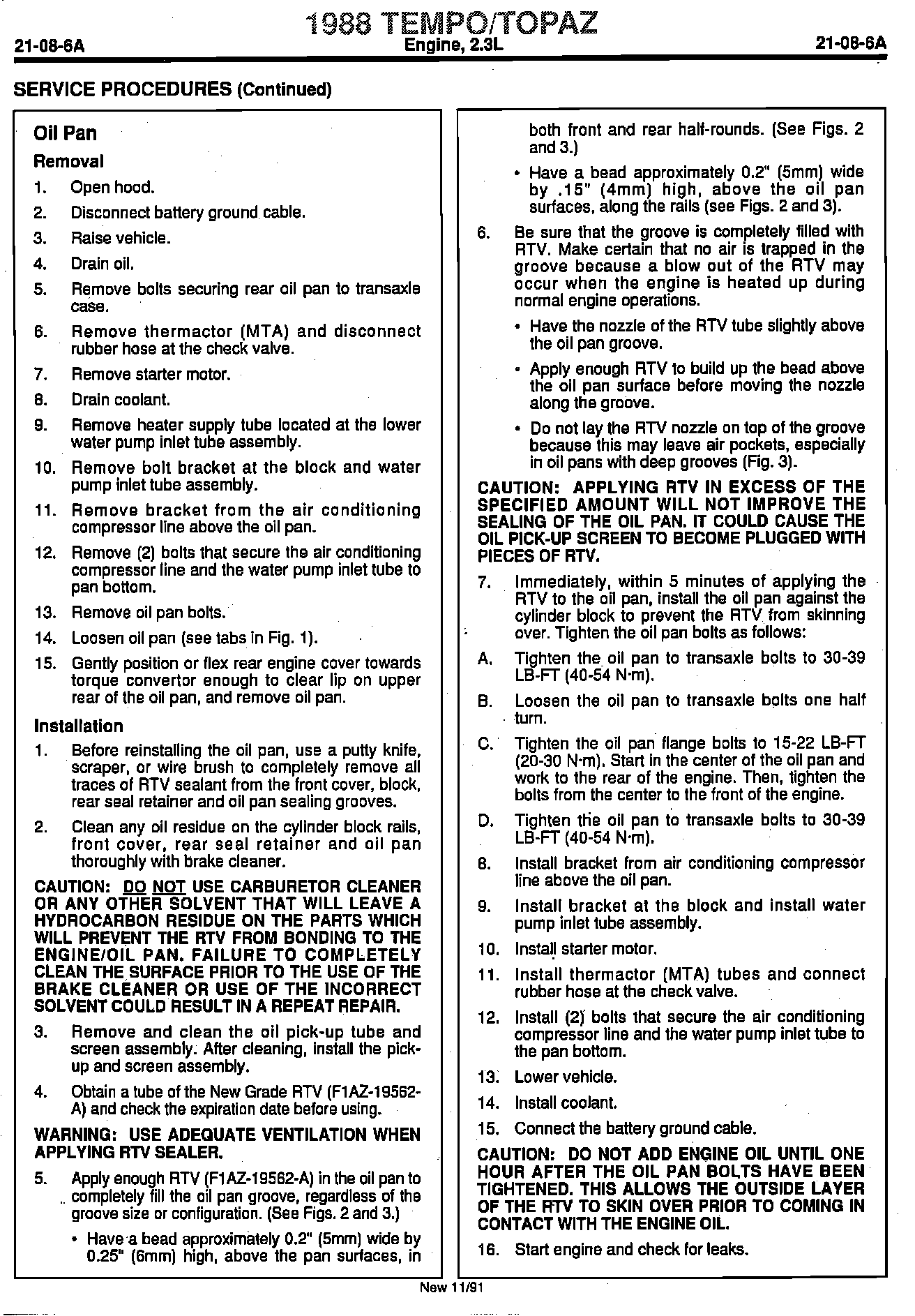

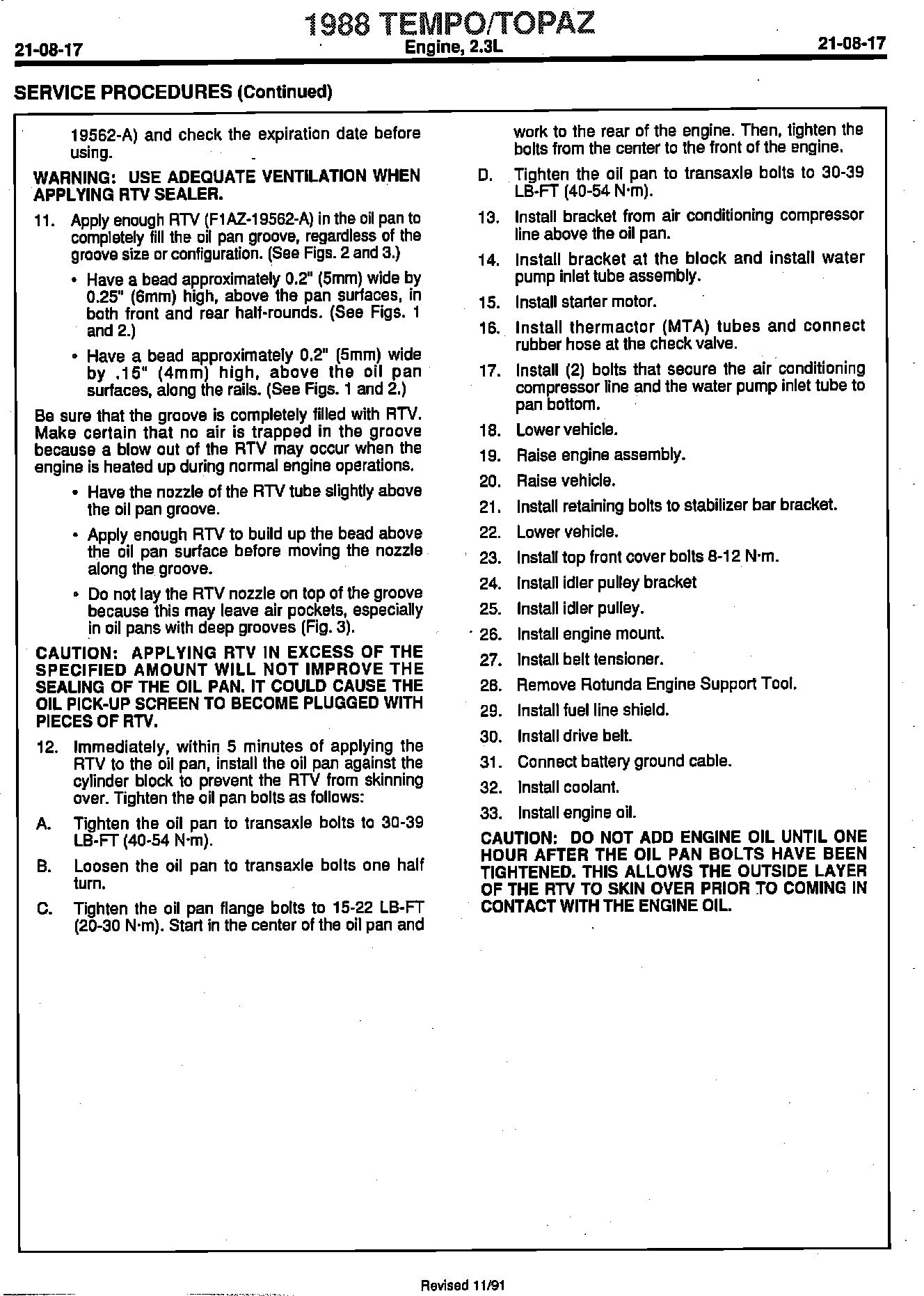

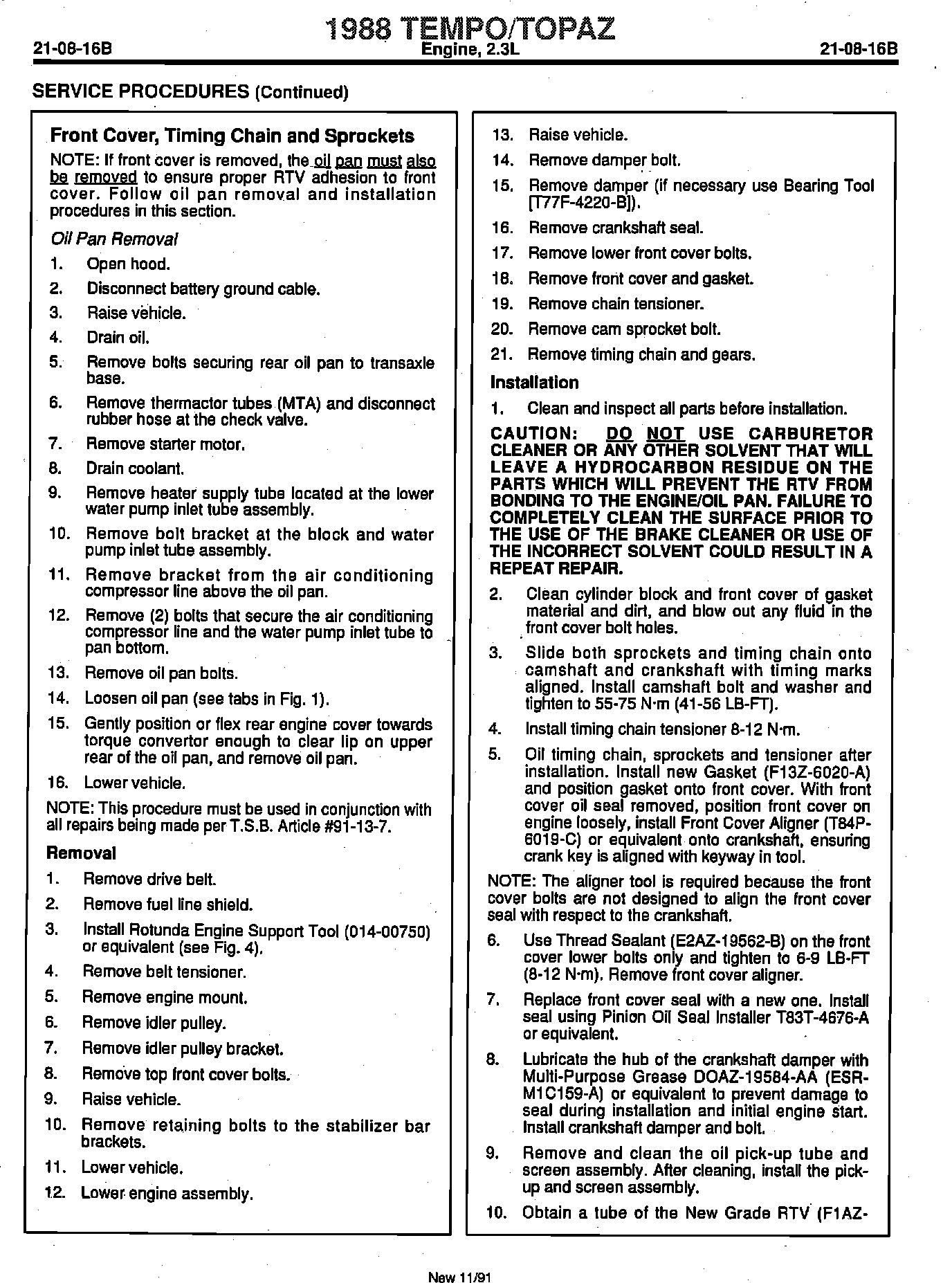

^ 1988 Tempo/Topaz/Escort, Section 21-08

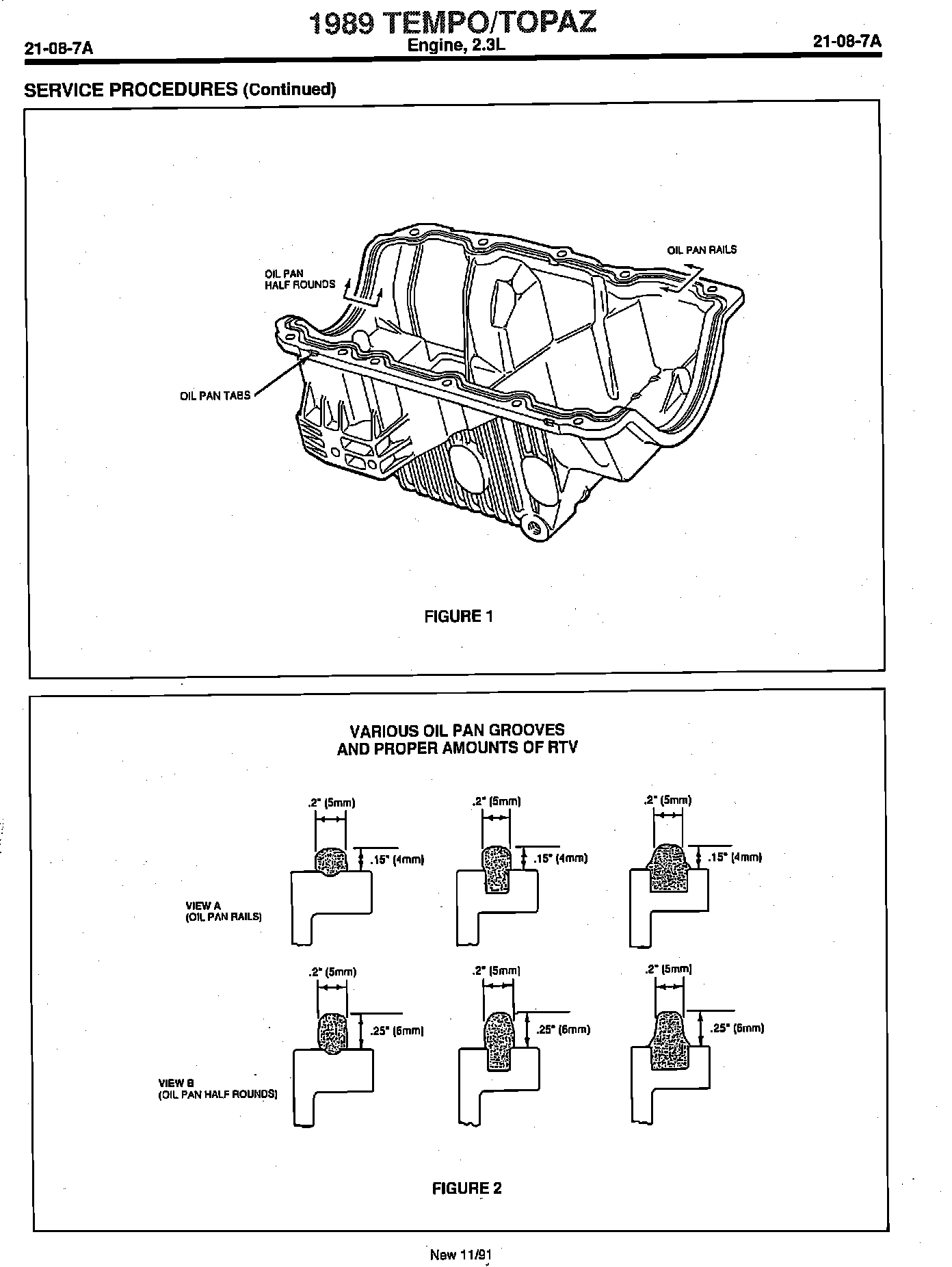

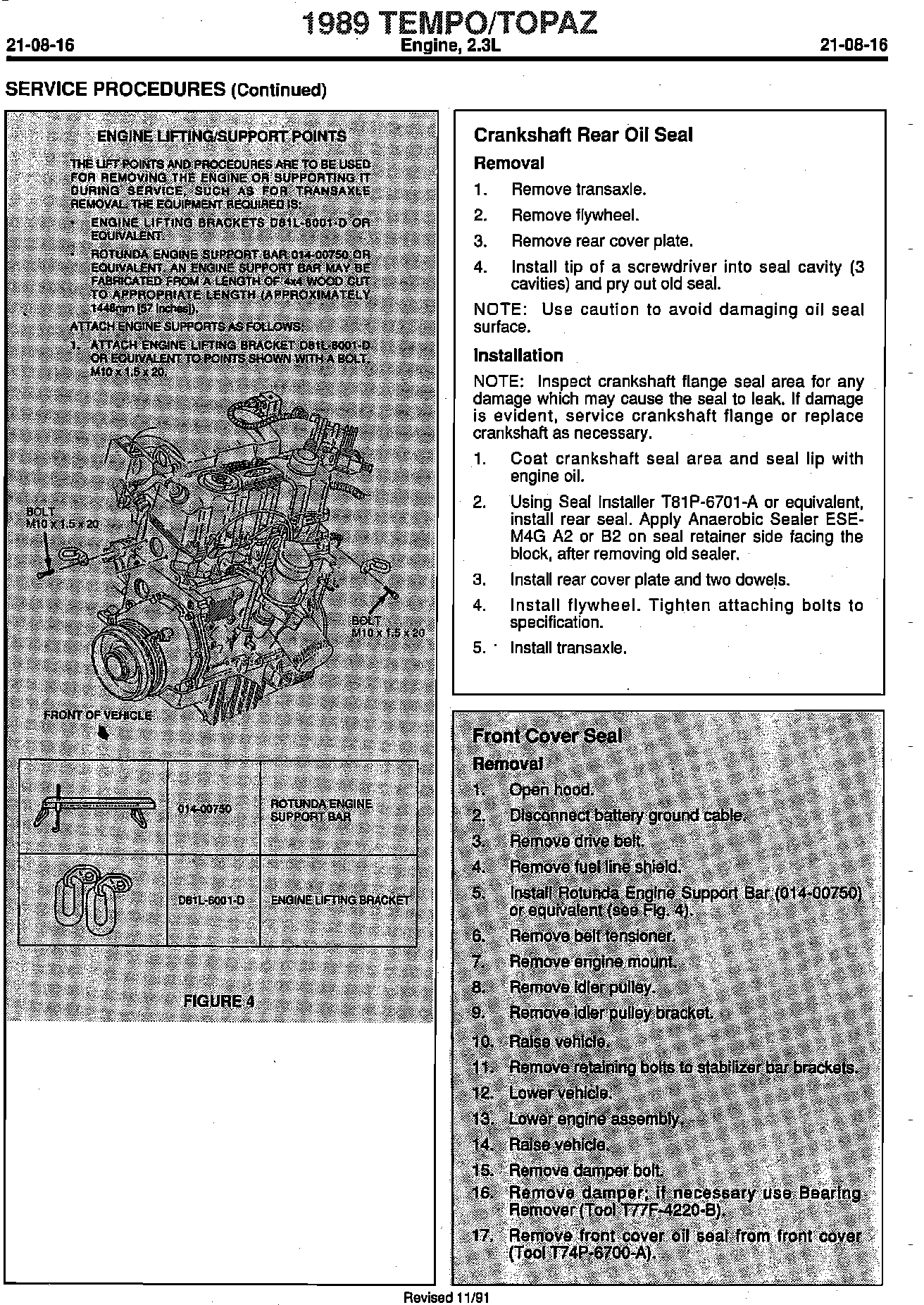

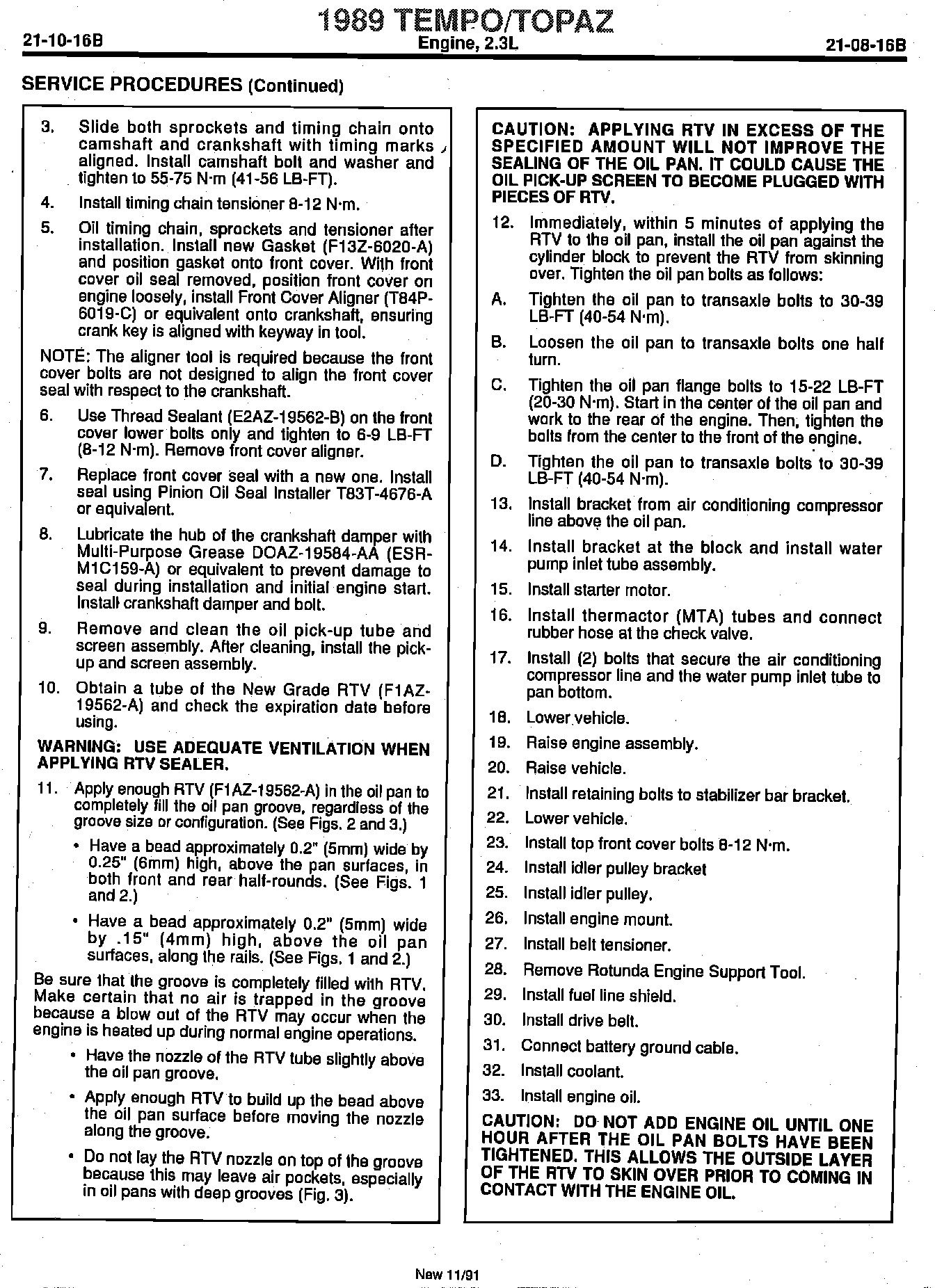

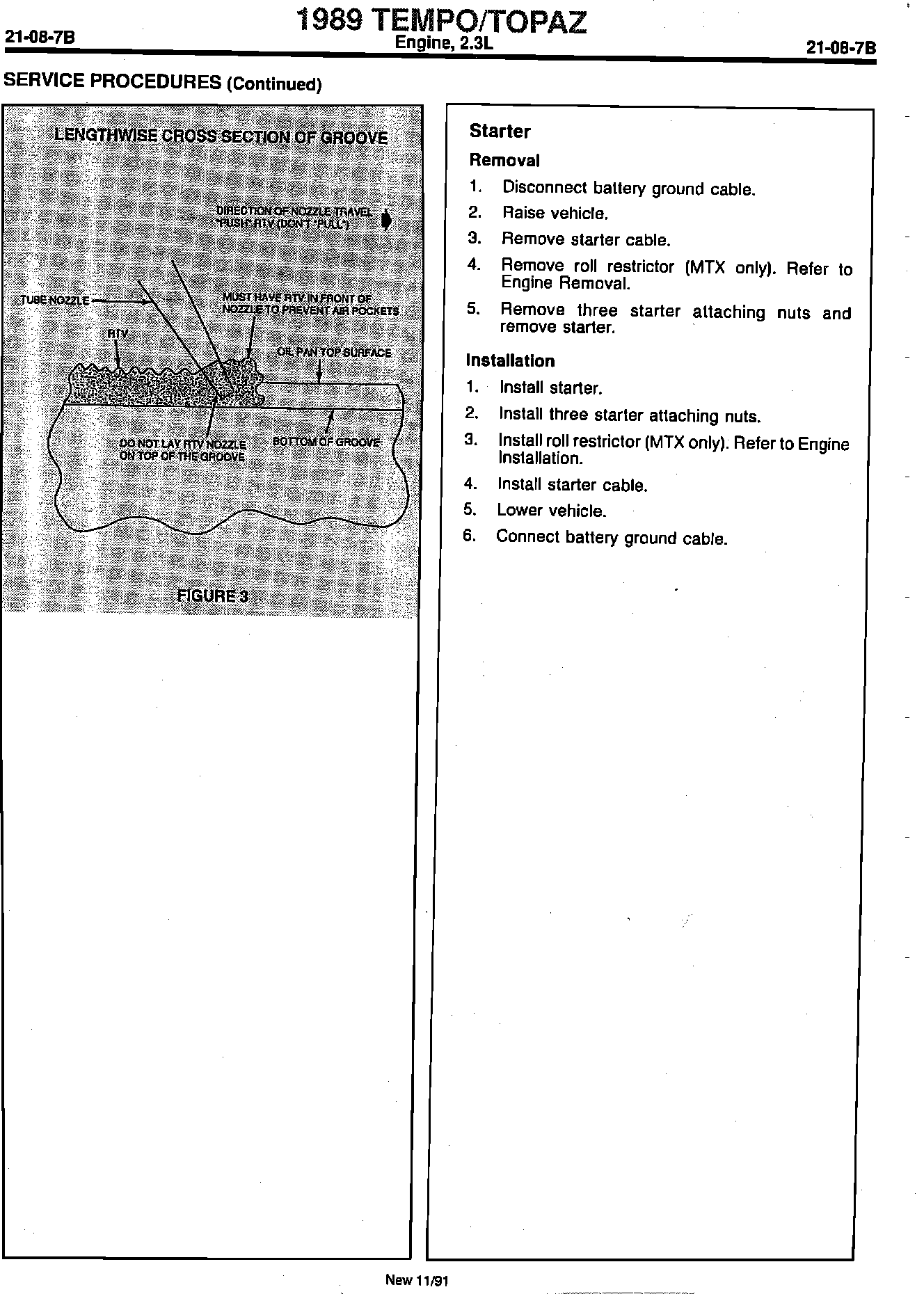

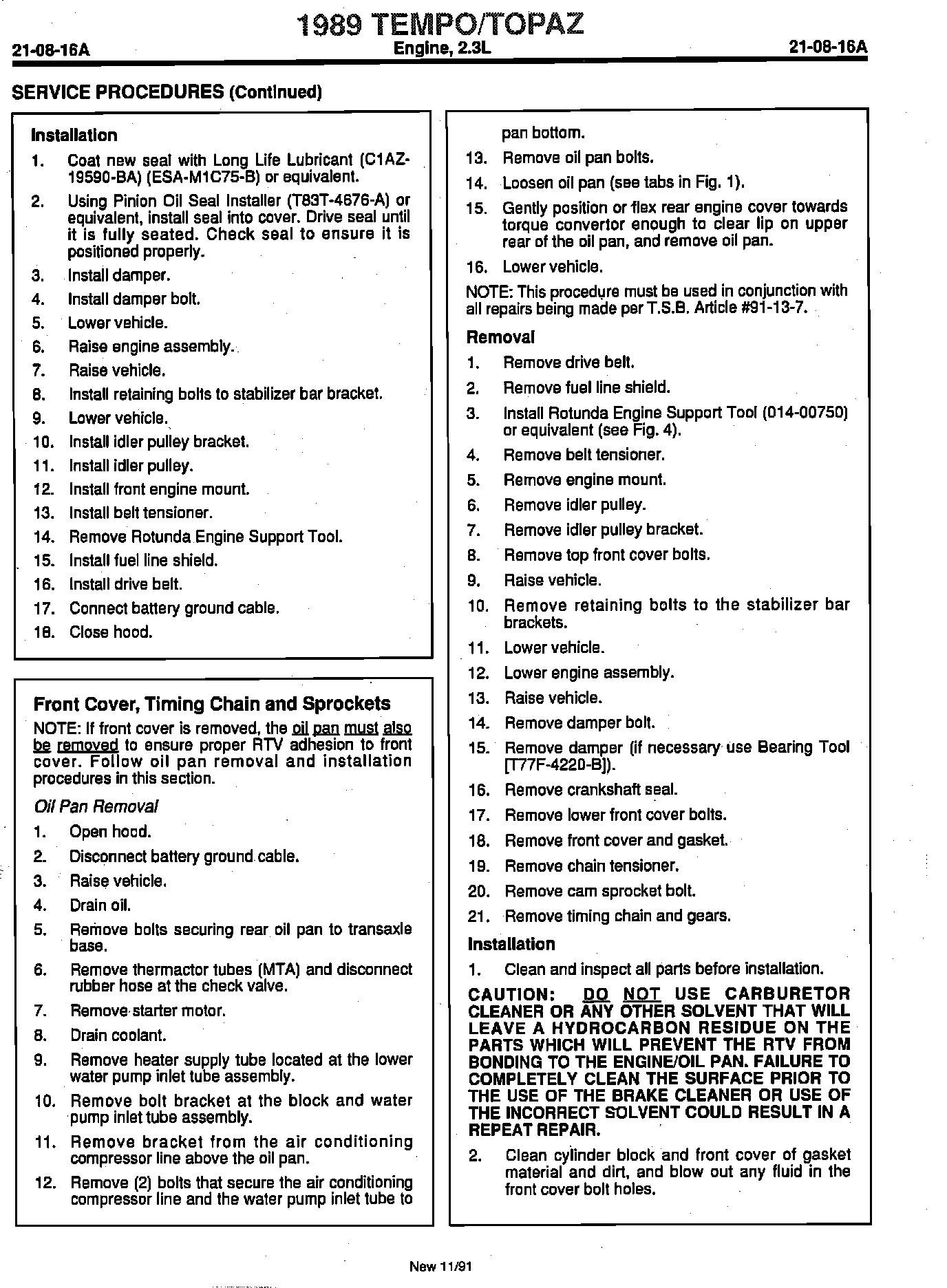

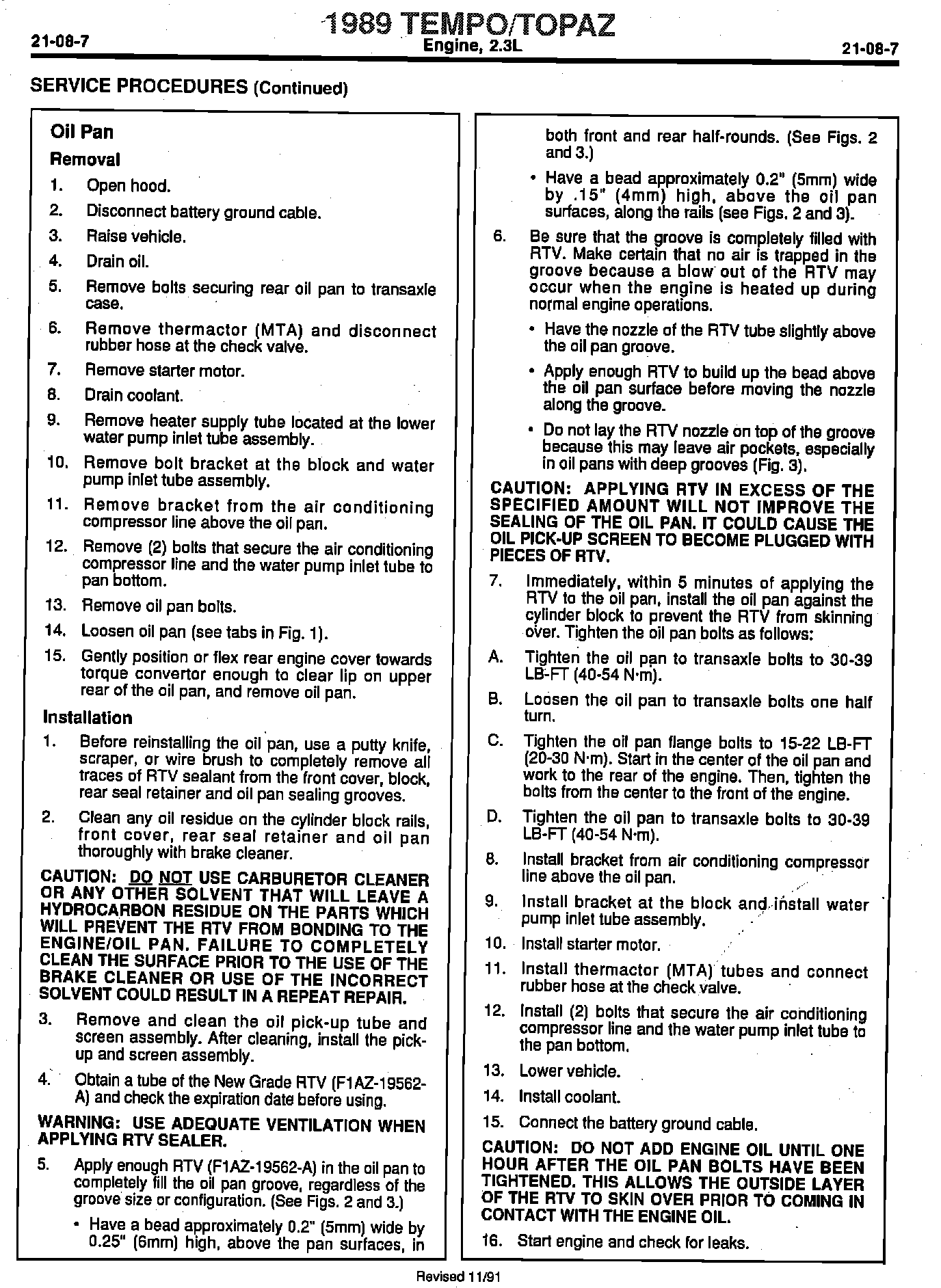

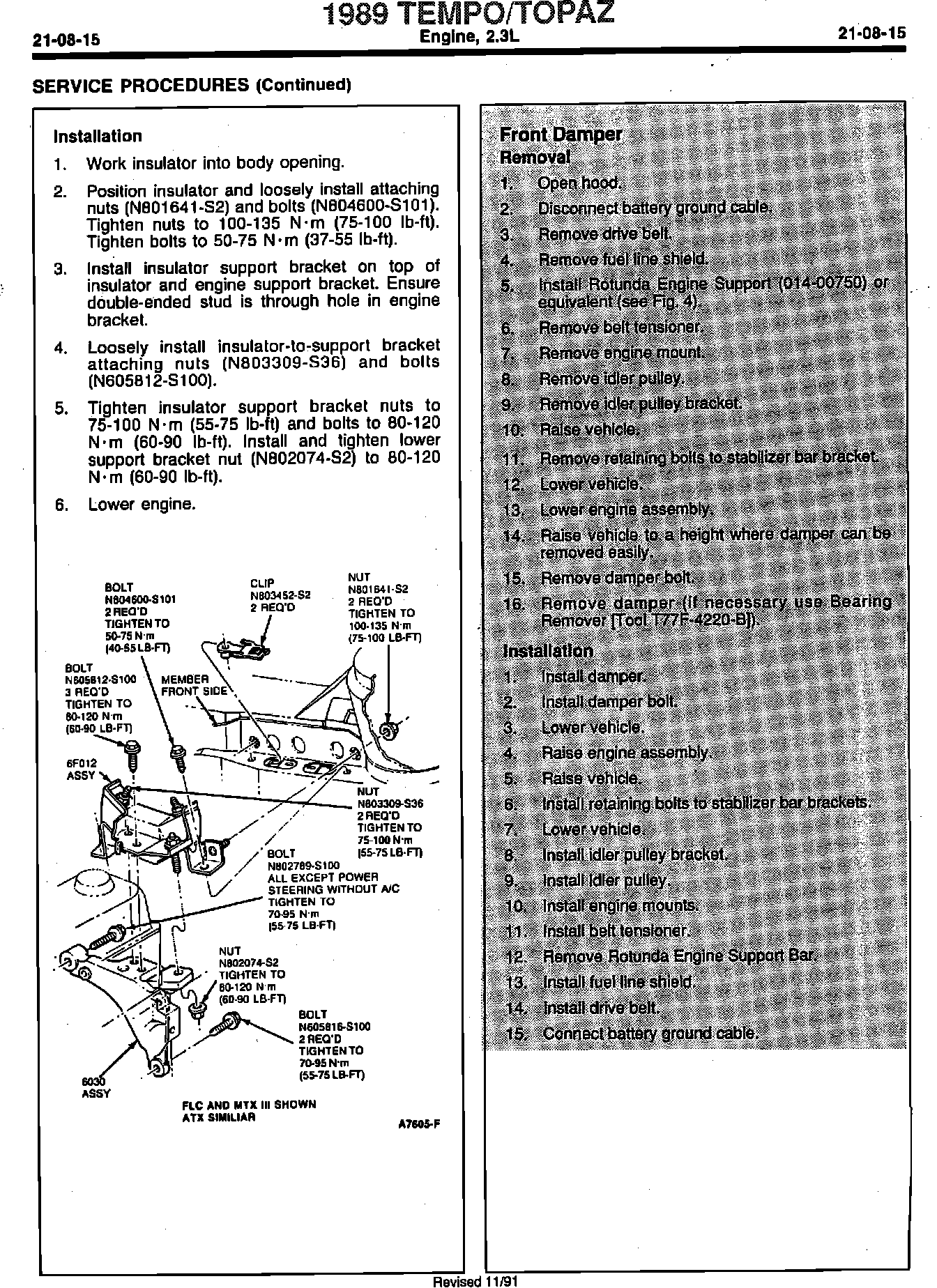

^ 1989 Tempo/Topaz/Escort, Section
21-08

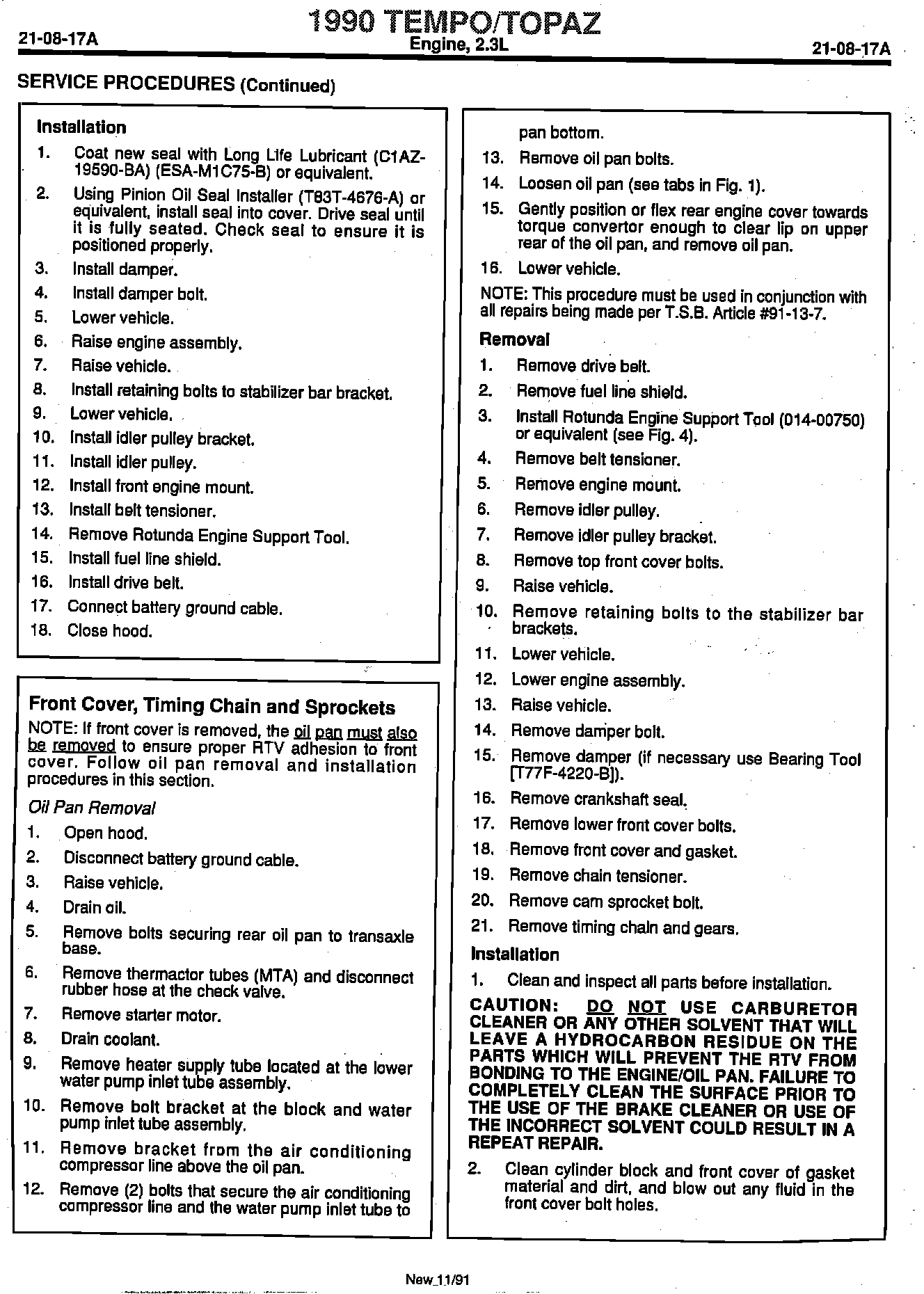

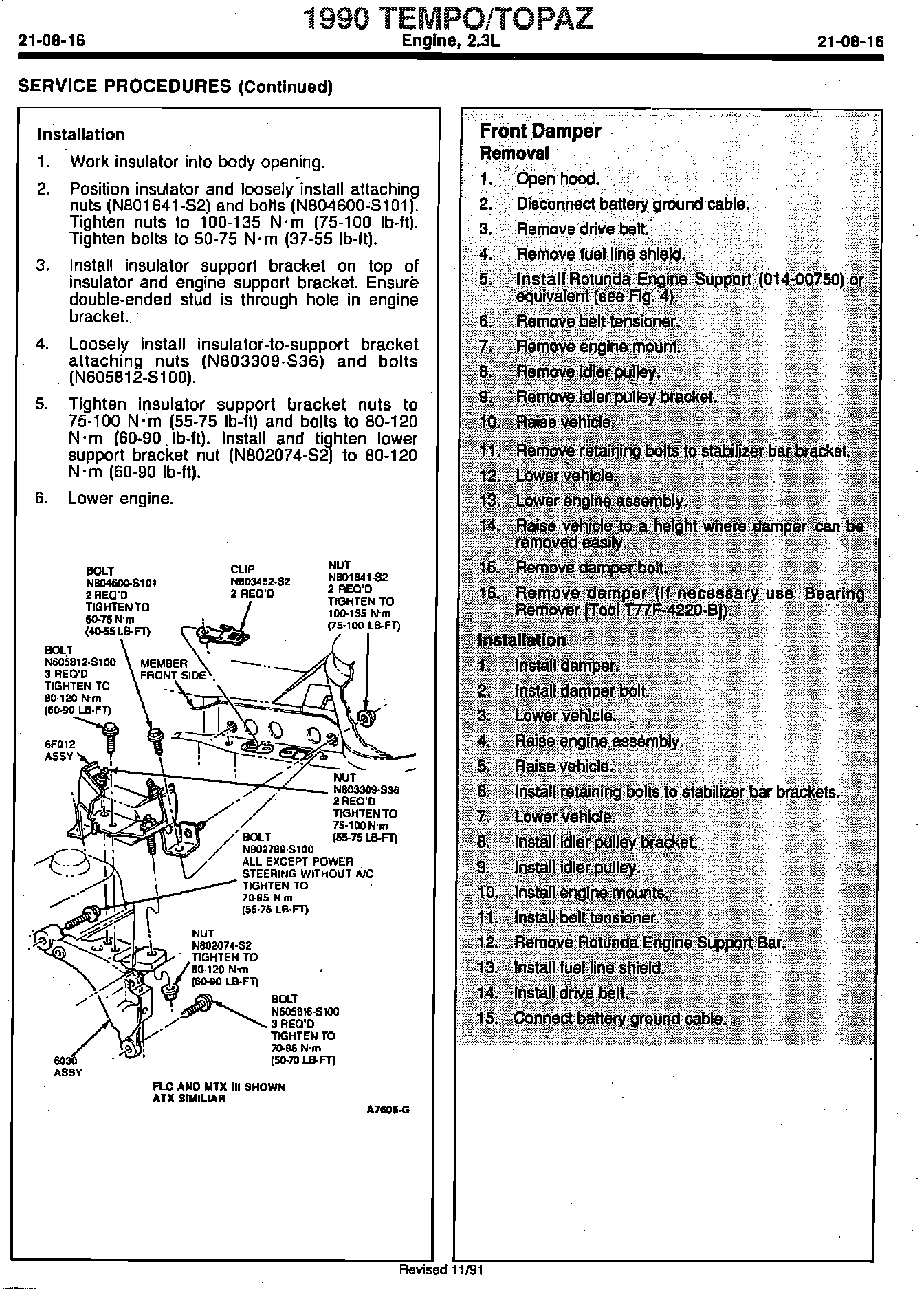

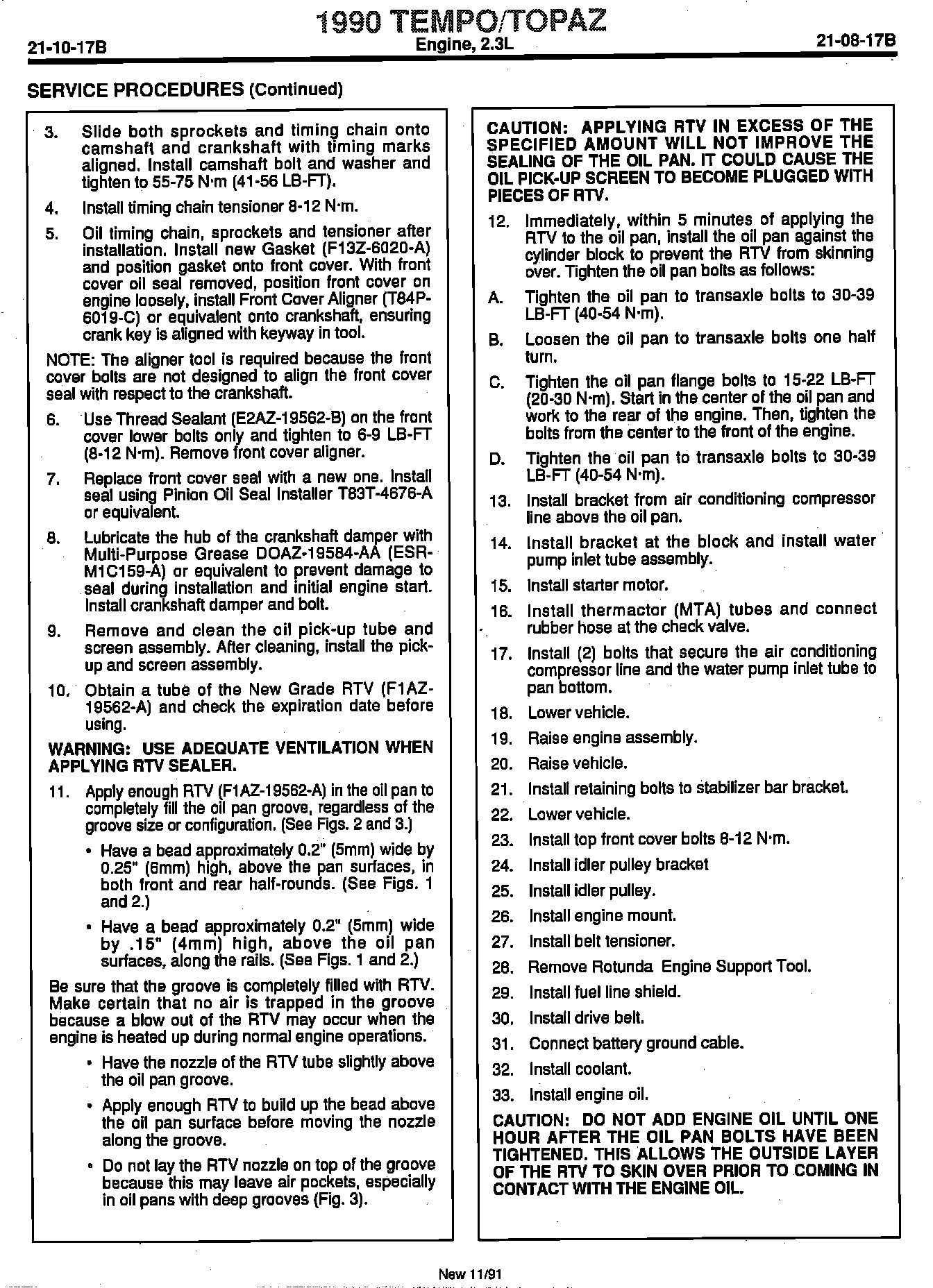

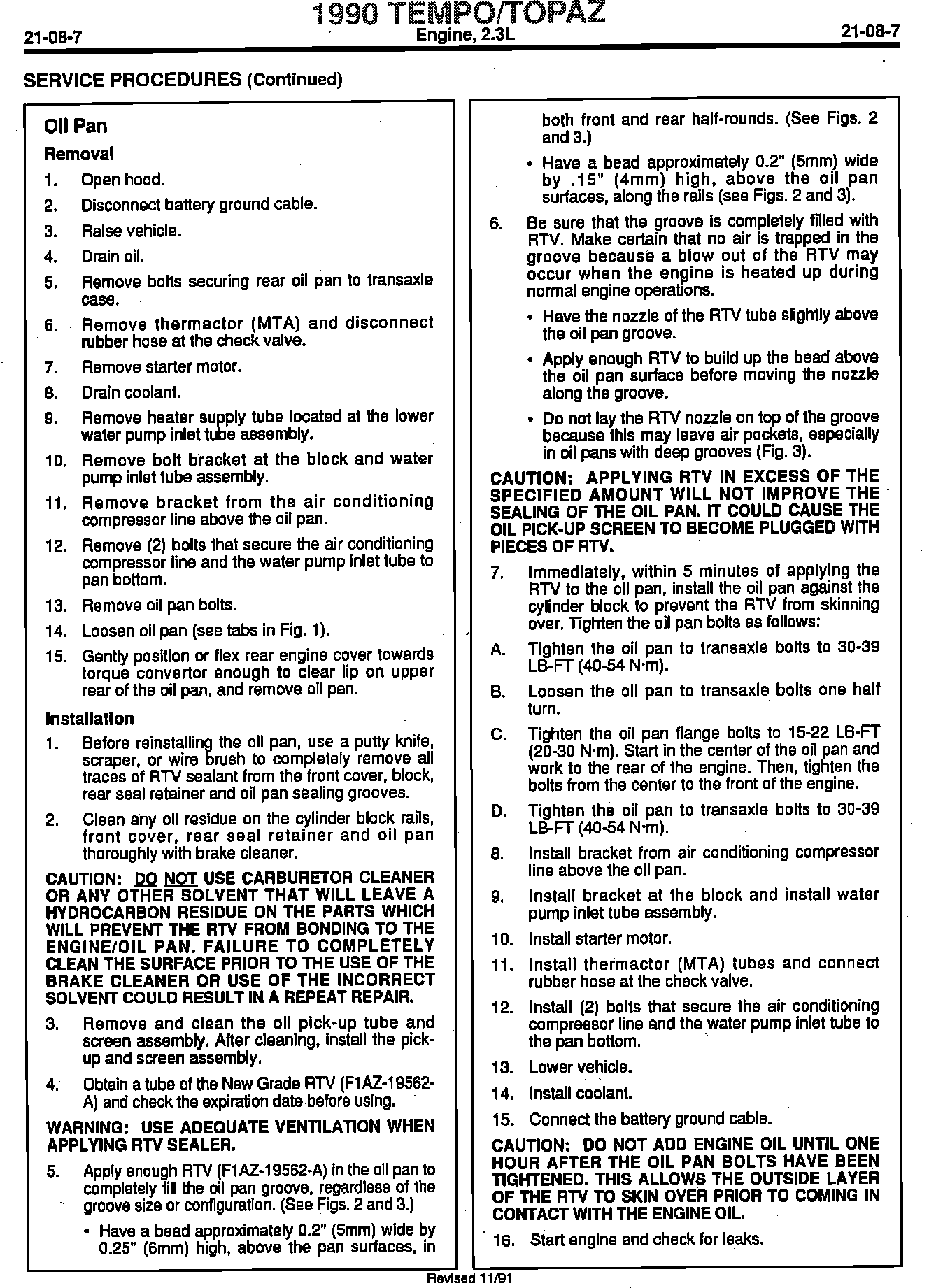

^ 1990 Tempo/Topaz/Escort, Section 21-08
