W/ 4 Speed Manual Transmission

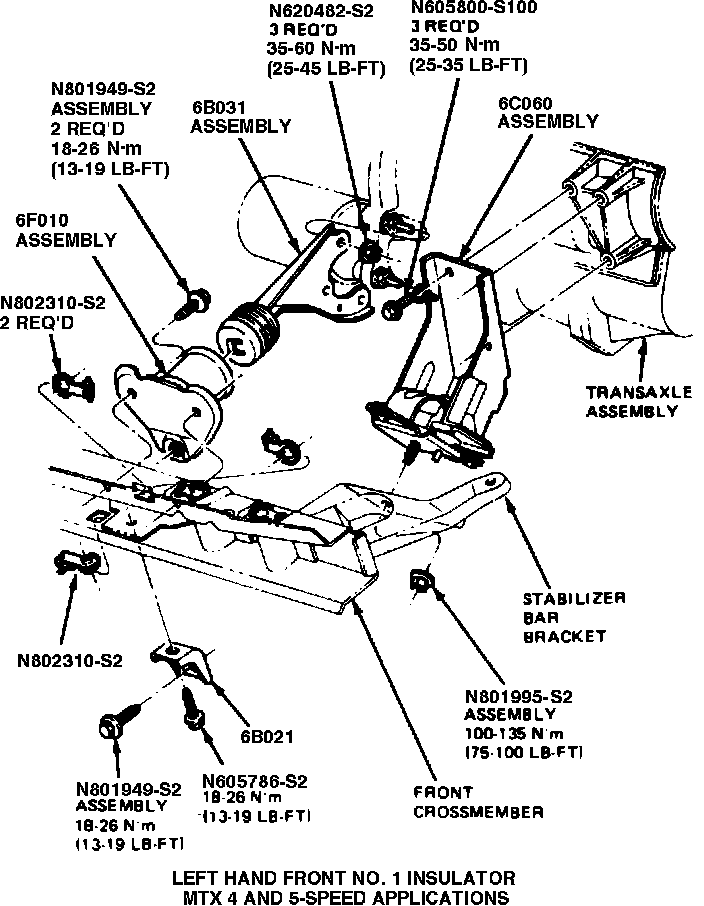

Fig. 1 Lefthand Front No.1 Insulator. 4 & 5 Speed Manual Transaxle:

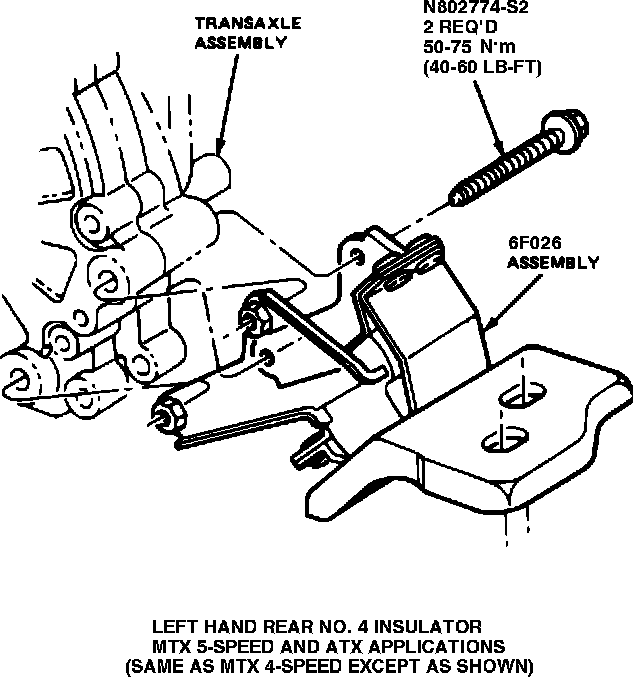

Fig. 4 Lefthand Rear No. 4 Insulator. 5 Speed Manual & Automatic Transaxle:

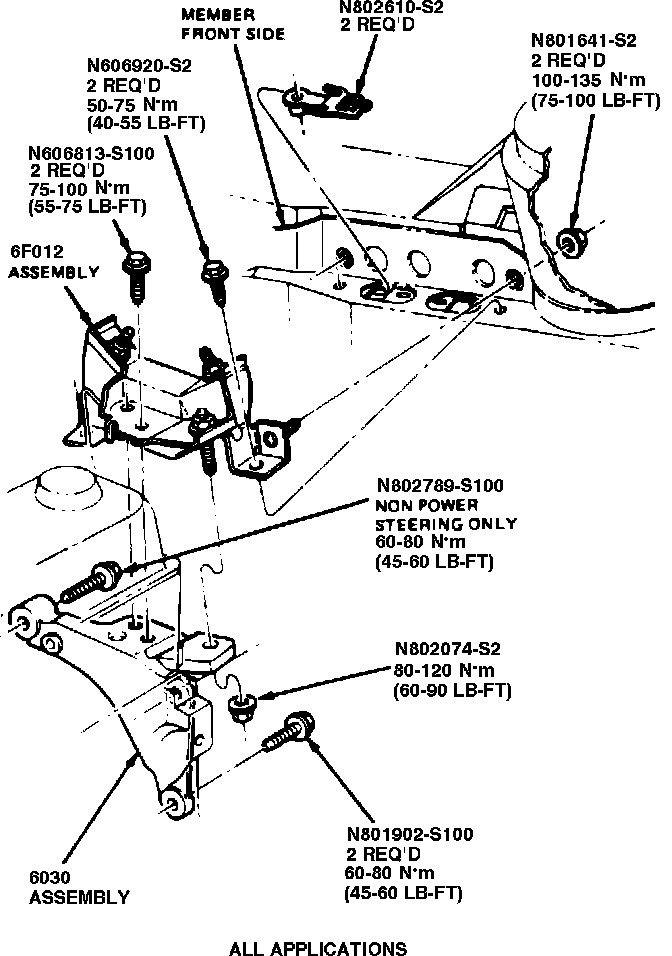

Fig. 5 Righthand No. 3A Insulator:
