Topaz AWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Interior Moulding / Trim
>>
Dashboard / Instrument Panel
>>
Service and Repair
>>
Disassembly and Assembly
Disassembly and Assembly
NOTE:
Refer to the these illustrations when disassembling or assembling the instrument panel.

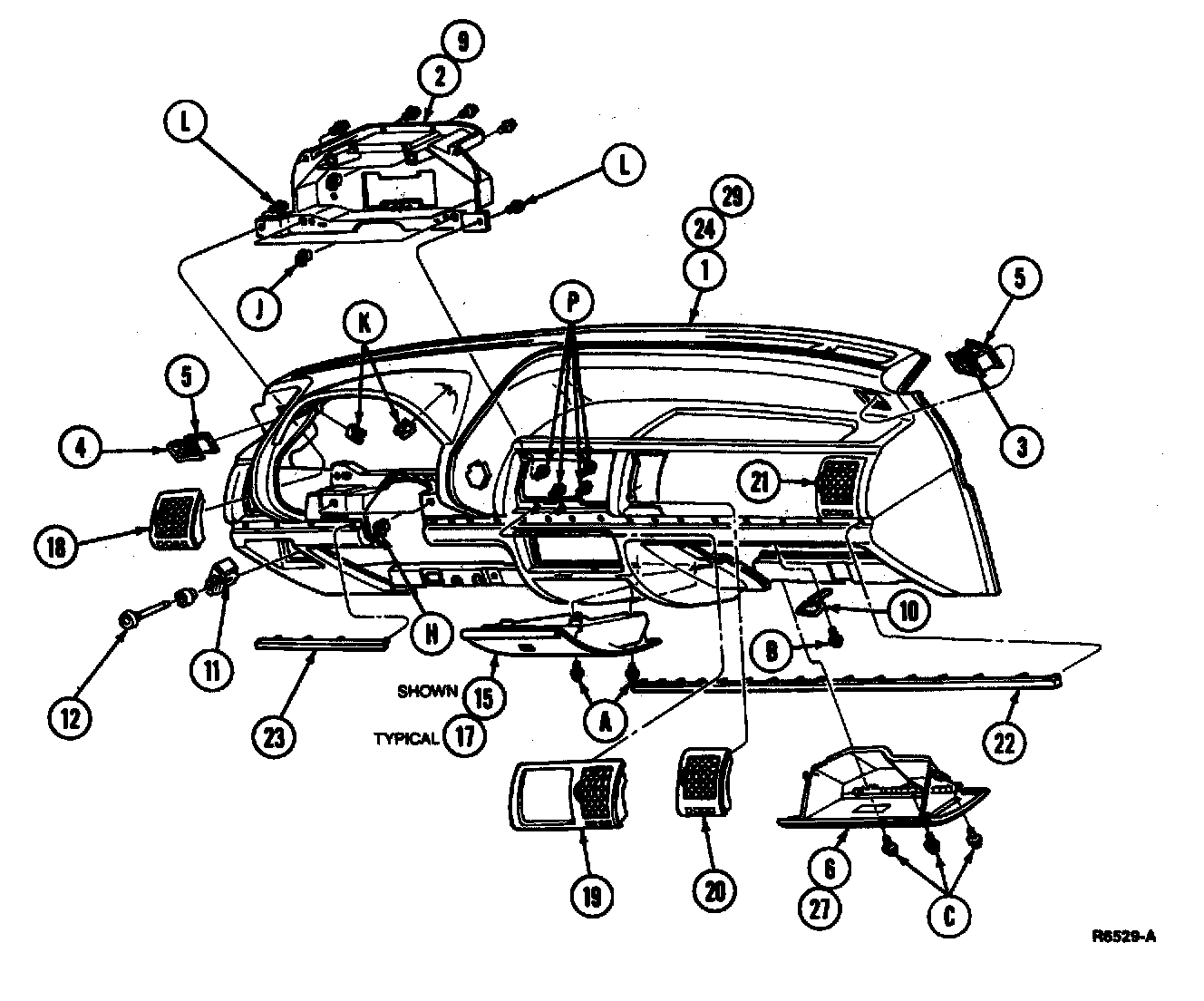

Exploded View:

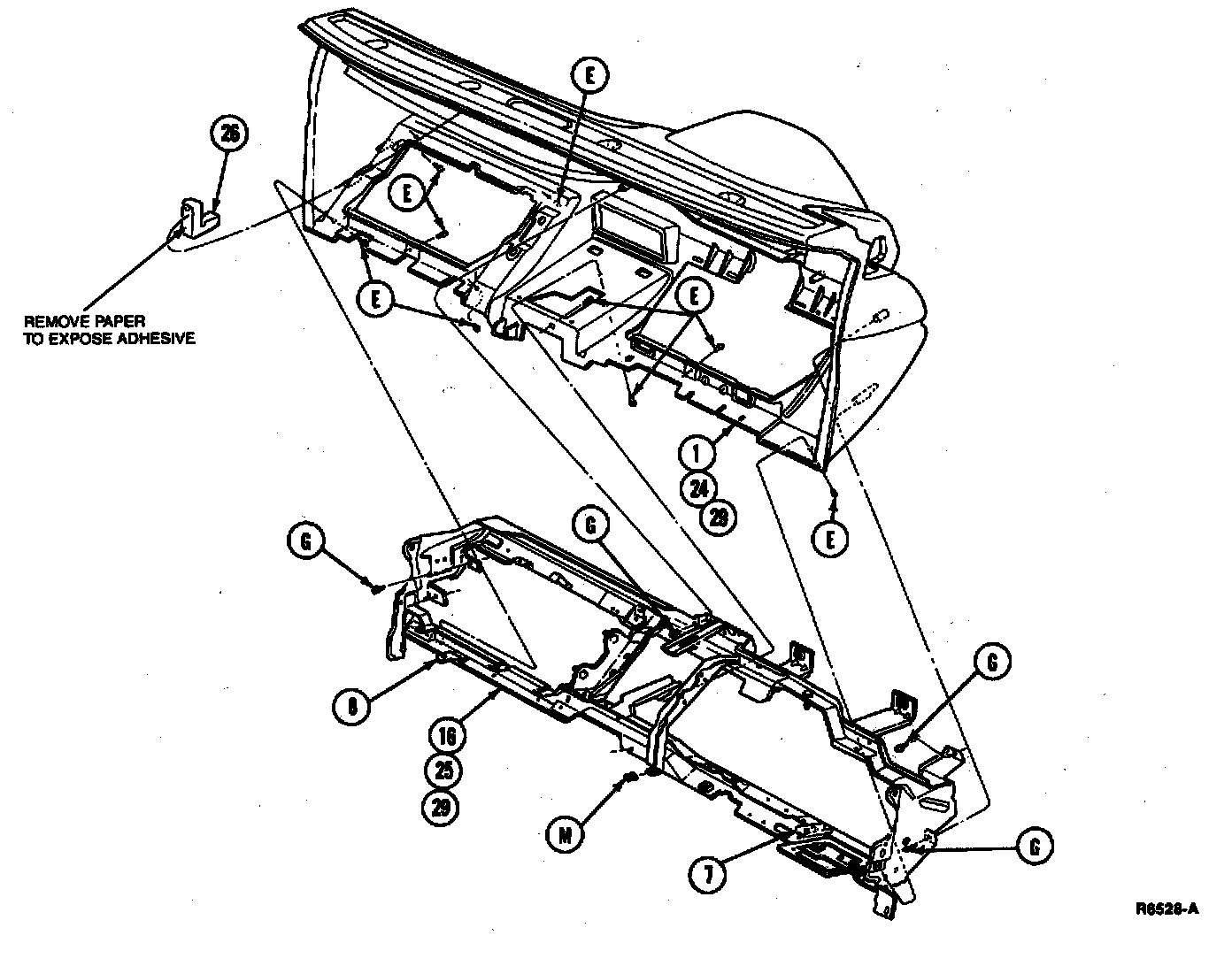

Rear View:

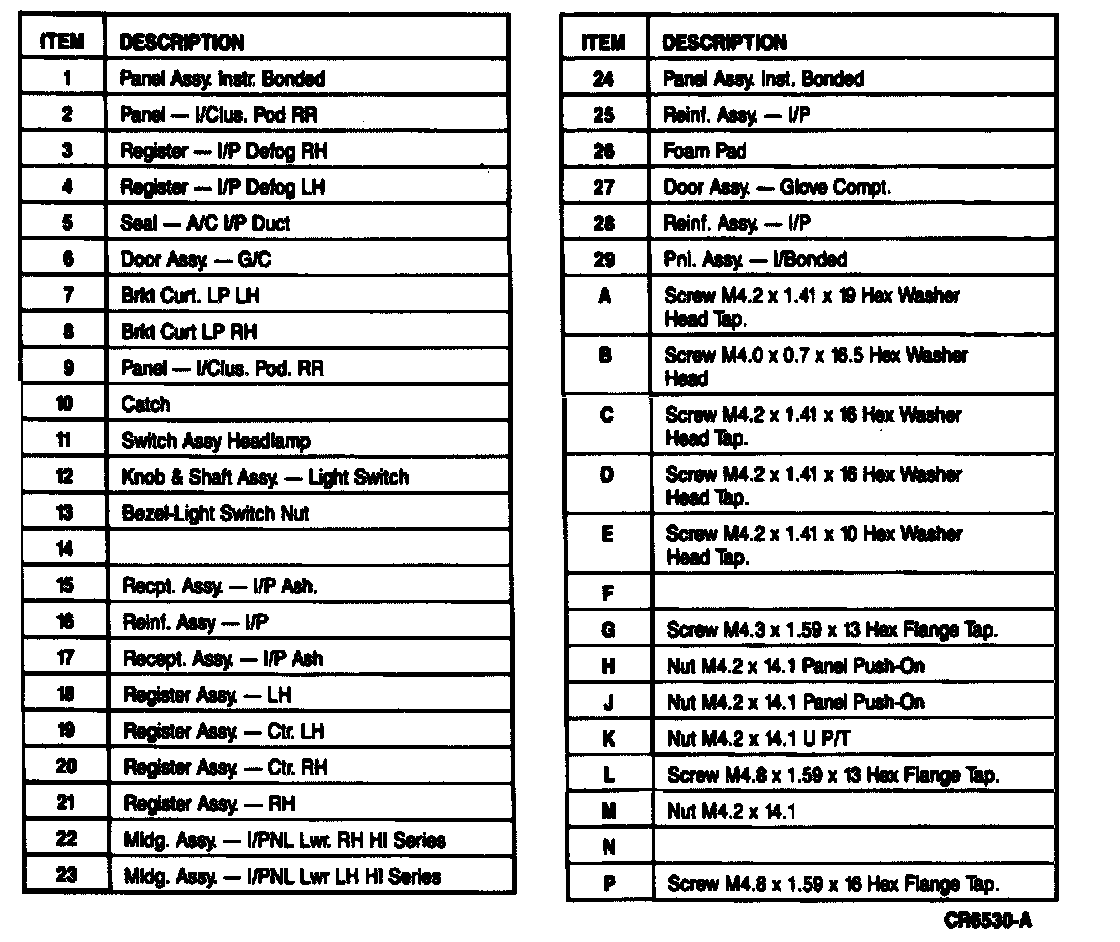

Item Index:
