FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Mercury >> 1990 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Diagnosis By Symptom >> Noise/Rattle Chuckle/Clicks/Pops/Squeaks/Creaks/Clunk/Squawk

Noise/Rattle Chuckle/Clicks/Pops/Squeaks/Creaks/Clunk/Squawk

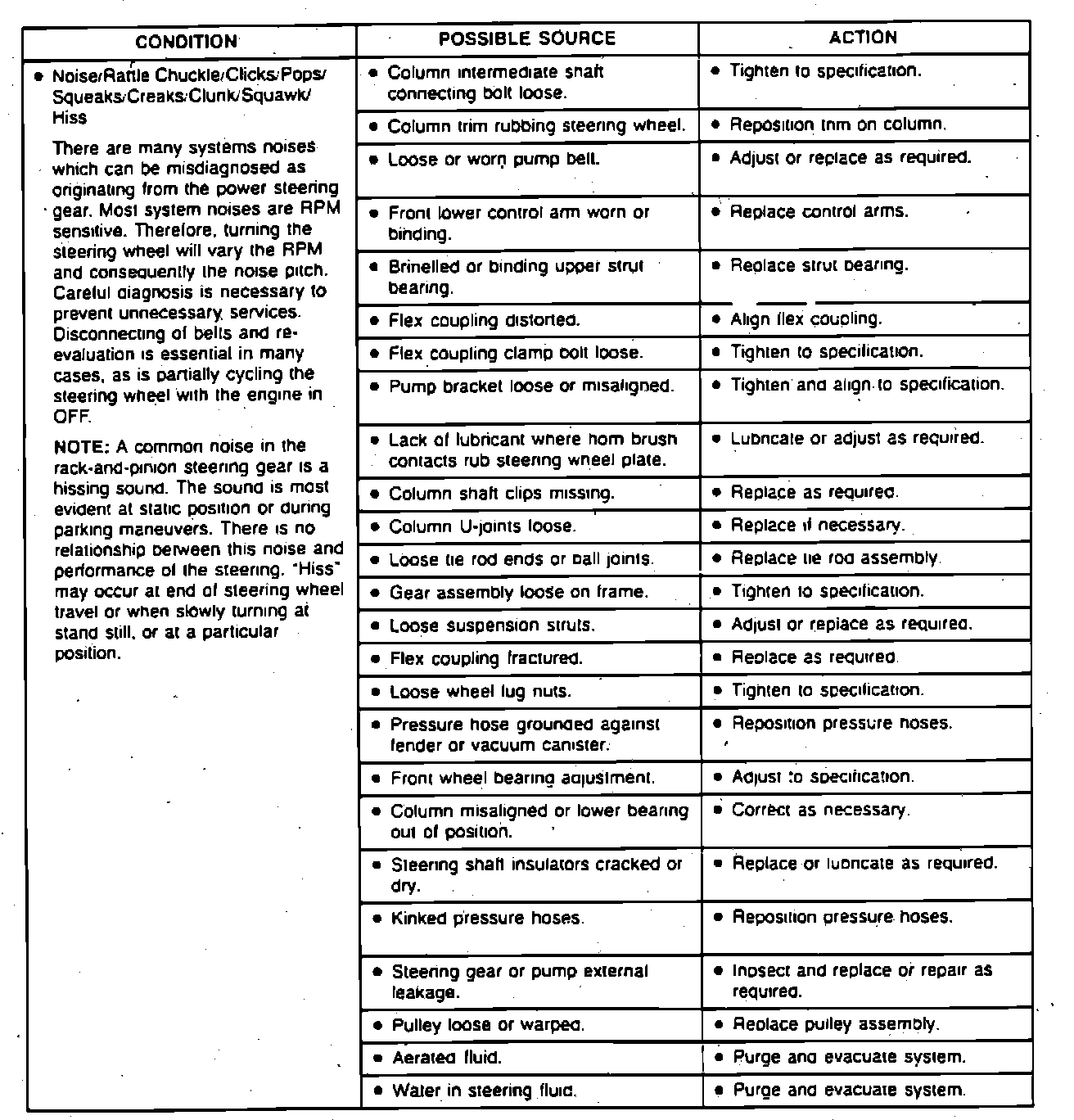

Fig. 4 Steering System Troubleshooting (Part 7 Of 8):
