Home >> Mercury >> 1990 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution >> Charge System/Power Distribution & Fusible Links >> Charging System >> W/ Police Package

W/ Police Package

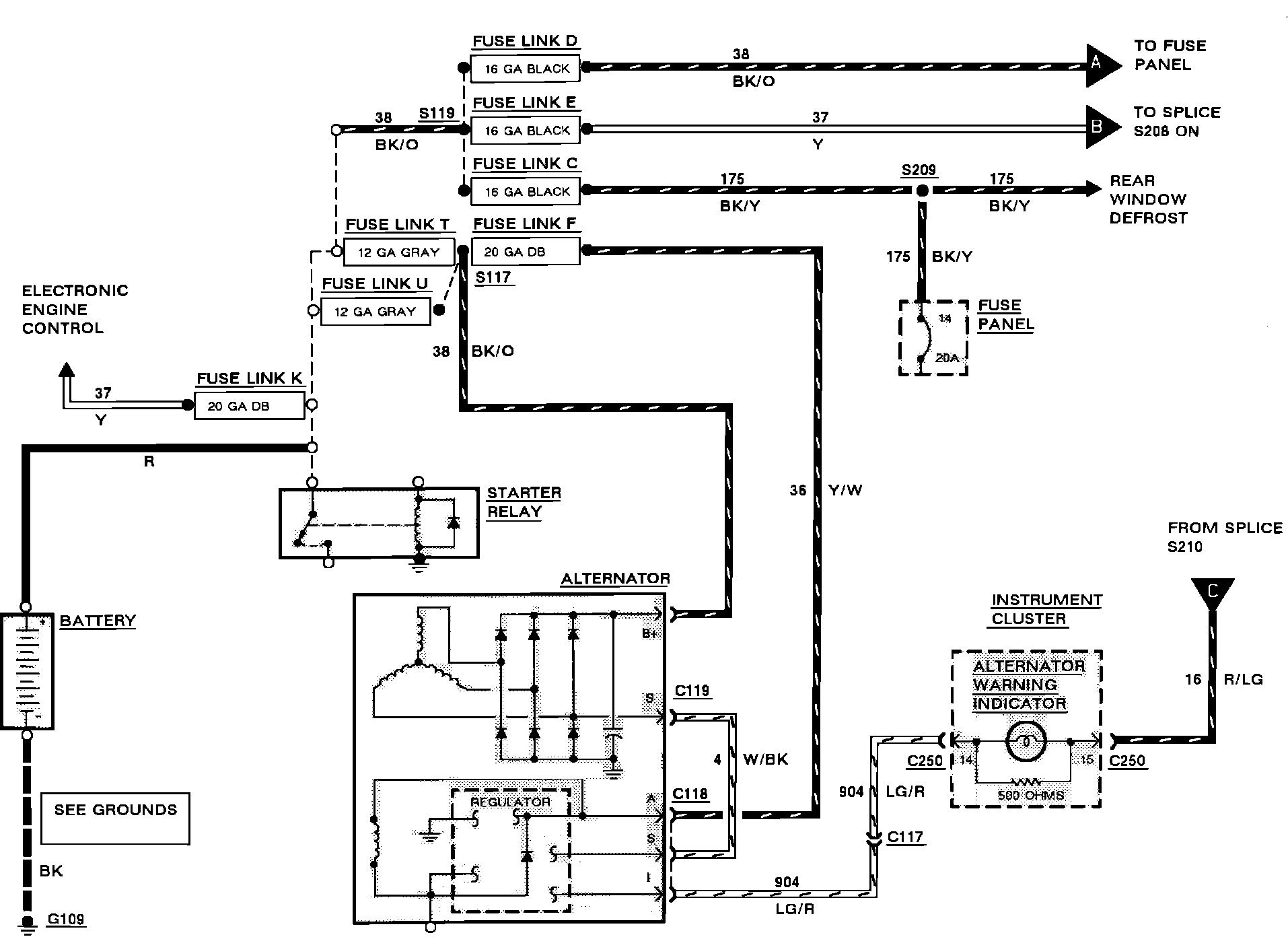

Charging System - Police Package:
