Inertia Fuel Shutoff Switch
>>
Locations
>>

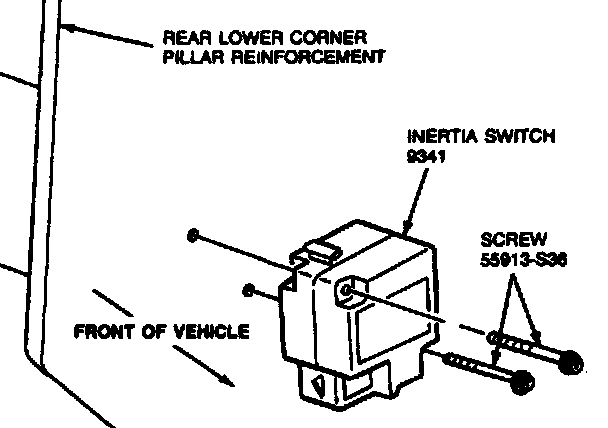

Inertia Switch (Wagon)
Inertia Switch (Wagon)
The inertia fuel shutoff switch is located on the right hand rear lower corner pillar reinforcement behind a storage compartment door (31560).
The location is clearly marked on the vehicle.
