Home >> Mercury >> 1990 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Exterior Lighting Module >> Diagrams >> Electrical Diagrams >> Less Diagnostic Warning

Less Diagnostic Warning

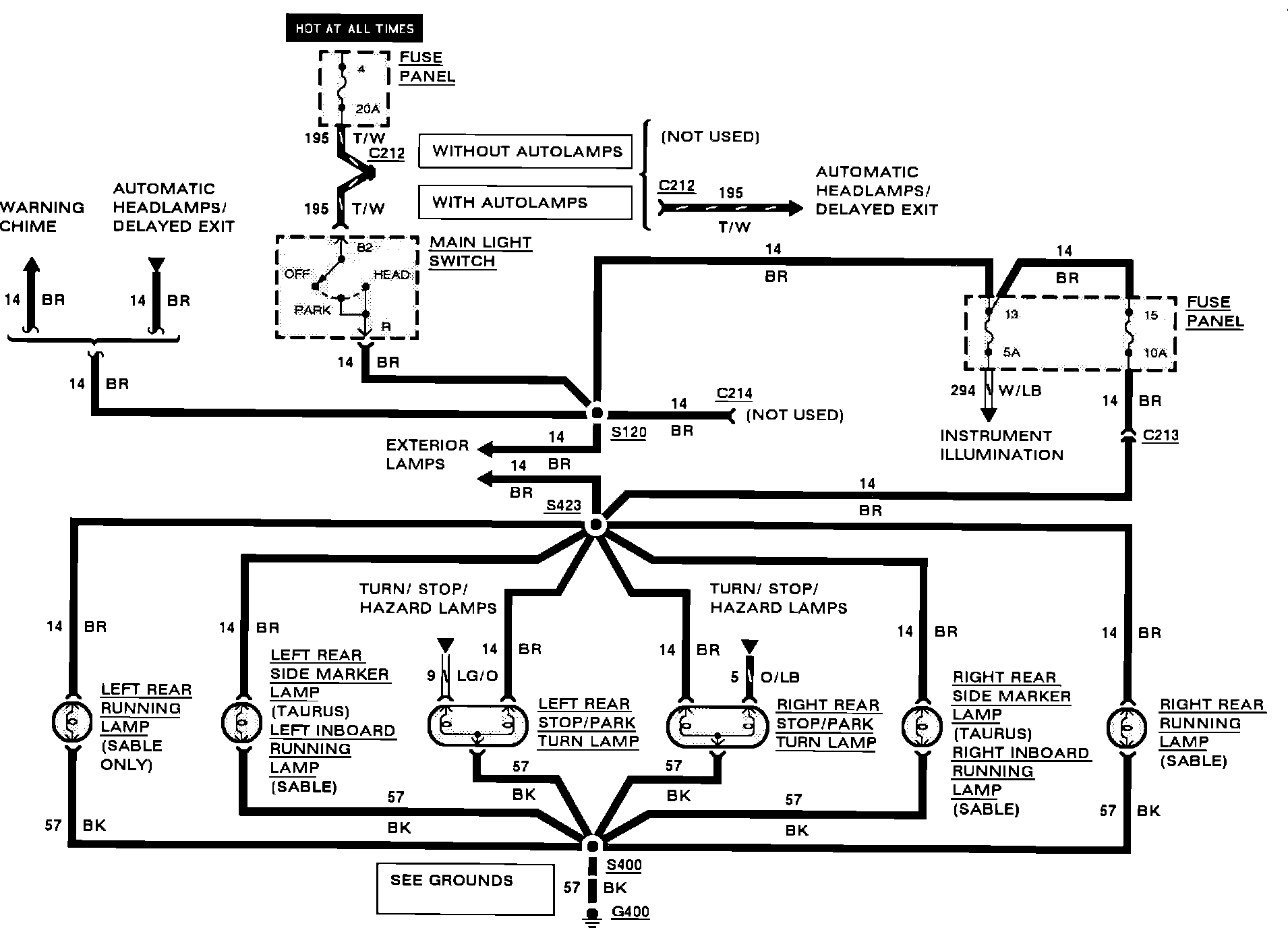

Exterior Lamps Less Diagnostic Warning:

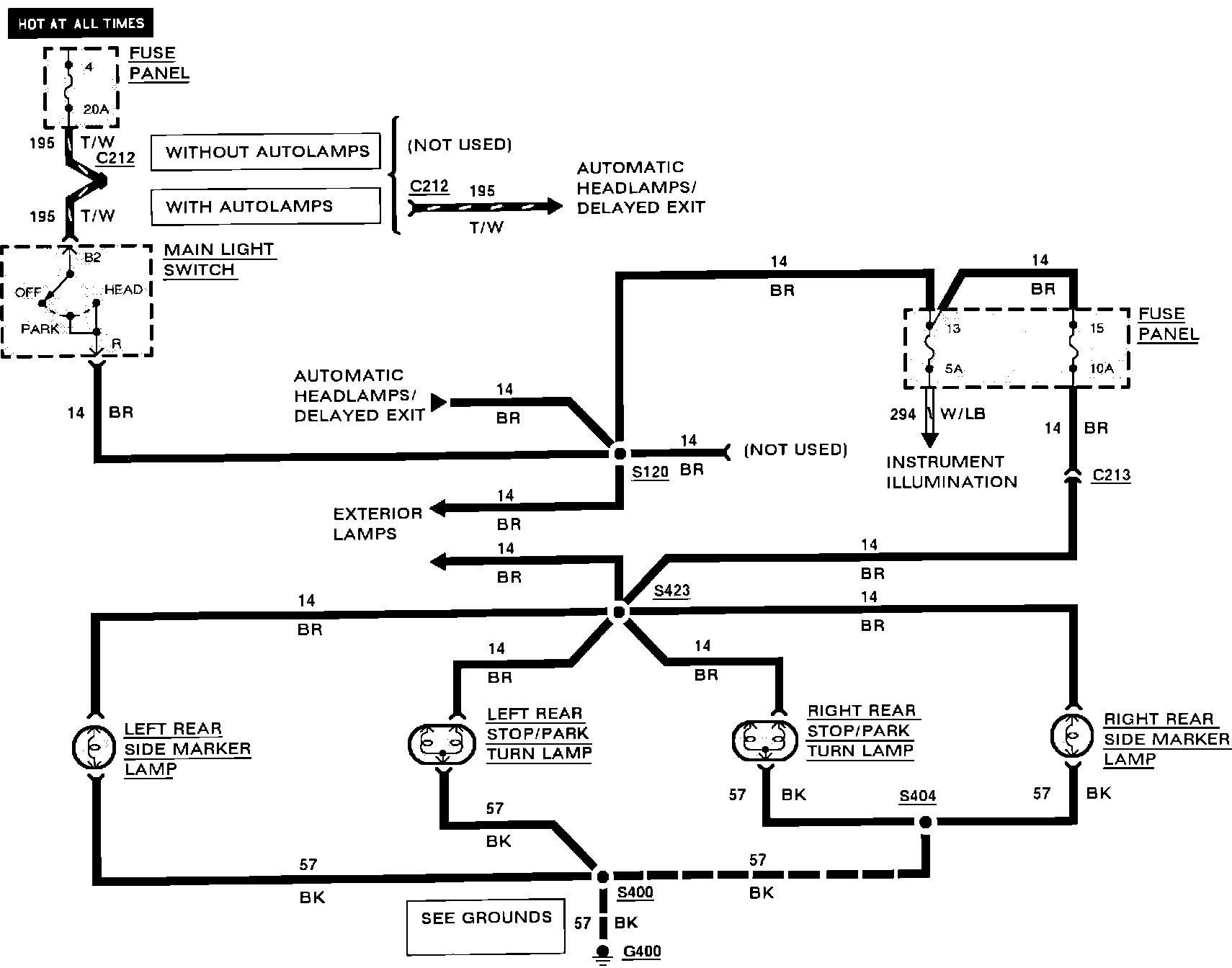

Exterior Lamps Less Diagnostic Warning:
