X - Integrated Relay Control Module
>>
X40 - X43
X40 - X43

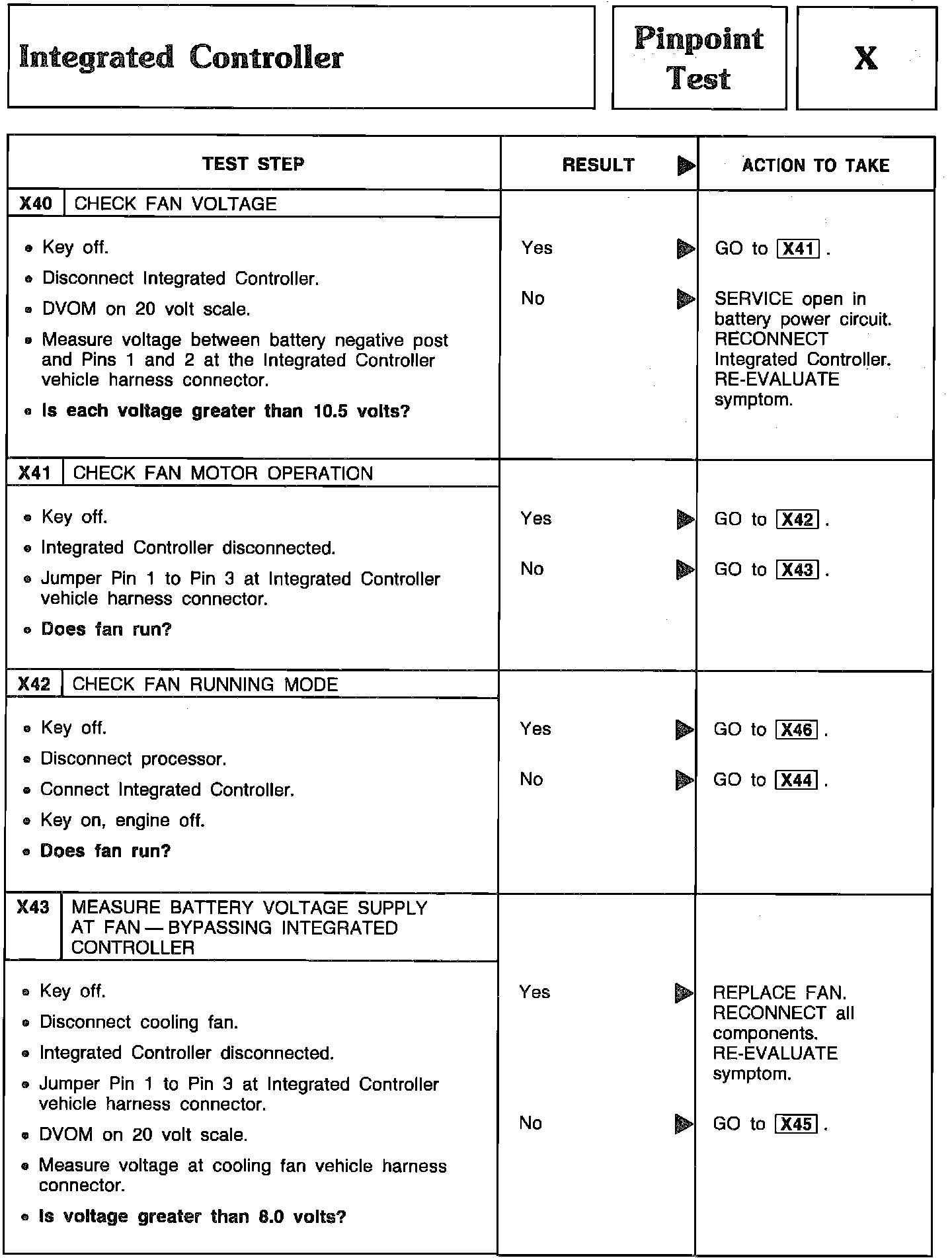

Pinpoint Test X40 Thru X43 - Integrated Controller:
