Home >> Mercury >> 1990 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> KC - Air Management System - AM1/AM2 >> KC1 - KC3

KC1 - KC3

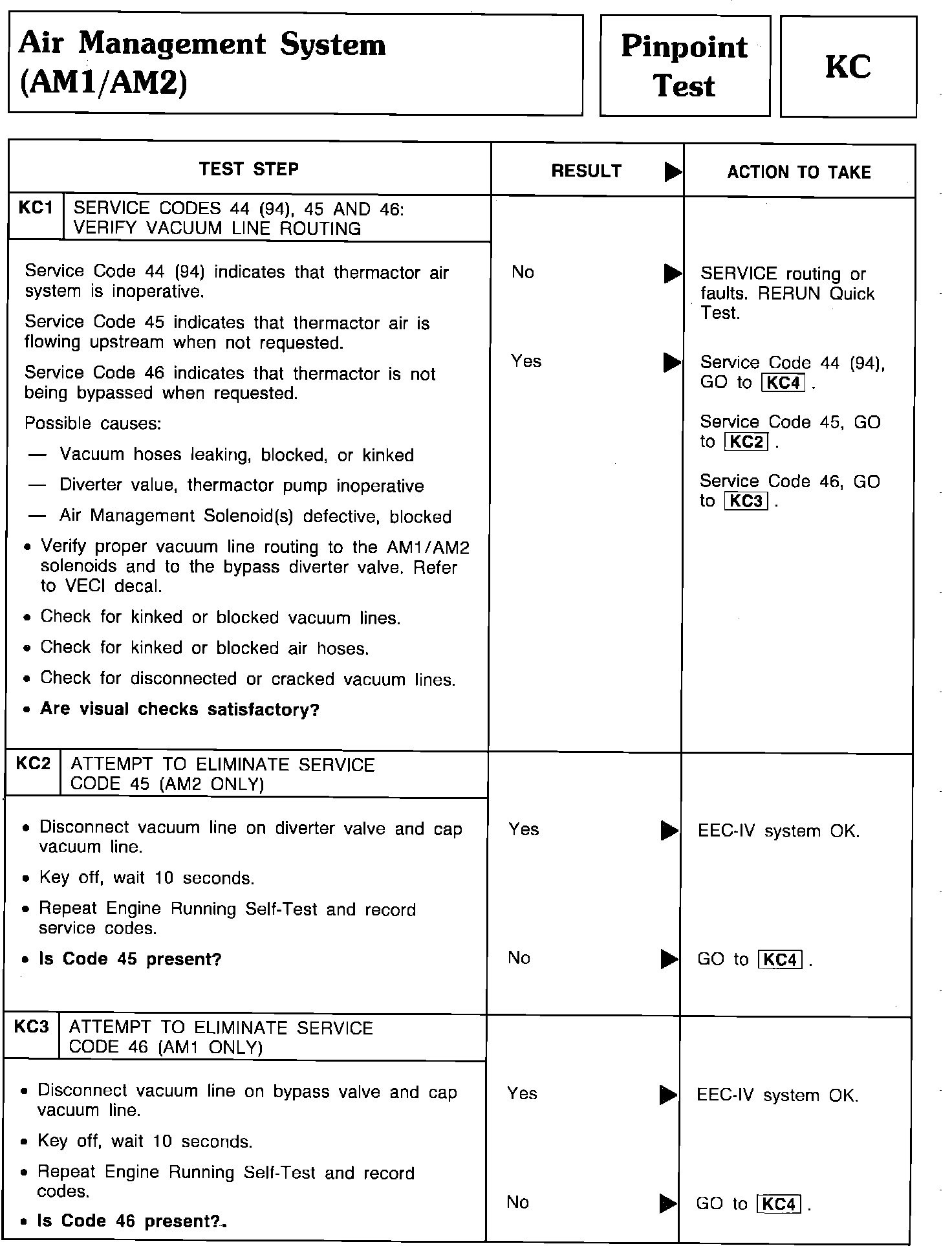

Pinpoint Test KC1 Thru KC3 - Air Management System:
