Home >> Mercury >> 1990 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting System >> System Diagram

System Diagram

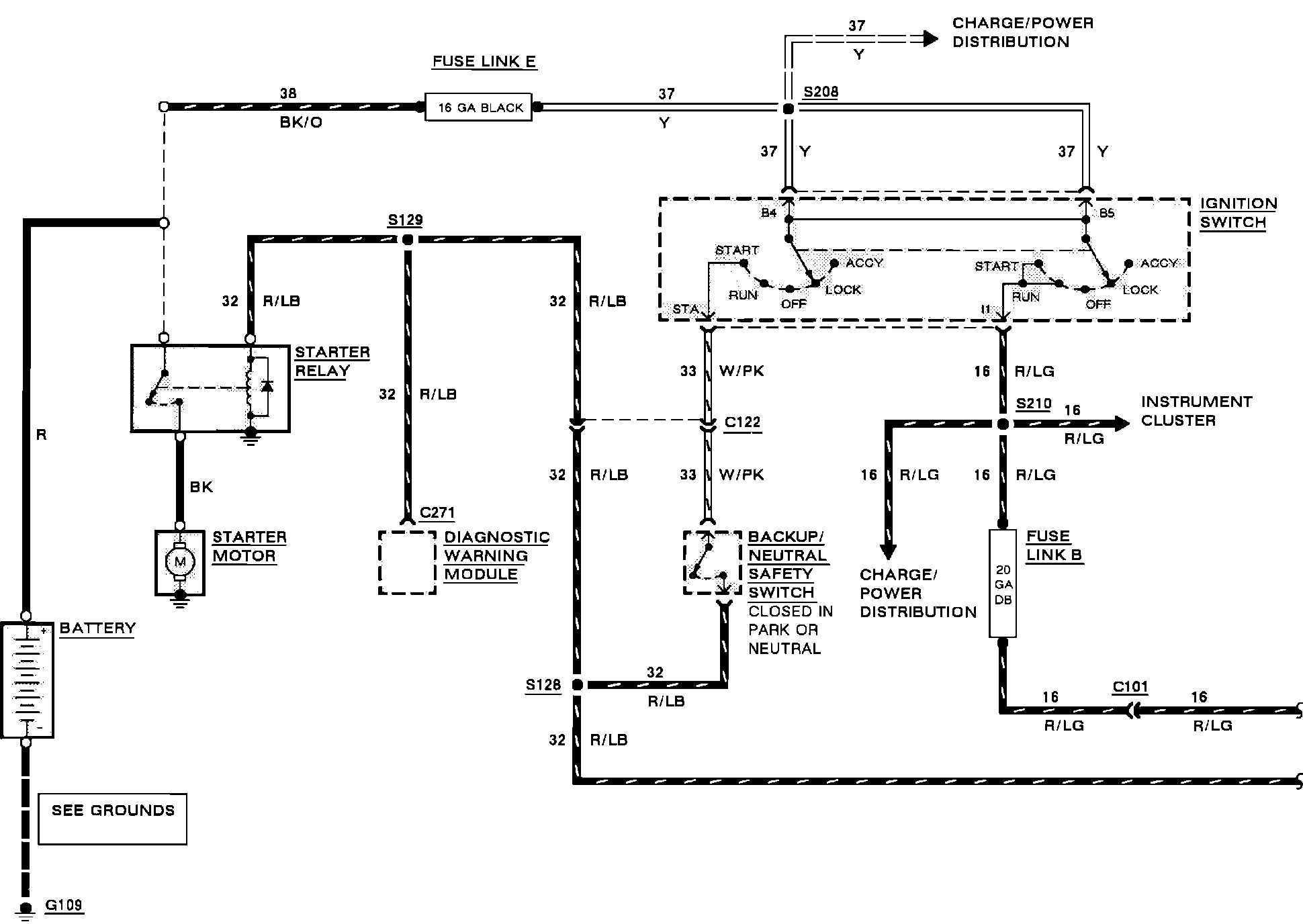

Starting & Ignition Systems:

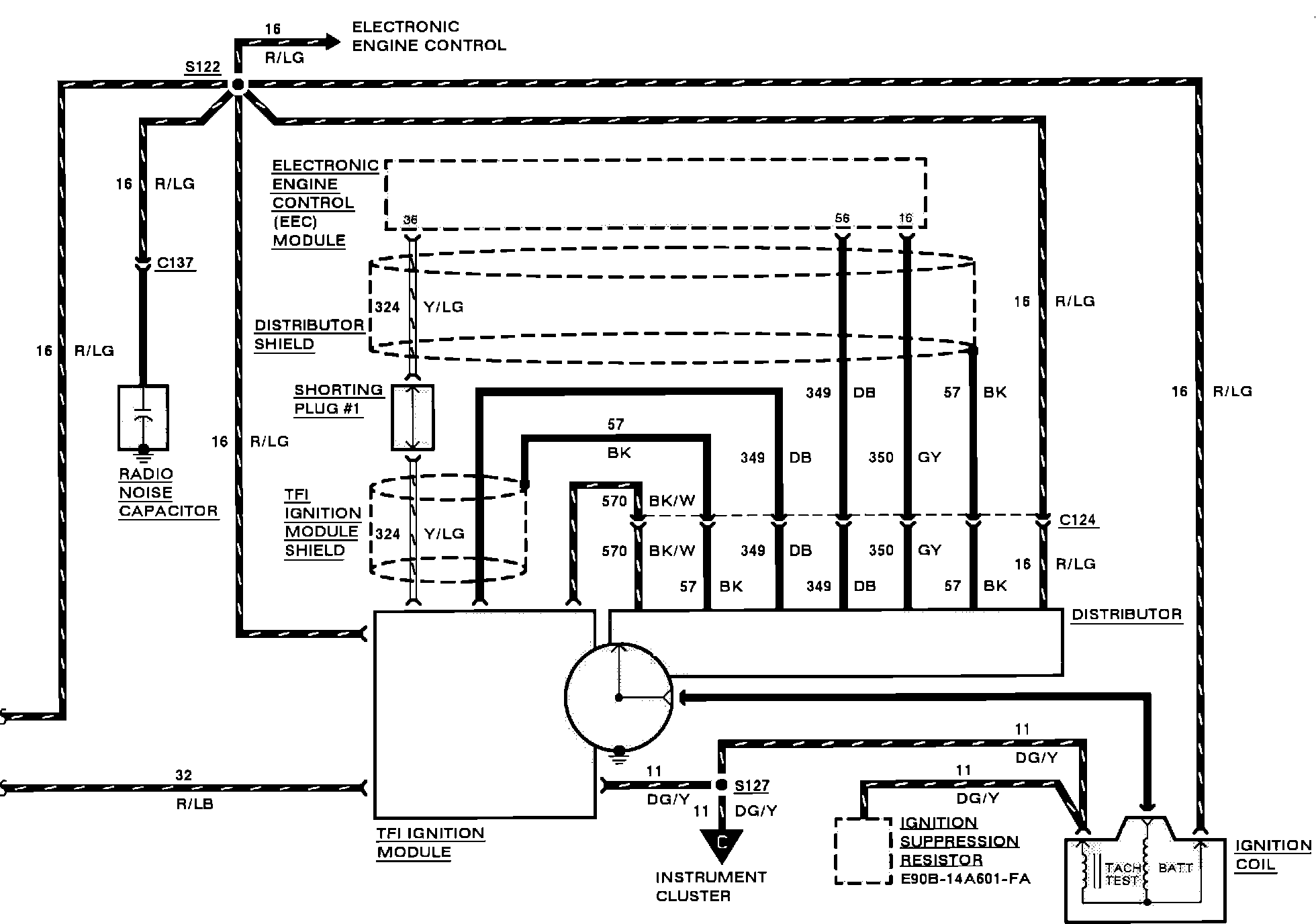

Starting & Ignition Systems:
