Rear Door Window Regulator: Service and Repair

Removal

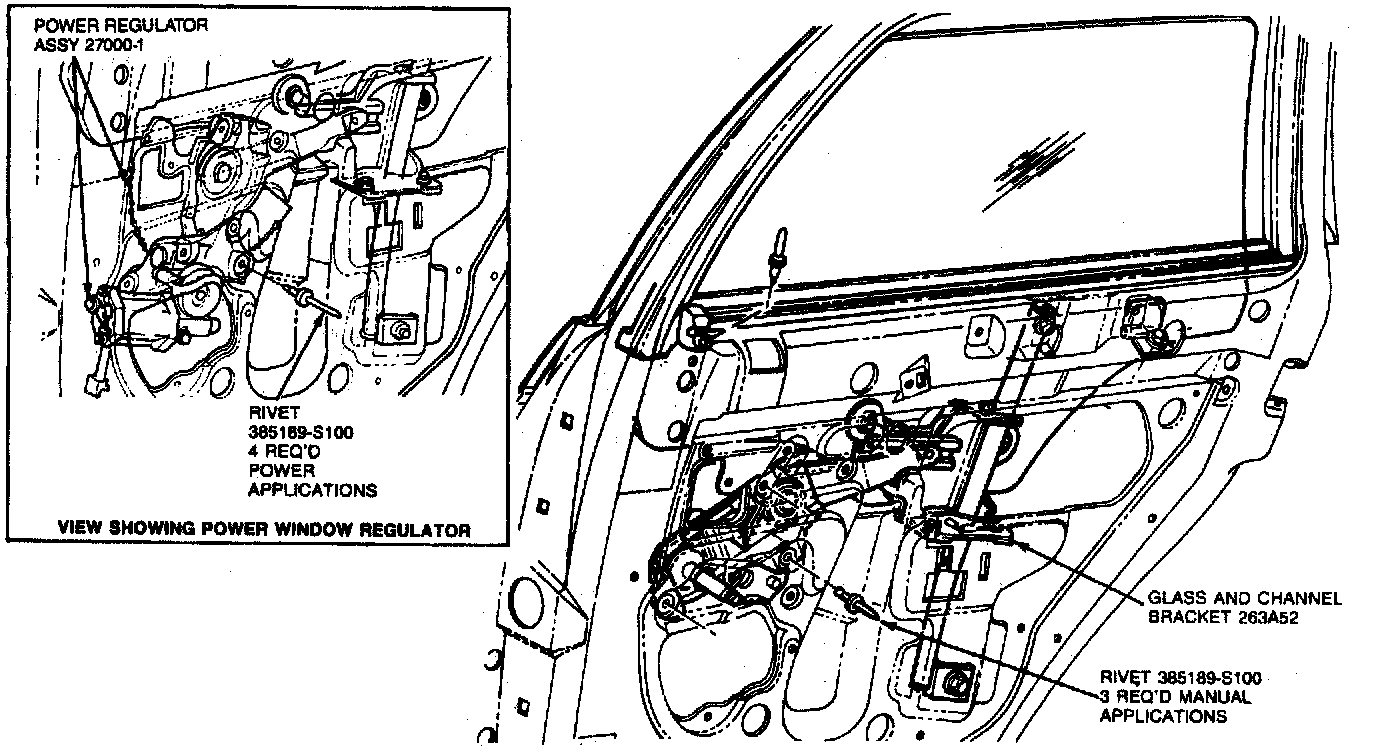

1. Remove door trim panel and watershield. Doors
2. Prop glass in full-up position.
3. Remove three rivets (Manual windows) or four rivets (power windows) attaching regulator mounting plate assembly to door inner panel.
4. Slide regulator arm plastic guides out of C-channel, and disconnect power wiring connector lift.
5. Remove window regulator from door.

NOTE: Use access hole in door inner panel for removal and installation. Refer to Power Window Regulator - Service and Repair

Installation

1. Install window regulator through the access hole in the rear door and slide regulator arm plastic guides into glass bracket C-channel.
2. Install rivets using Heavy Duty Riveter D80L-23200-A or equivalent, or 1/4-20 x 1/2-inch screw and washer assemblies and 1/4-20 nut and washer assemblies to secure regulator mounting plate to door inner panel.

NOTE: Equivalent metric retainers may be used.

3. Cycle glass to check for smooth operation.
4. Install watershield and door trim panel.
