Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Diagnosis By Symptom >> Steering Wheel Not Centered Properly

Steering Wheel Not Centered Properly

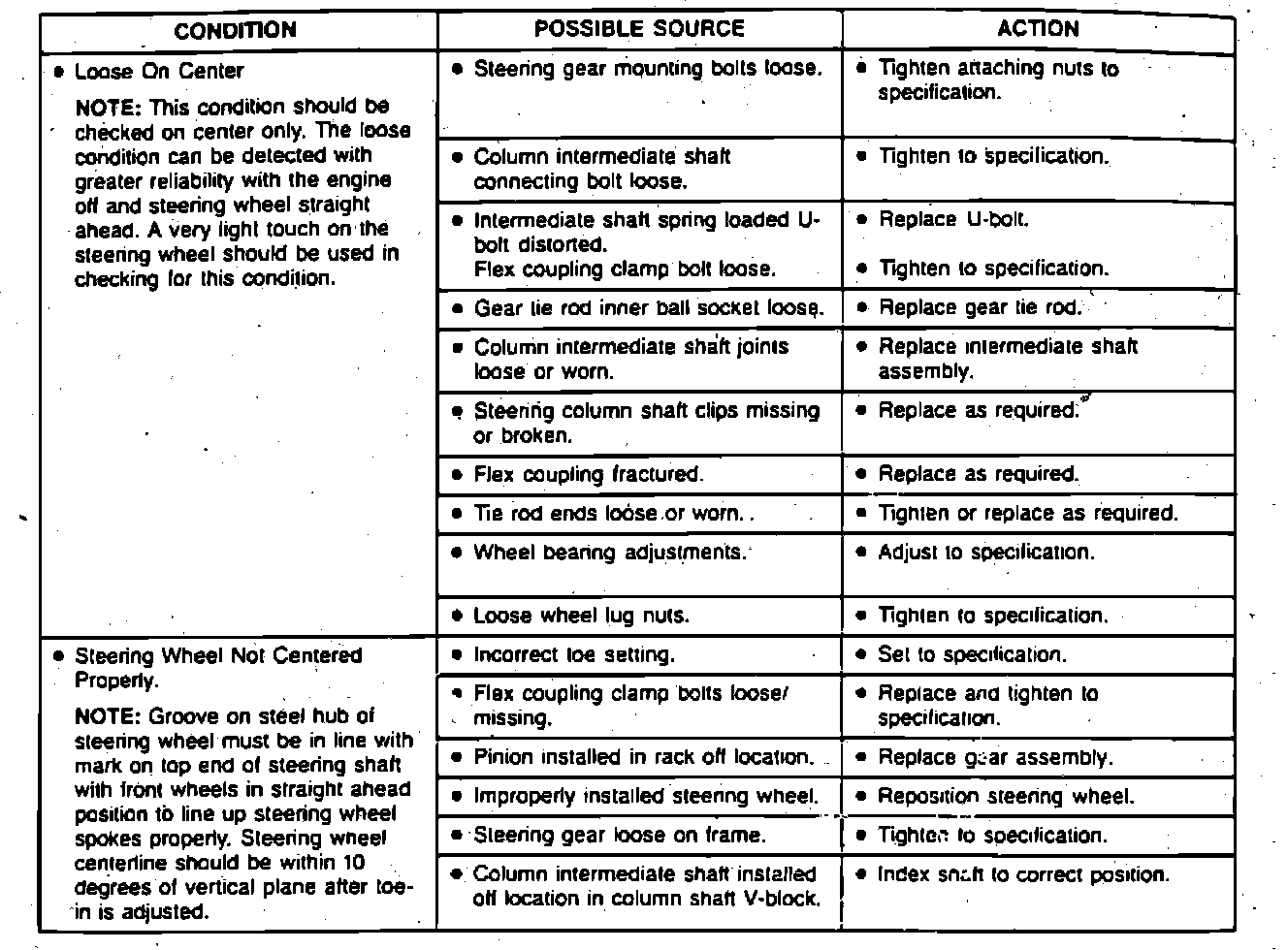

Fig. 4 Steering System Troubleshooting (Part 3 Of 8):
