Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Diagnosis By Symptom >> Electrical Component Diagnosis >> A16 - A18

A16 - A18

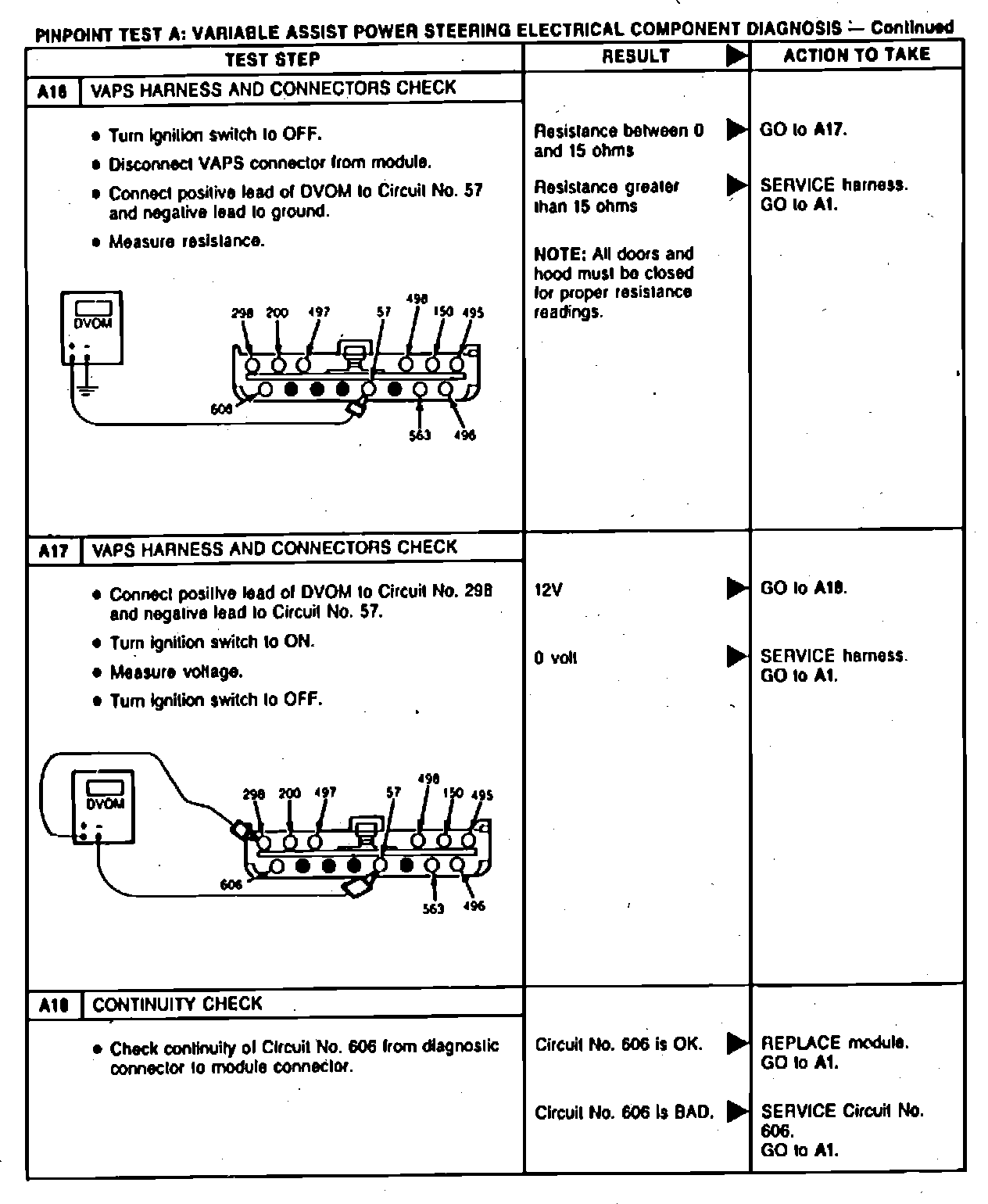

Fig. 10 Electrical Component Diagnosis (Part 11 Of 13):
