Power Steering Line/Hose: Description and Operation

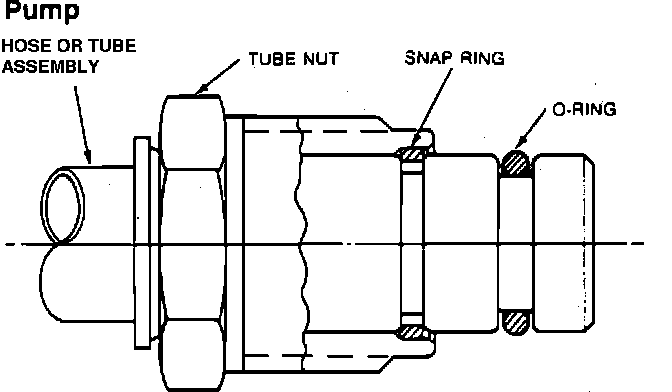

Pump Hose Connection:

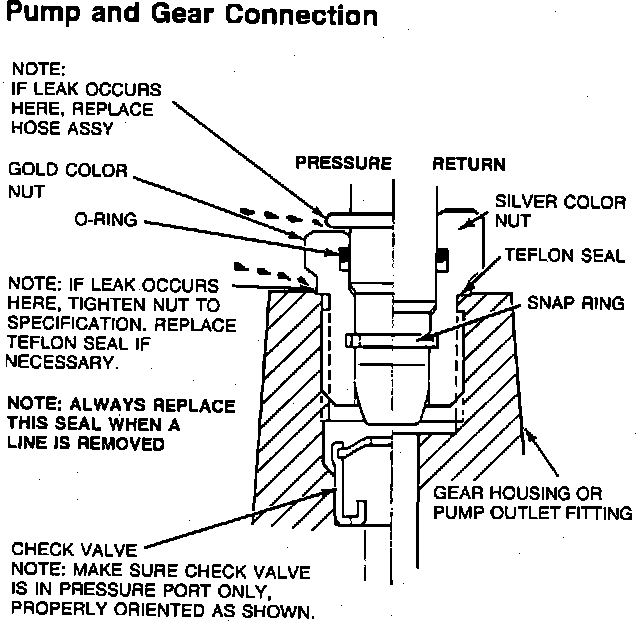

Pump And Gear Connection:
The power steering hoses use O-ring seals at the quick disconnect fittings. Note that there are two possible leak points.
The power steering hoses use O-ring seals at the quick disconnect fittings. Note that there are two possible leak points.
