1989/1990 Taurus/Sable

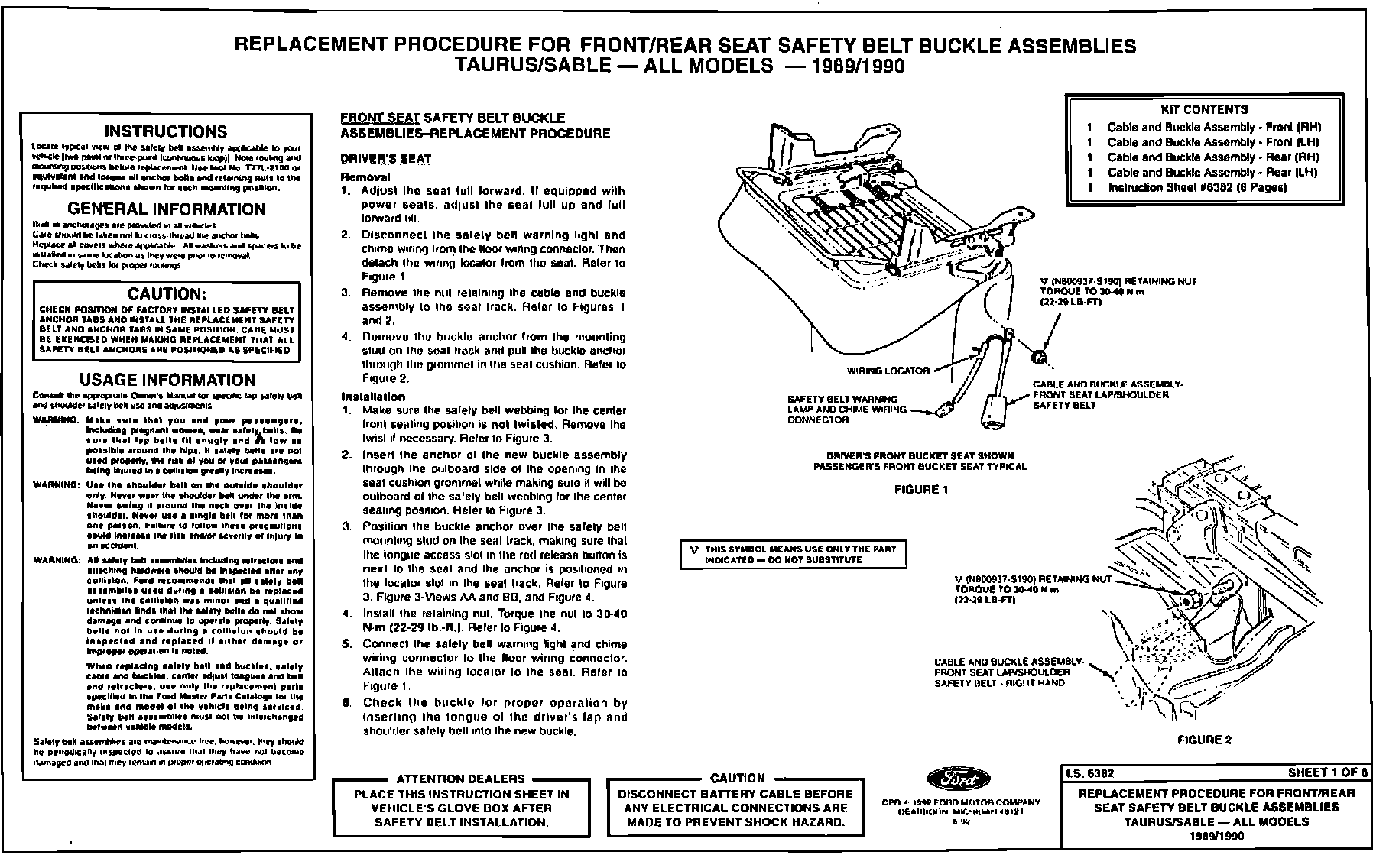

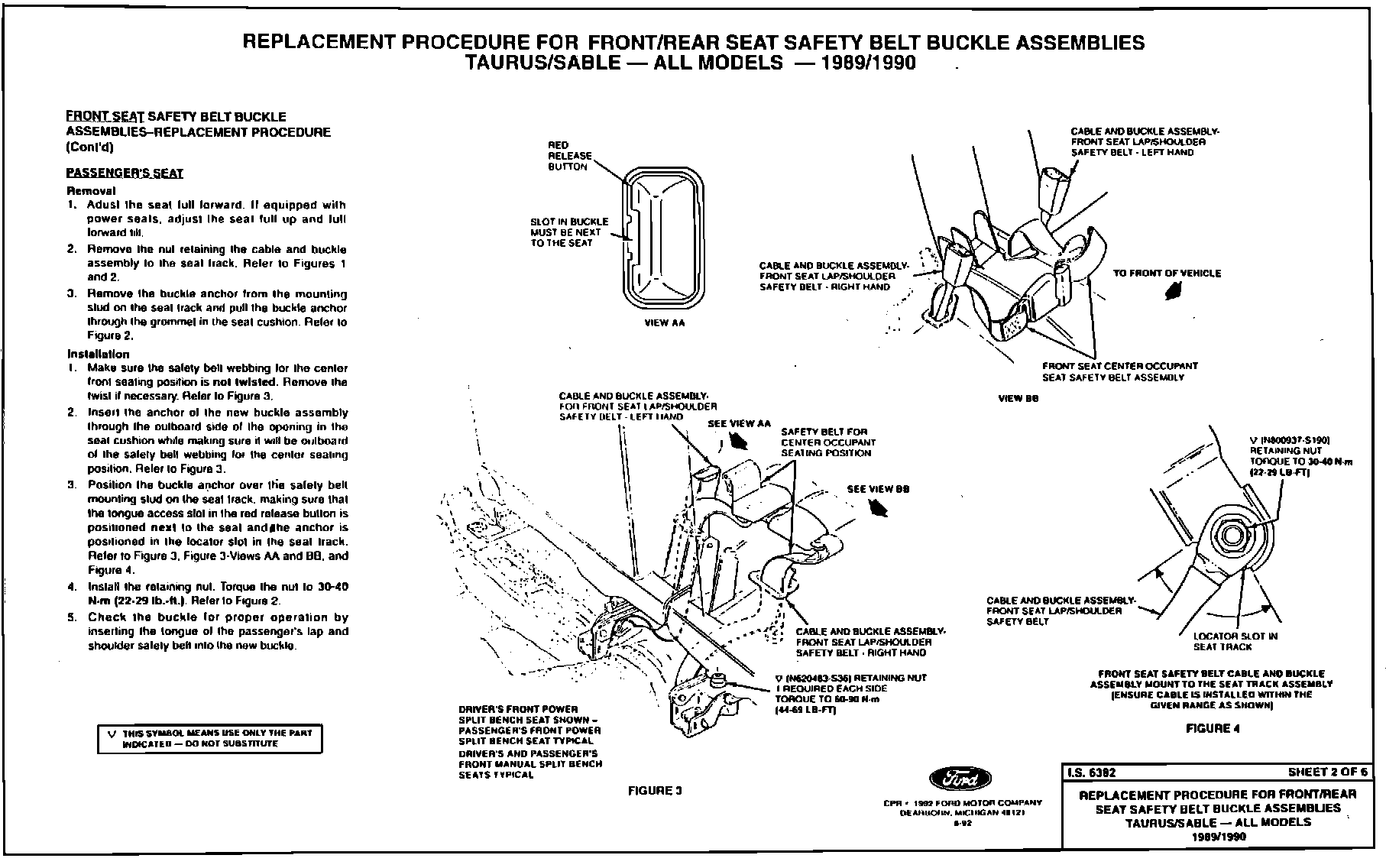

FRONT SEAT SAFETY BELT BUCKLE ASSEMBLY
- PASSENGER'S SEAT






FRONT SEAT SAFETY BELT BUCKLE ASSEMBLY
- DRIVER'S SEAT






REAR SEAT SAFETY BELT BUCKLE ASSEMBLY
- REAR SEAT CUSHION - ALL MODELS
- REAR SEAT BACK - SEDAN

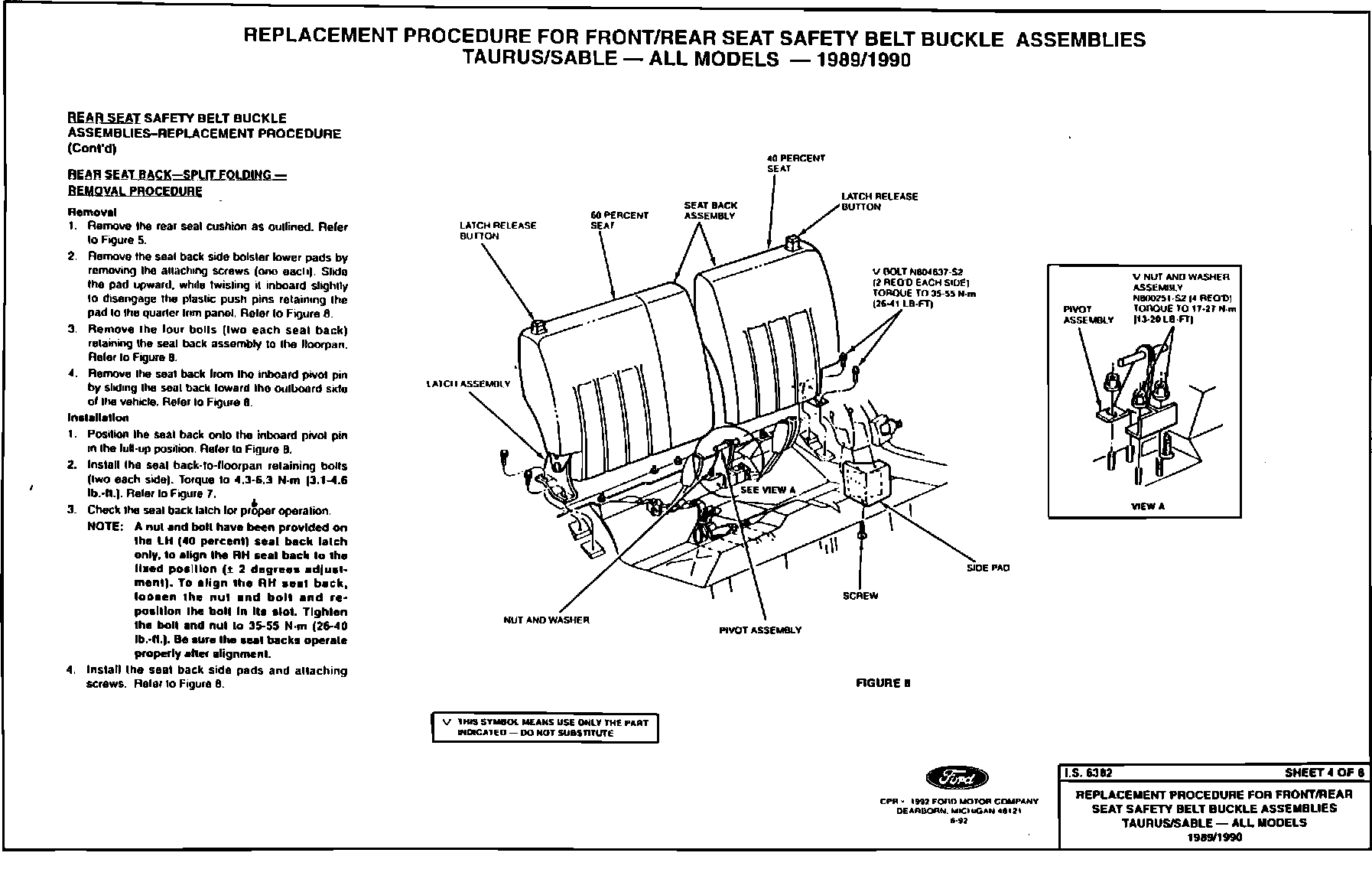

REAR SEAT SAFETY BELT BUCKLE ASSEMBLY
- SPLIT FOLDING






REAR SEAT SAFETY BELT BUCKLE ASSEMBLY
- DRIVER'S SIDE REAR
- PASSENGER'S SIDE REAR

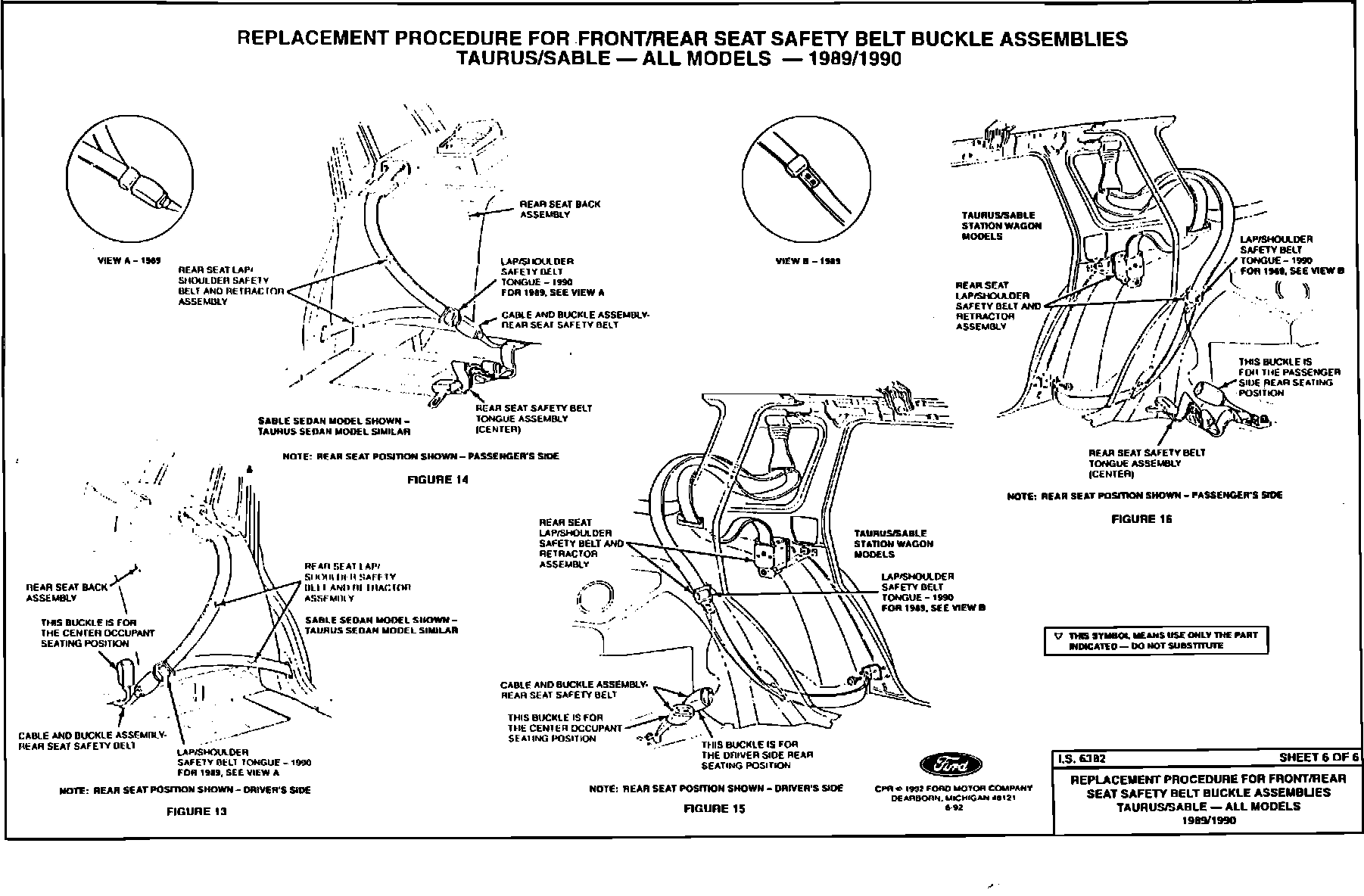

FIGURE 13, 14, 15, 16
