Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Manufacturer Code Charts >> 8 Flashes - Fwd Crash Sen Improperly Attached/Grounded

8 Flashes - Fwd Crash Sen Improperly Attached/Grounded

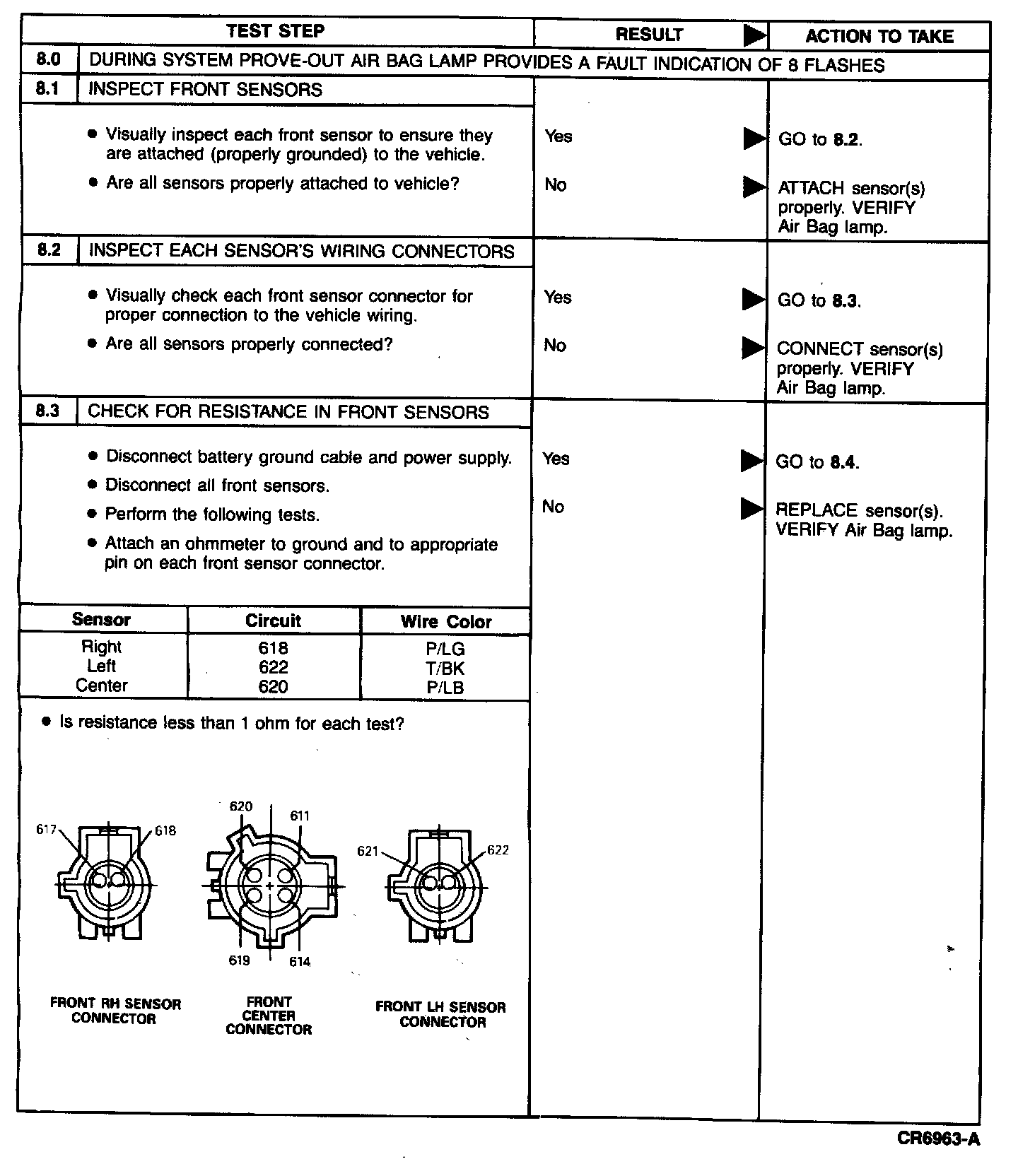

8.0-8.3:

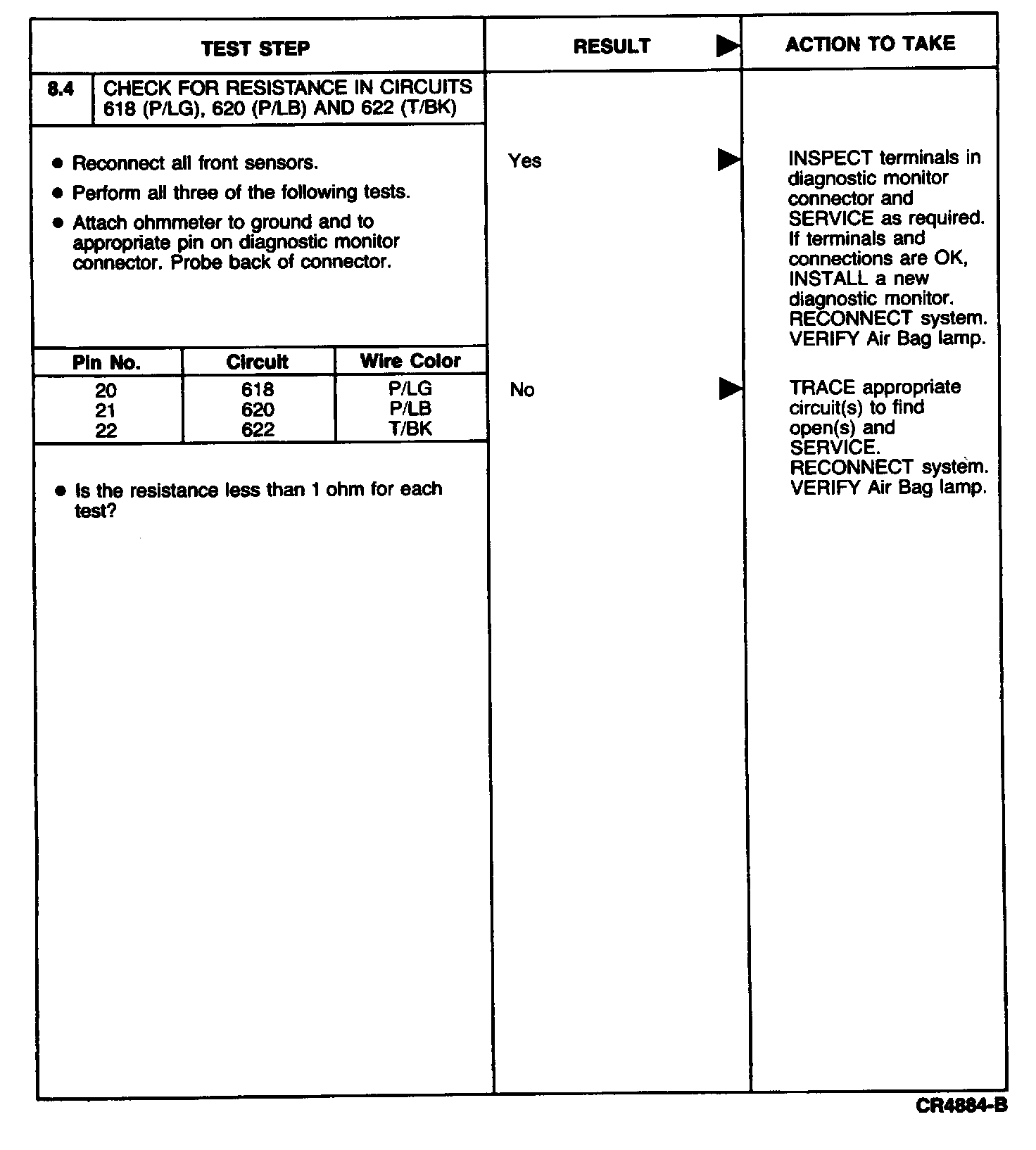

8.4:
