Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Relay Module >> Technical Service Bulletins >> Integrated Relay Control Module Diagnosis - Revision >> Pinpoint X - Schematic 2.5L CFI, Clc and EFI AXOD Test

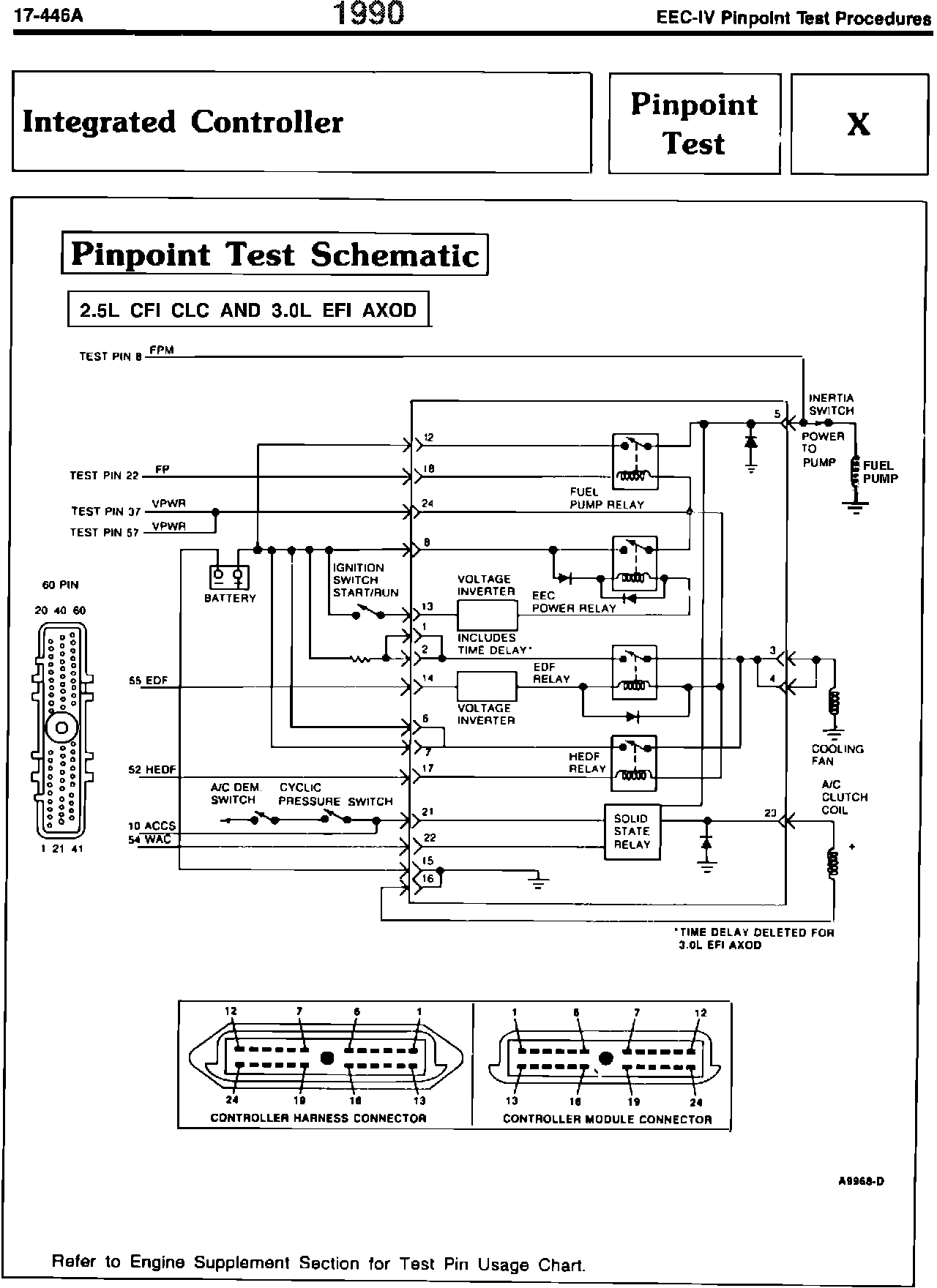

Pinpoint X - Schematic 2.5L CFI, Clc and EFI AXOD Test
