Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Relay Module >> Technical Service Bulletins >> Integrated Relay Control Module Diagnosis - Revision >> Integrated Controller Schematic 3.8L AXOD SEFI

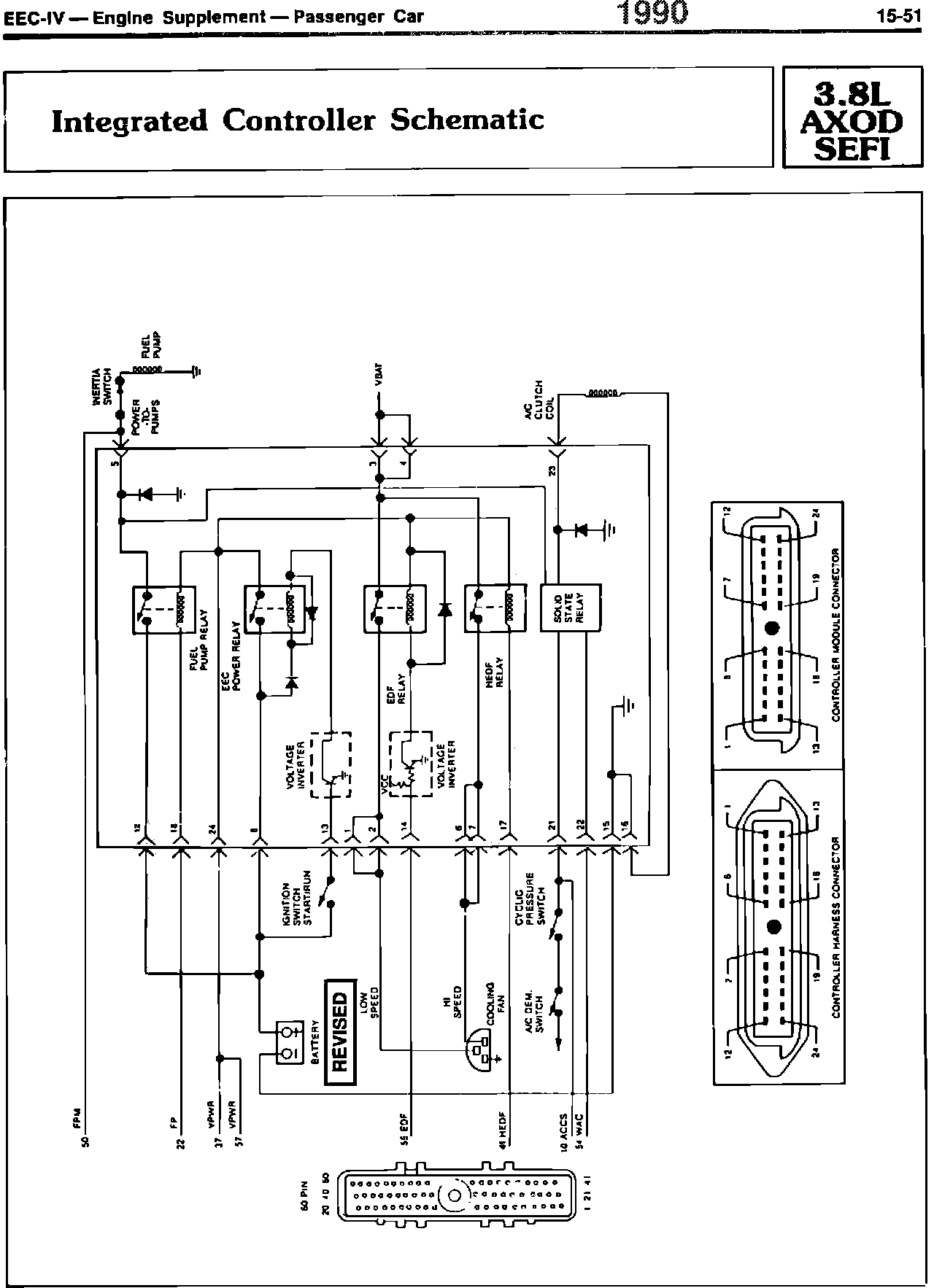

Integrated Controller Schematic 3.8L AXOD SEFI
