Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Locations

Evaporative Emissions System: Locations

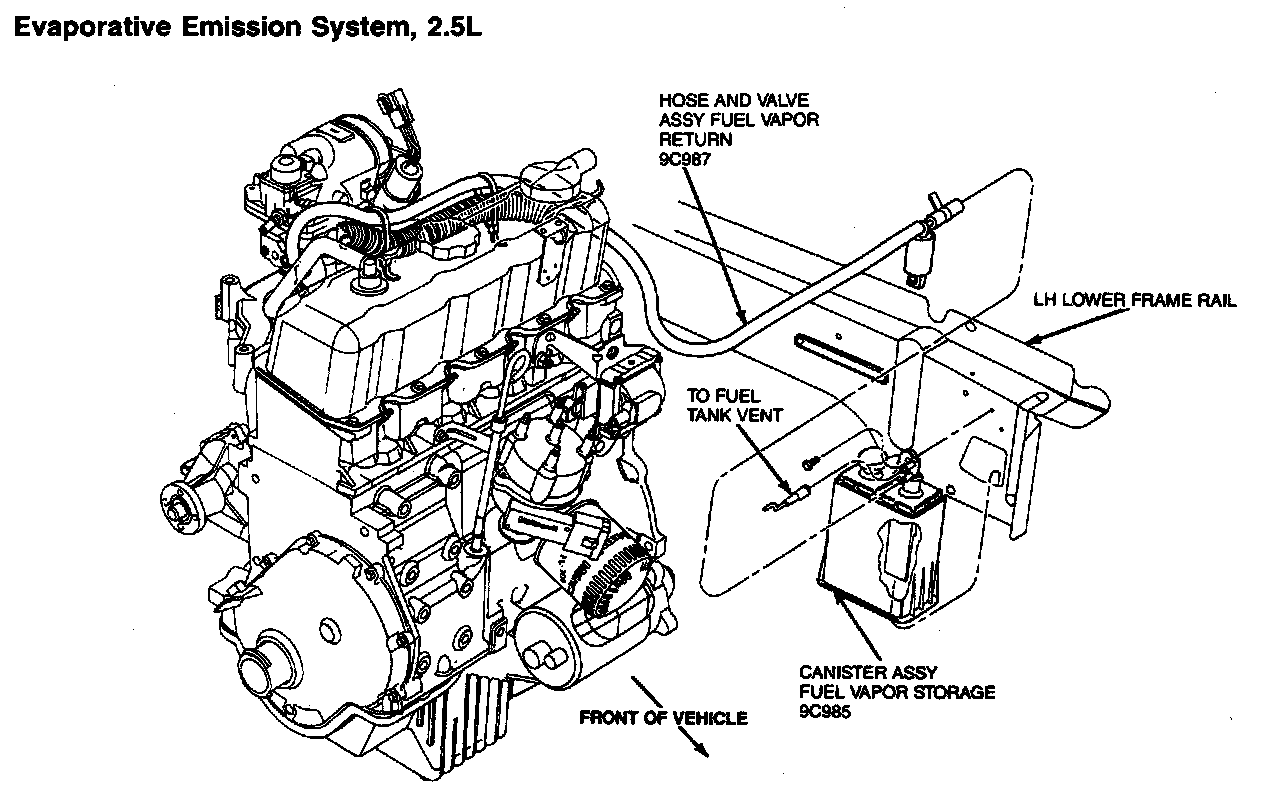

2.5 L

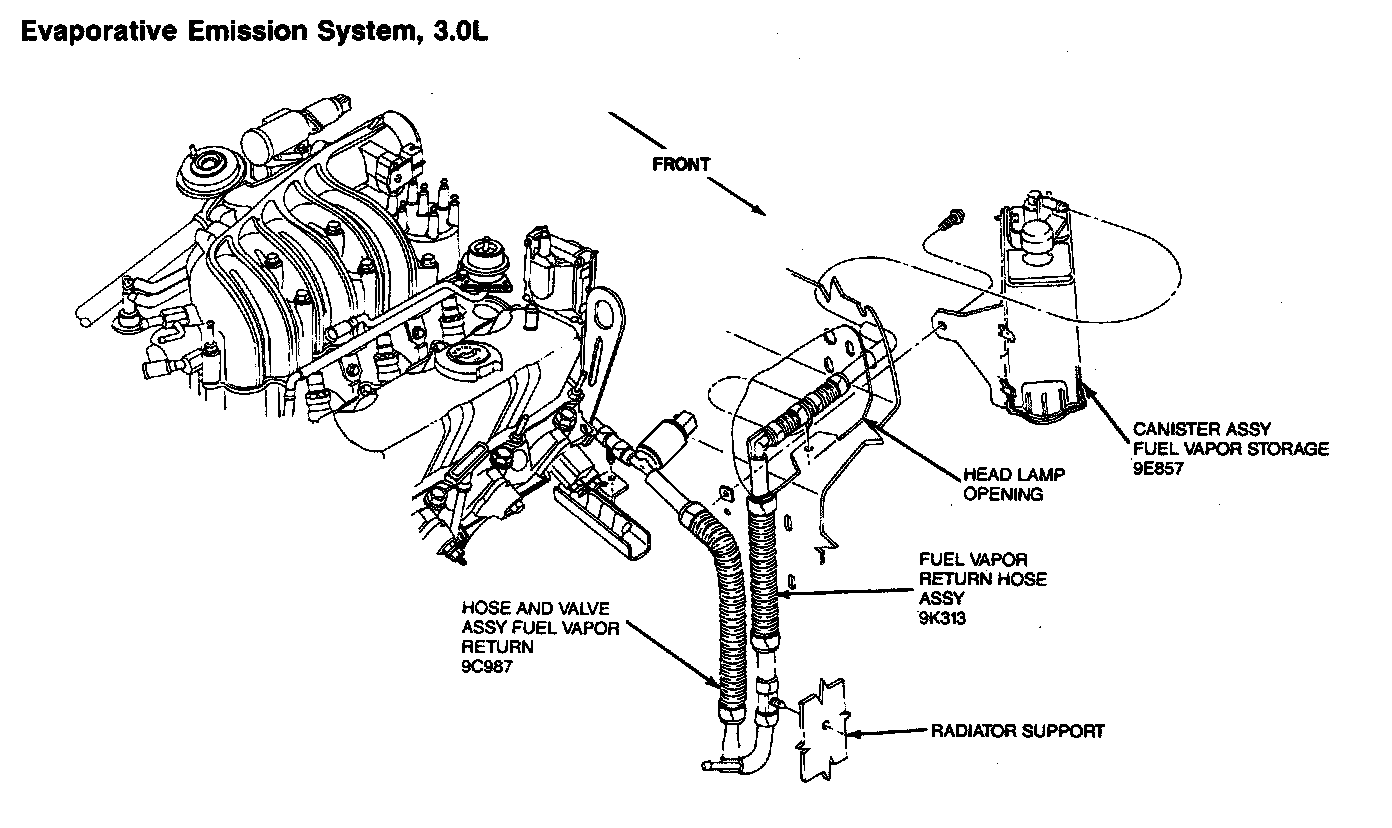

3.0 L






3.0/3.8 L
