Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Reading and Clearing Diagnostic Trouble Codes >> Reading Diagnostic Trouble Codes >> Quick Tests >> 9.0 - Symptom Diagnosis

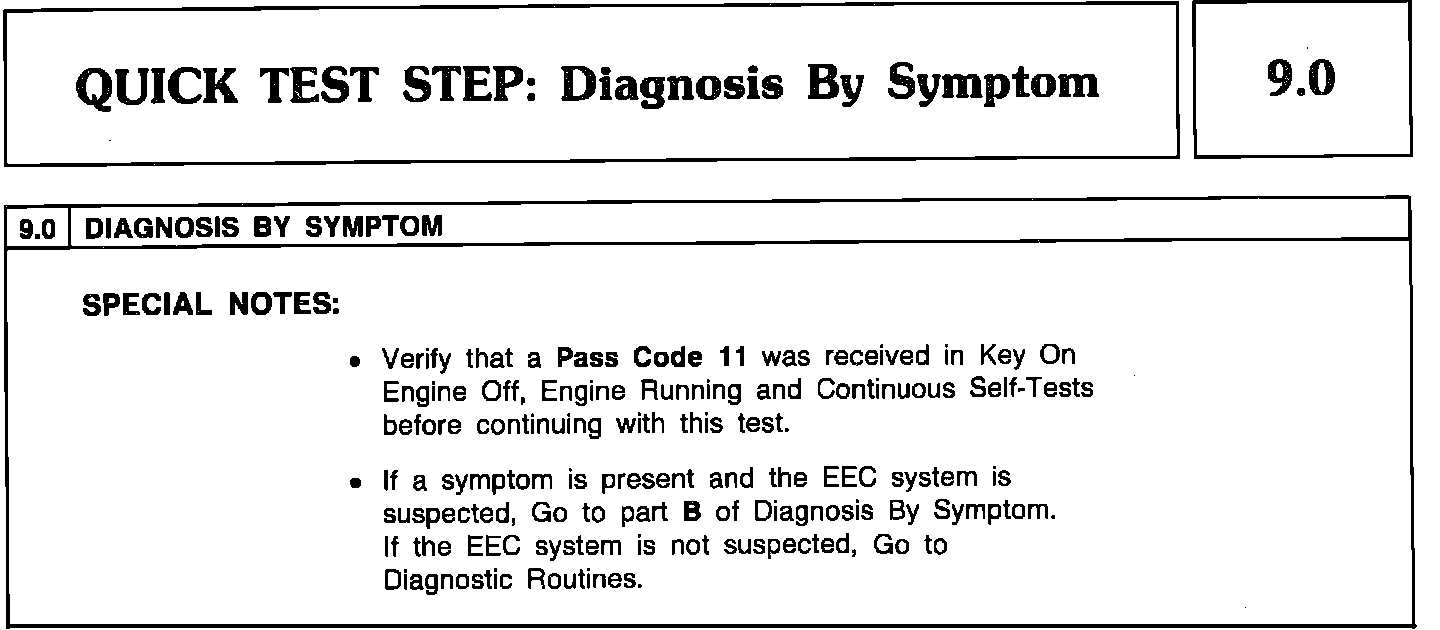

9.0 - Symptom Diagnosis

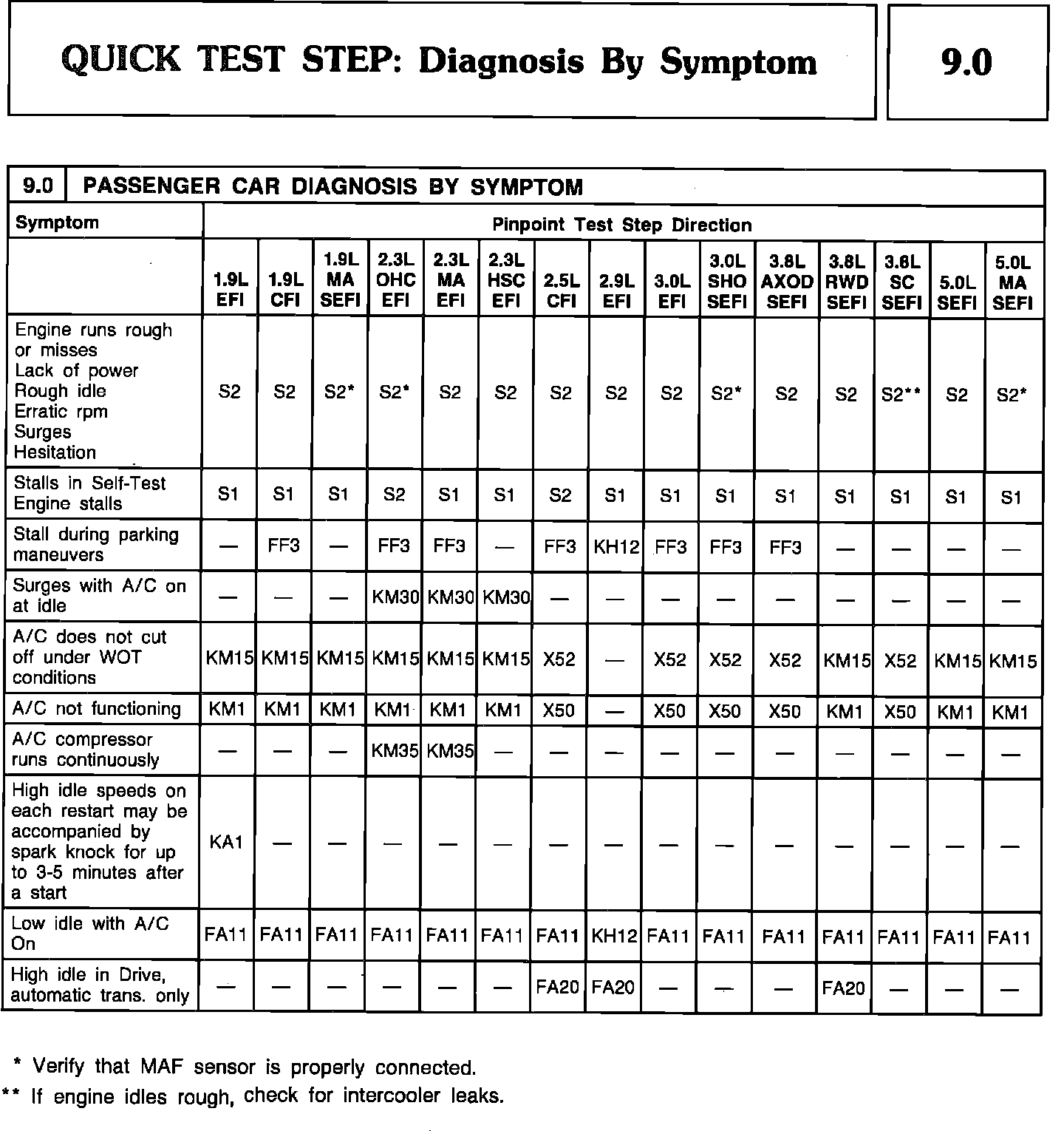

Quick Test 9.0 - Diagnosis By Symptom:

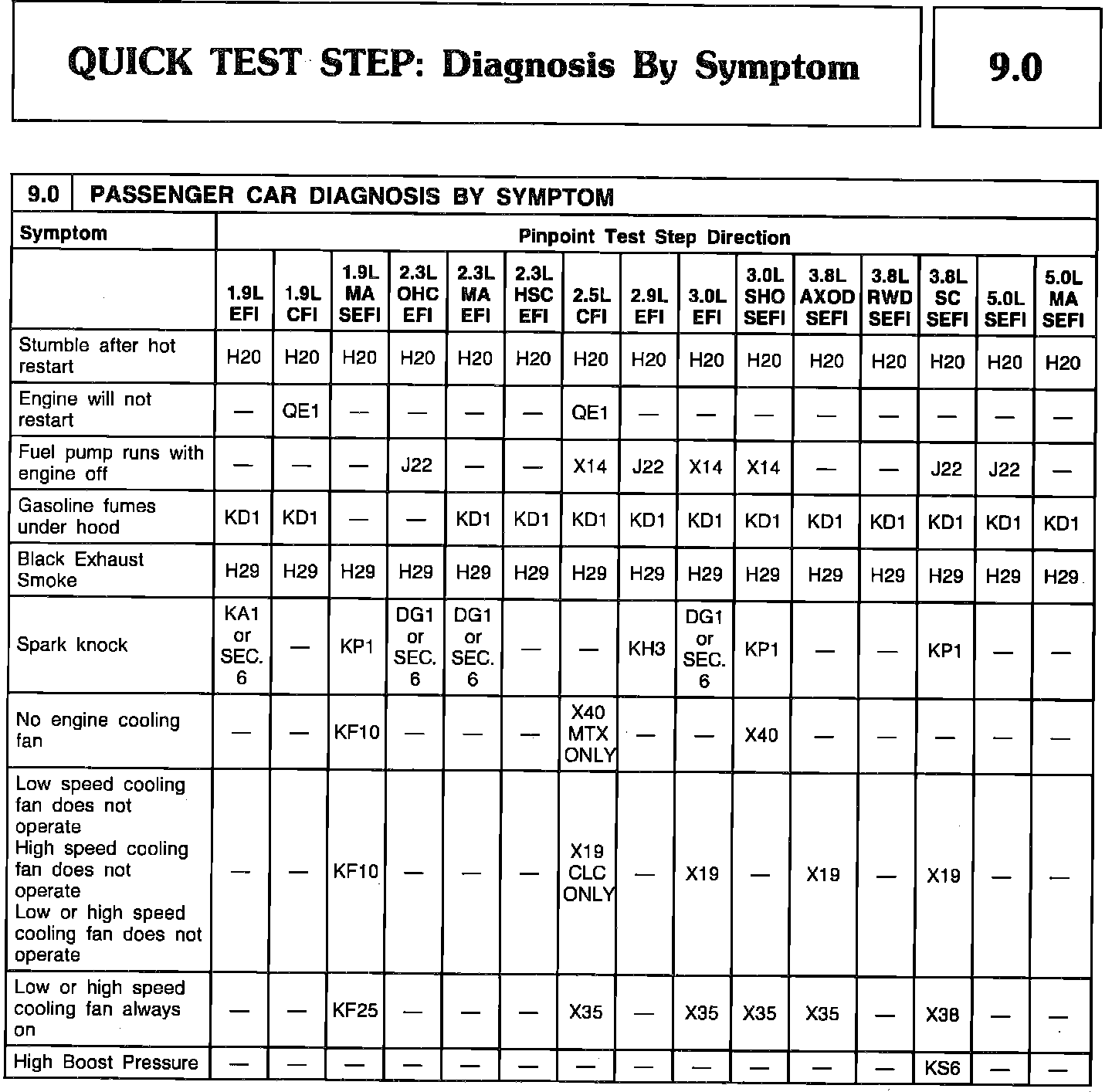

Quick Test 9.0 - Diagnosis By Symptom:

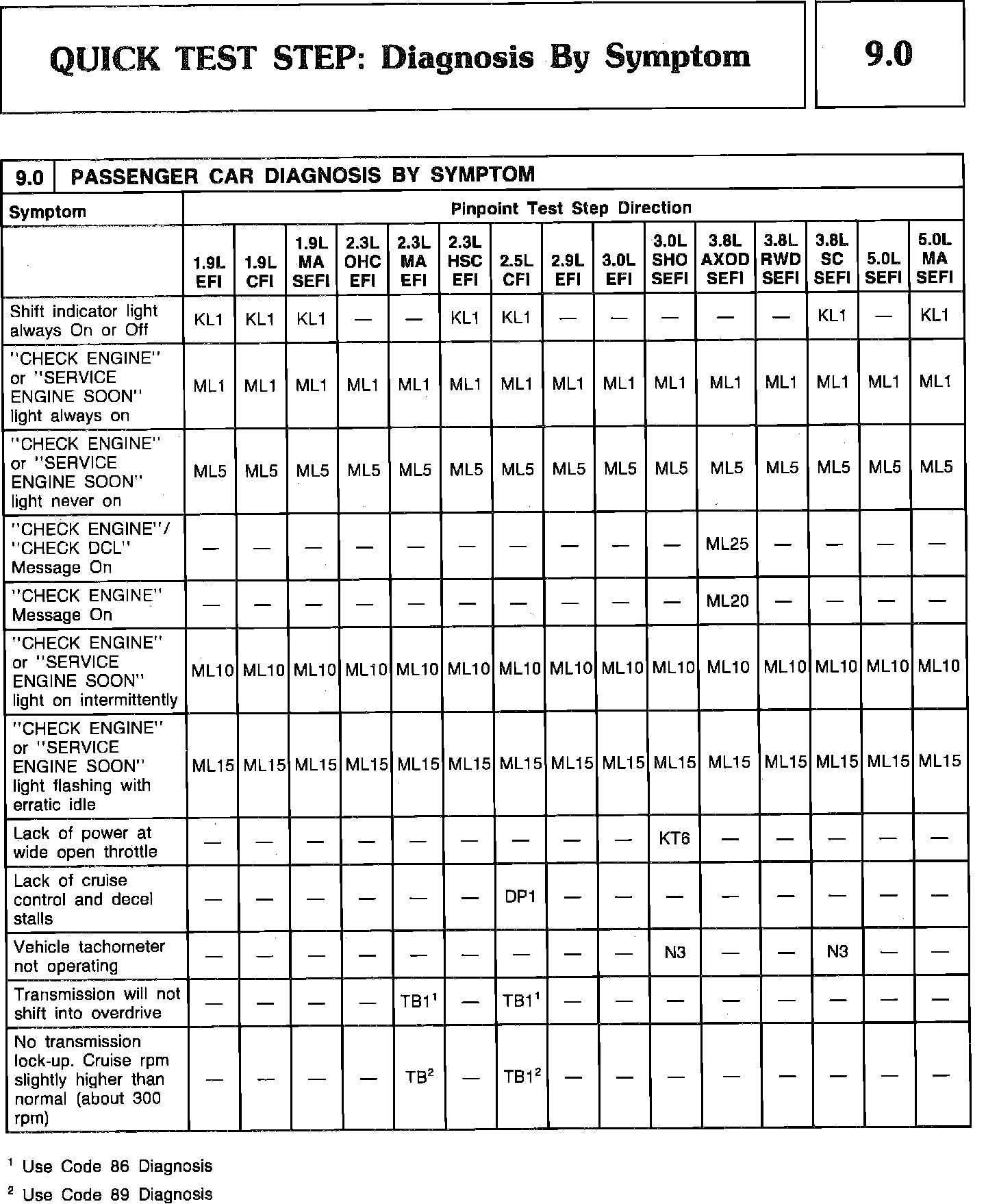

Quick Test 9.0 - Diagnosis By Symptom:



Quick Test 9.0 - Diagnosis By Symptom:
