Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> X - Integrated Relay Control Module >> X - Wiring Diagram

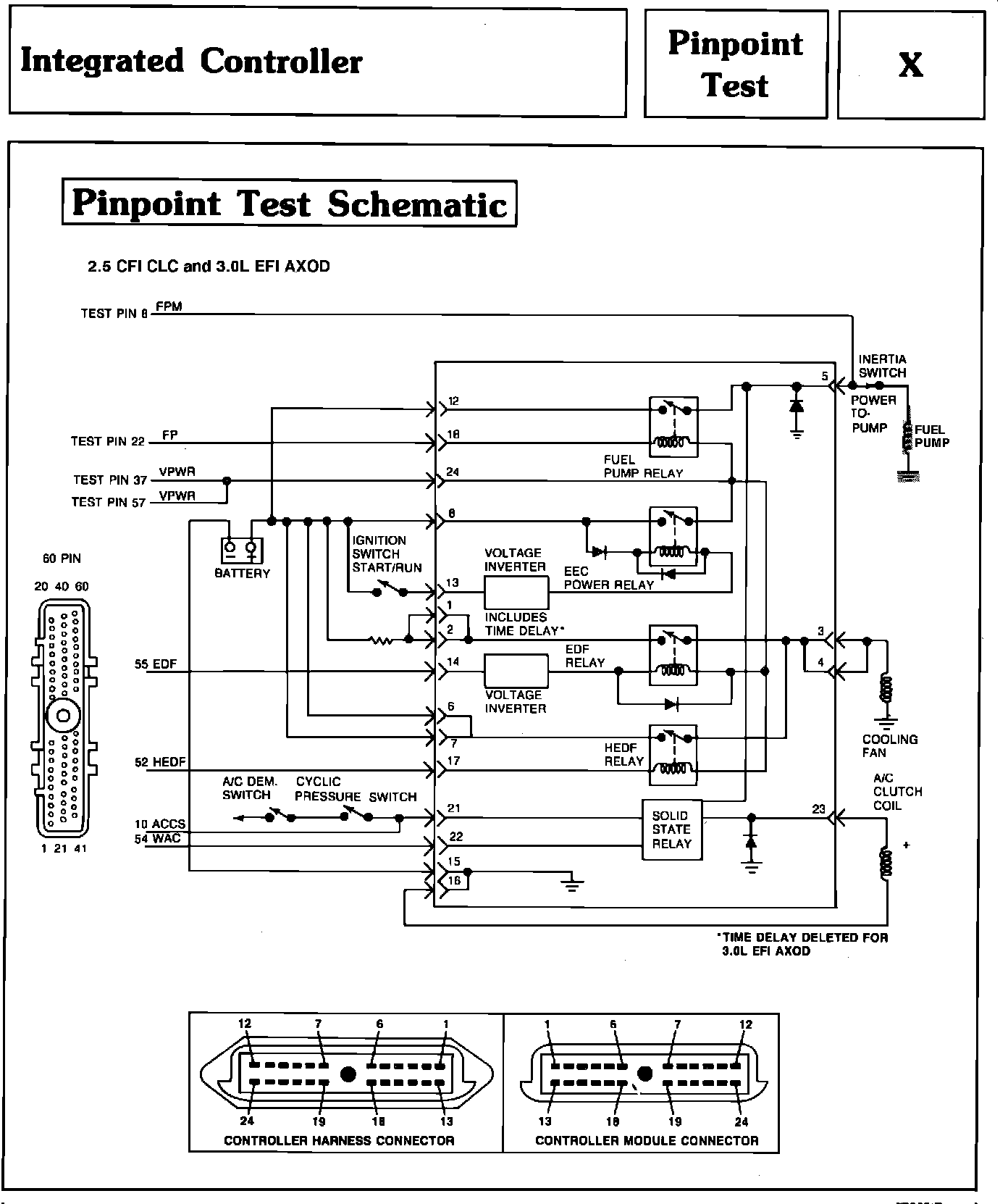

X - Wiring Diagram

Pinpoint Test X - Integrated Controller:





*** UPDATED BY TSB #906B16 03-23-90
