Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> S - System Check >> S7 - S9

S7 - S9

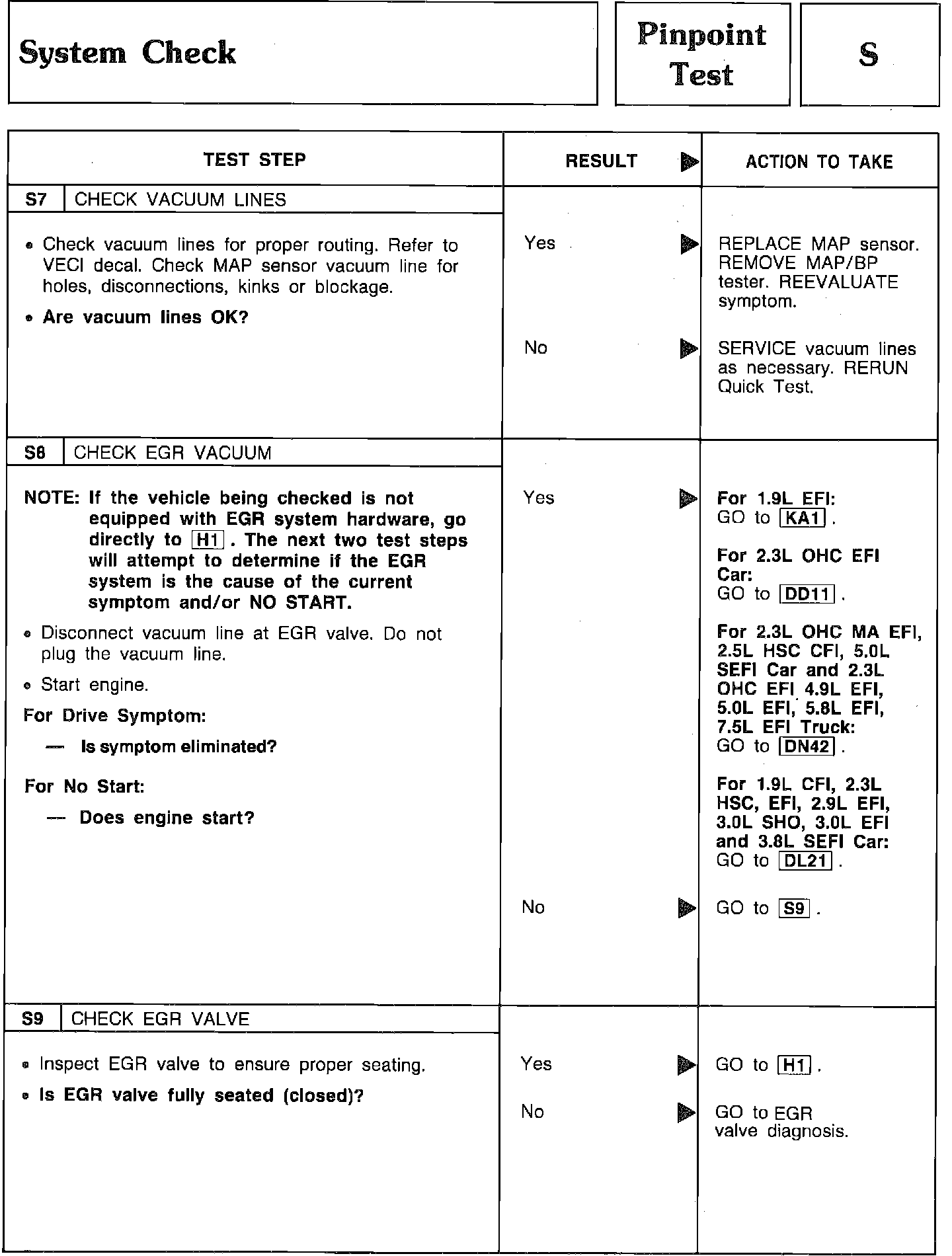

Pinpoint Test S7 Thru S9 - System Check:





*** UPDATED BY TSB # 9018B3 09-07-90
