Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> N - Ignition Diagnostic Monitor (IDM) >> N25 - N26

N25 - N26

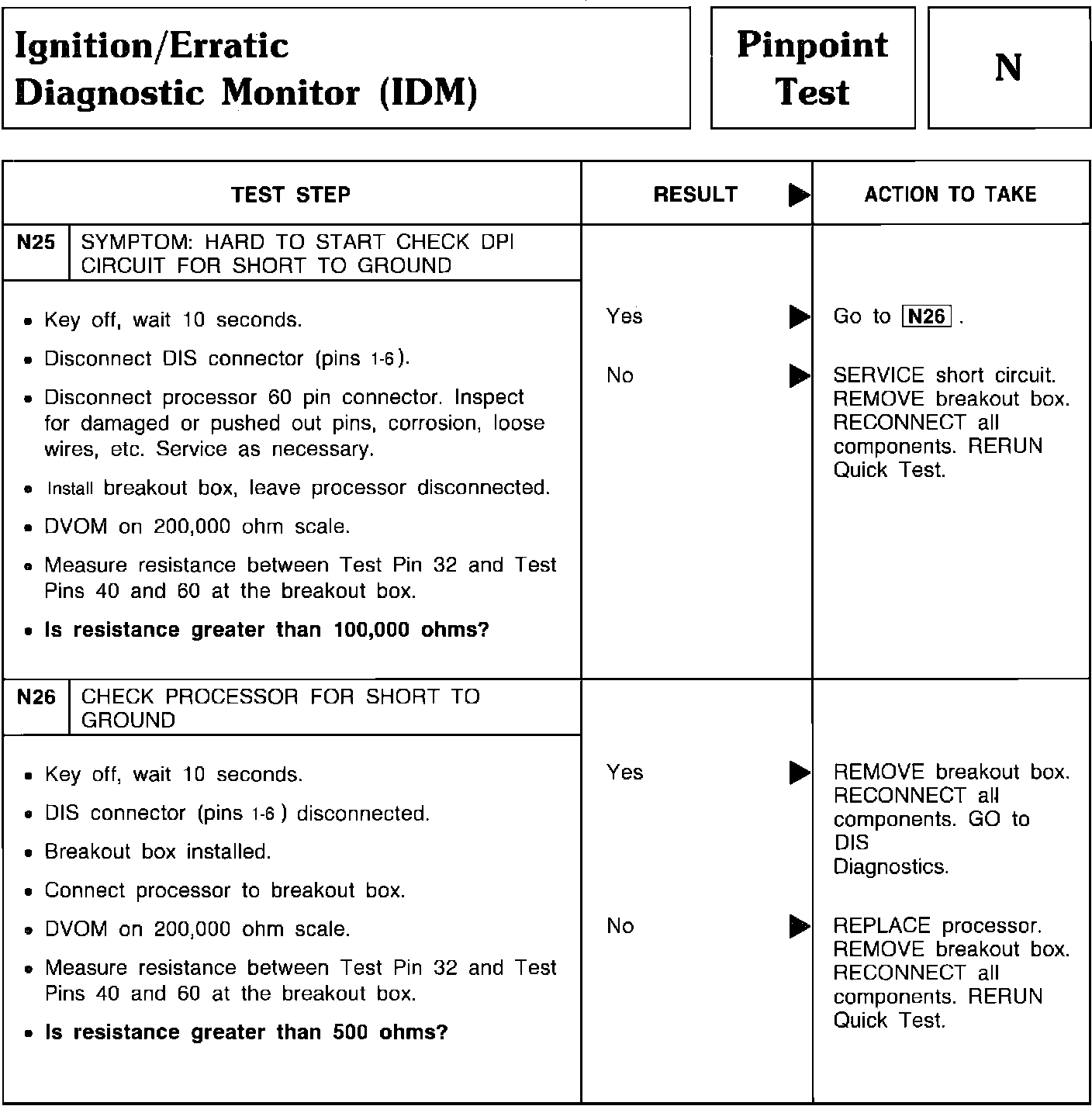

Pinpoint Test N25 & N26 - Ignition Diagnostic Monitor (IDM):





*** UPDATED BY TSB #9019B29 09-07-90
