Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> N - Ignition Diagnostic Monitor (IDM) >> N11 - N12

N11 - N12

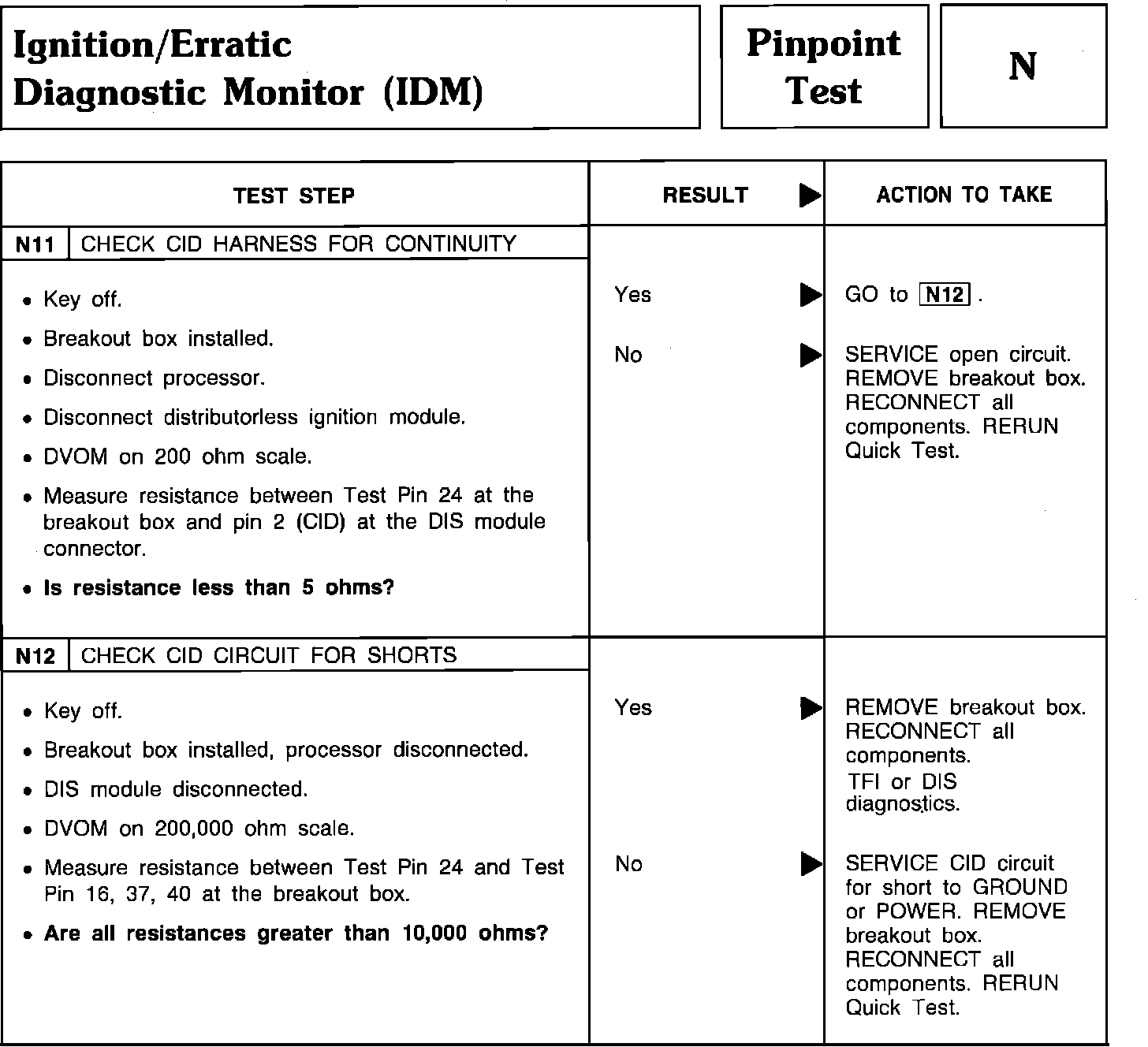

Pinpoint Test N11 & N12 - Ignition Diagnostic Monitor (IDM):
