Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> KT - Intake Air Control Valve (IAC) System >> KT6 - KT7

KT6 - KT7

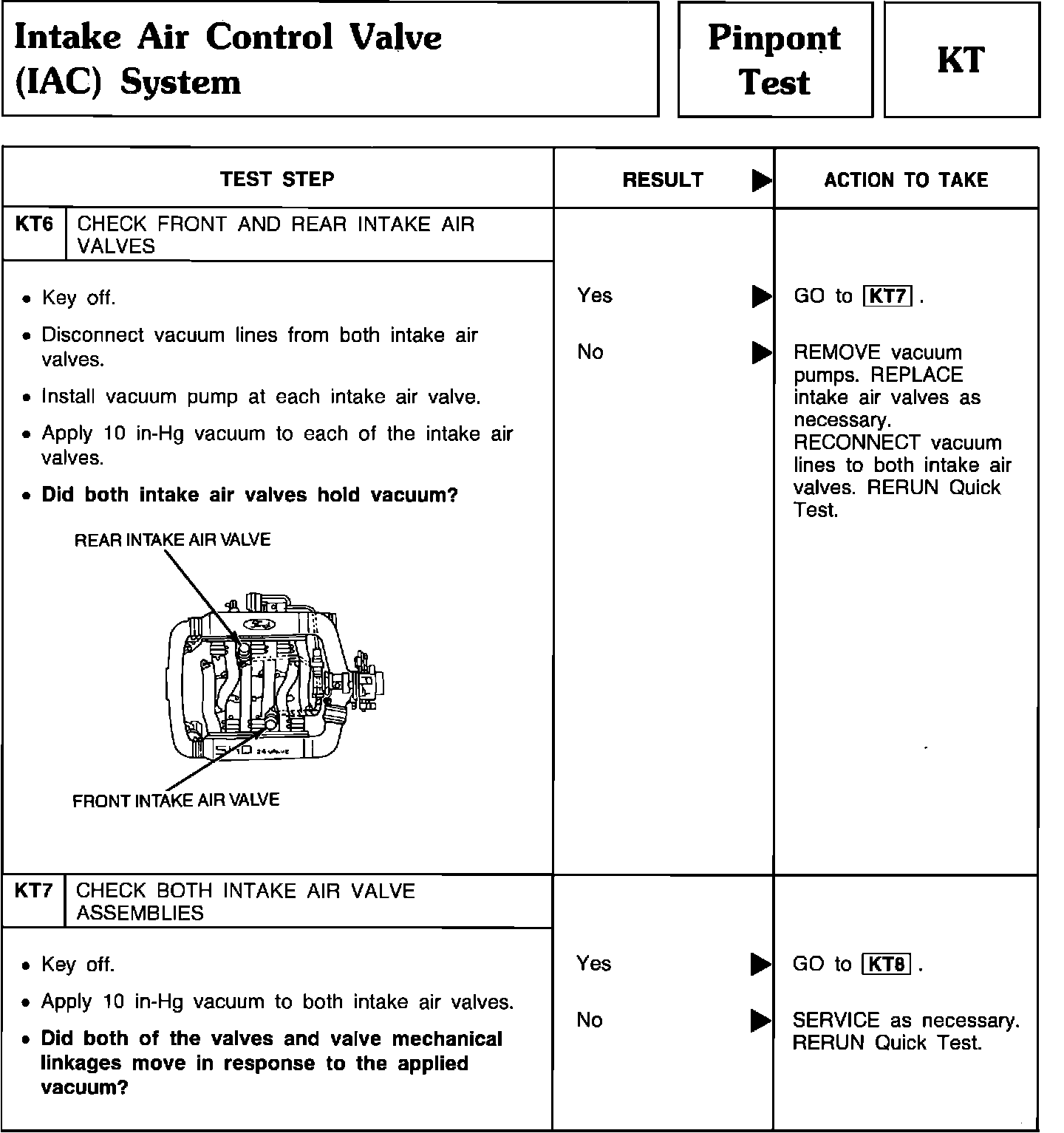

Pinpoint Test KT6 Thru KT7 - Intake Air Control Valve System:
