Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> KT - Intake Air Control Valve (IAC) System >> KT3 - KT5

KT3 - KT5

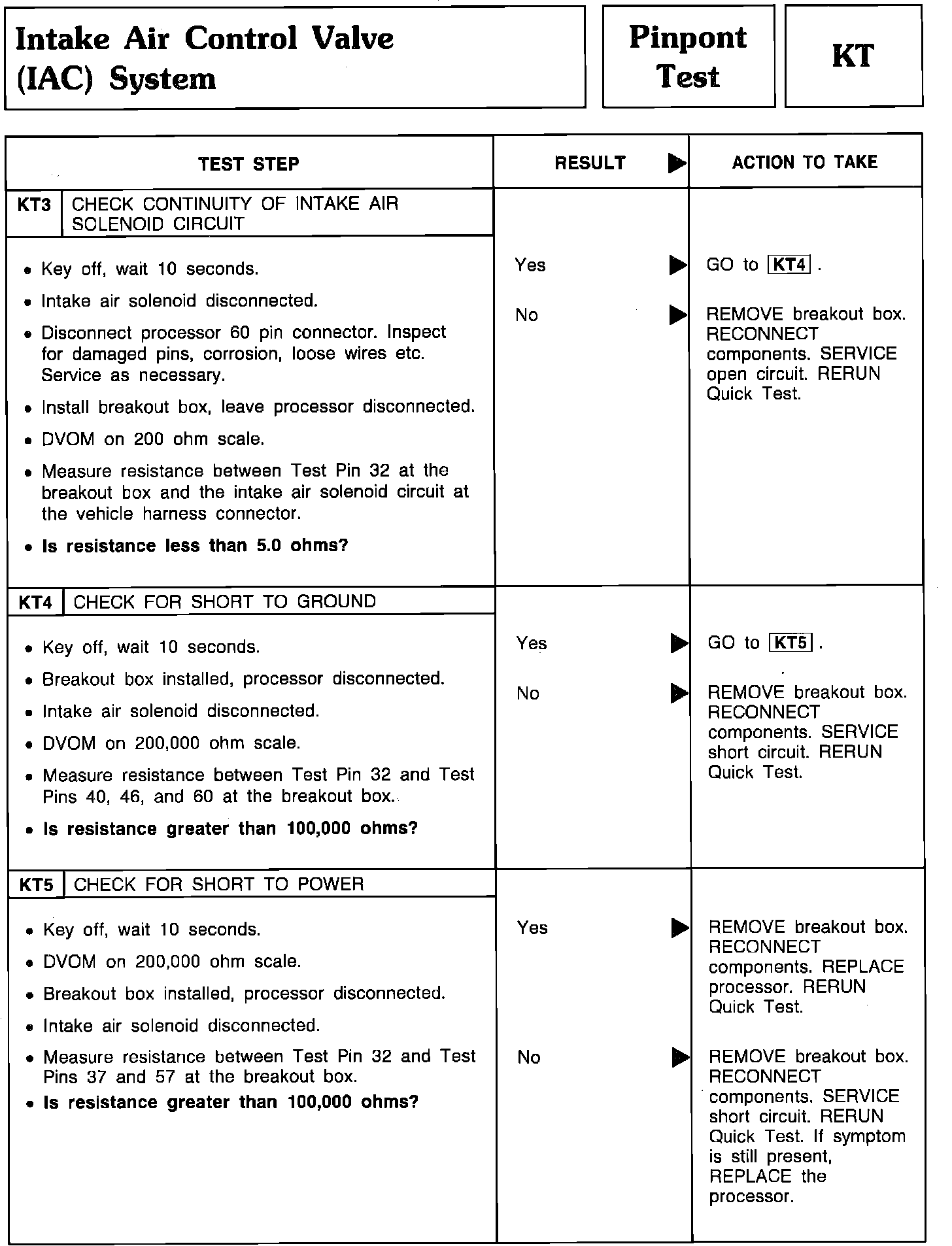

Pinpoint Test KT3 Thru KT5 - Intake Air Control Valve System:
