Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DR - Cylinder Identification (CID) Sensor >> DR1

DR1

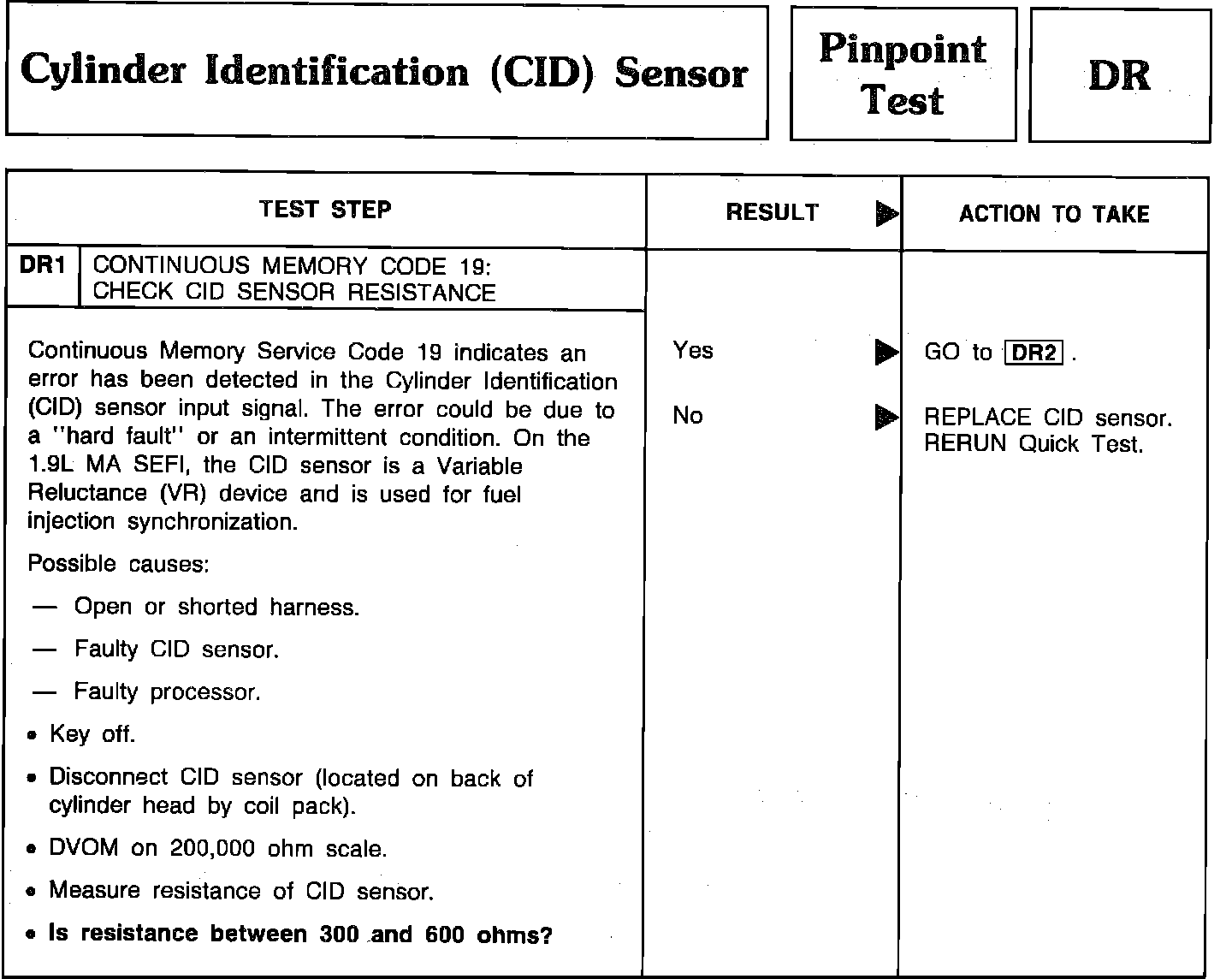

Pinpoint Test DR1 - Cylinder Identification (CID) Sensor:
