Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DN - EGR Valve Position Sensor/EGR Vacuum Regulator Solenoid >> DN - Testing Schematic

DN - Testing Schematic

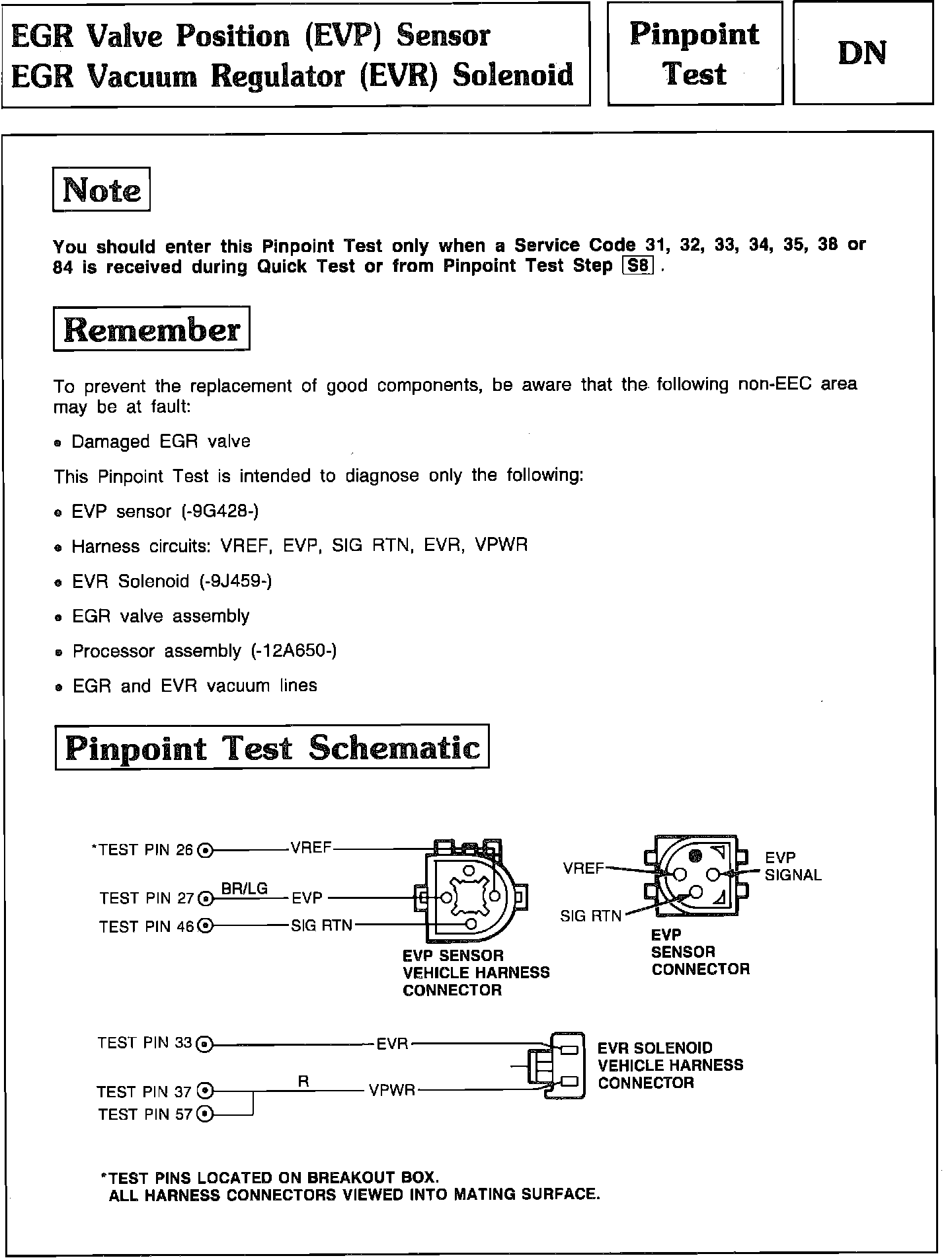

Pinpoint Test DN - EGR Valve Position Sensor (EVP)/EGR Valve Regulator (EVR):
