Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DD - EGR Valve Position Sensor (EVP) Control/Vent (EGRC/EGRV) >> DD90 - DD91

DD90 - DD91

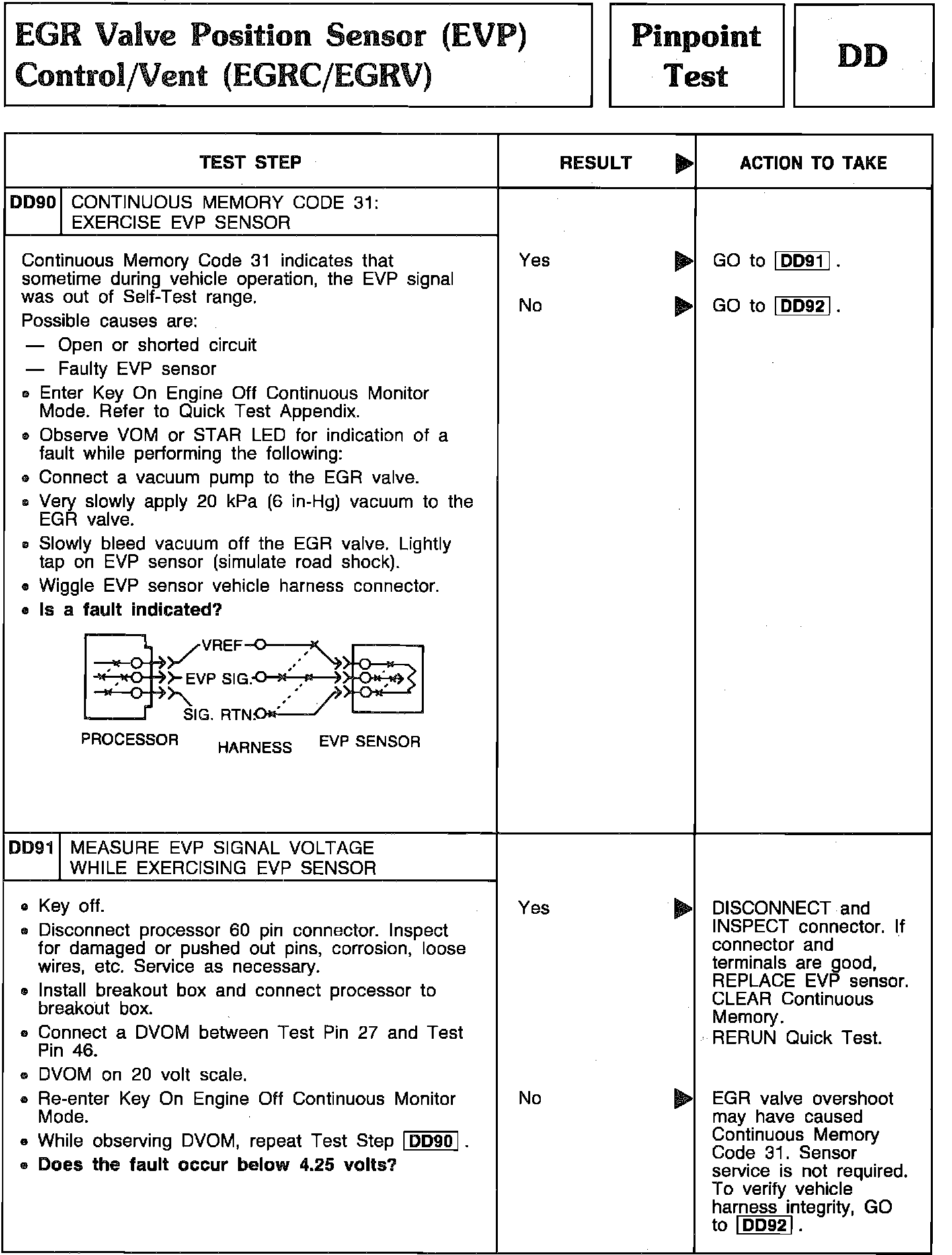

Pinpoint Test DD90 & DD91 - EGR Valve Position Sensor (EVP) Control/Vent (EGRC/EGRV):
