Home >> Mercury >> 1990 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DA - Temperature Sensor Test ACT, ECT and VAT >> DA4 - DA10

DA4 - DA10

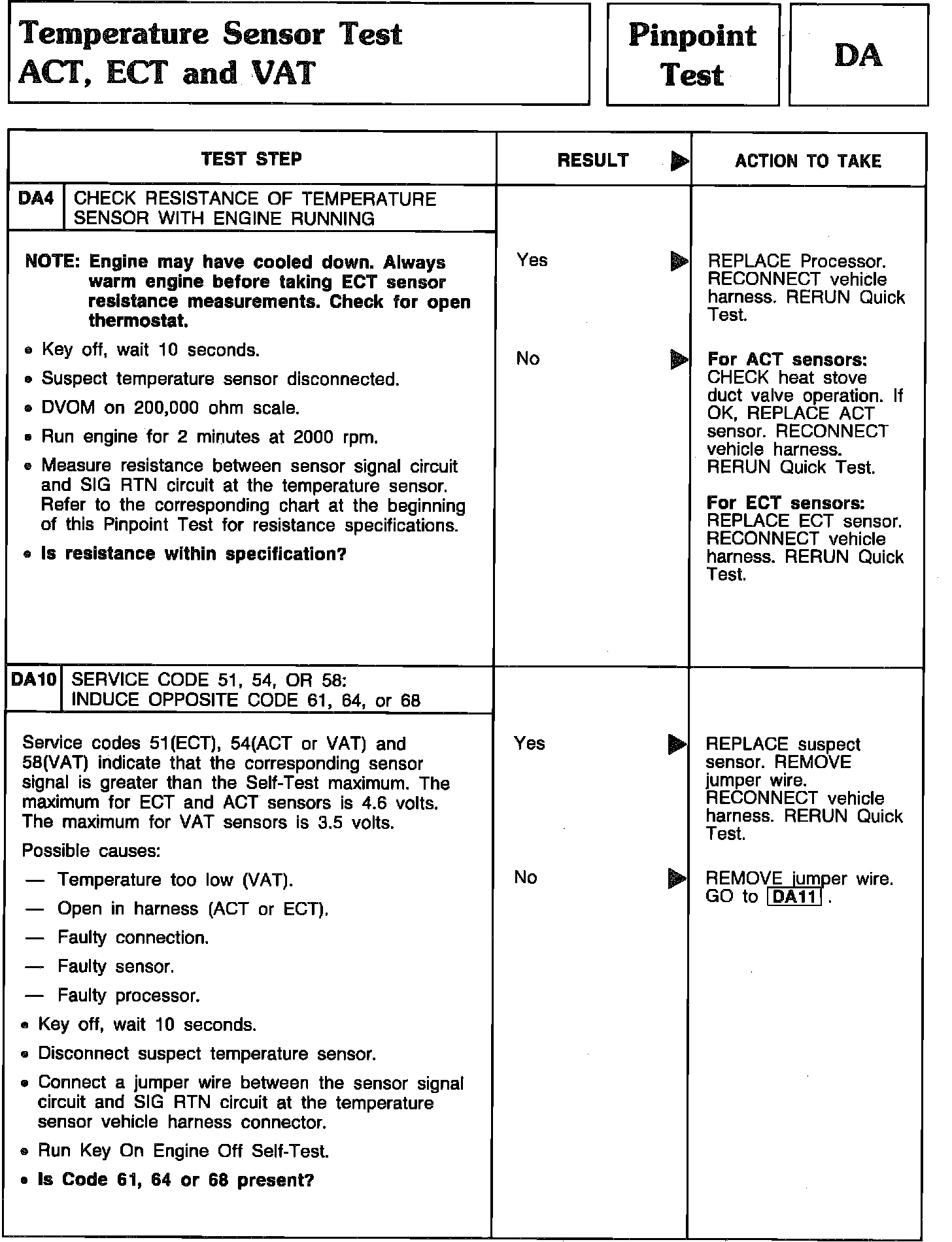

Pinpoint Test DA4 & DA10 - Temperature Sensor Test ACT, ECT and VAT:
