Pressure Feedback EGR Transducer - Service

89ford36

PRESSURE FEEDBACK ELECTRONIC EGR TRANSDUCER - 3.0L - SERVICE REPLACEMENT PROCEDURE - CALIFORNIA ONLY

Article No. 89-25-9

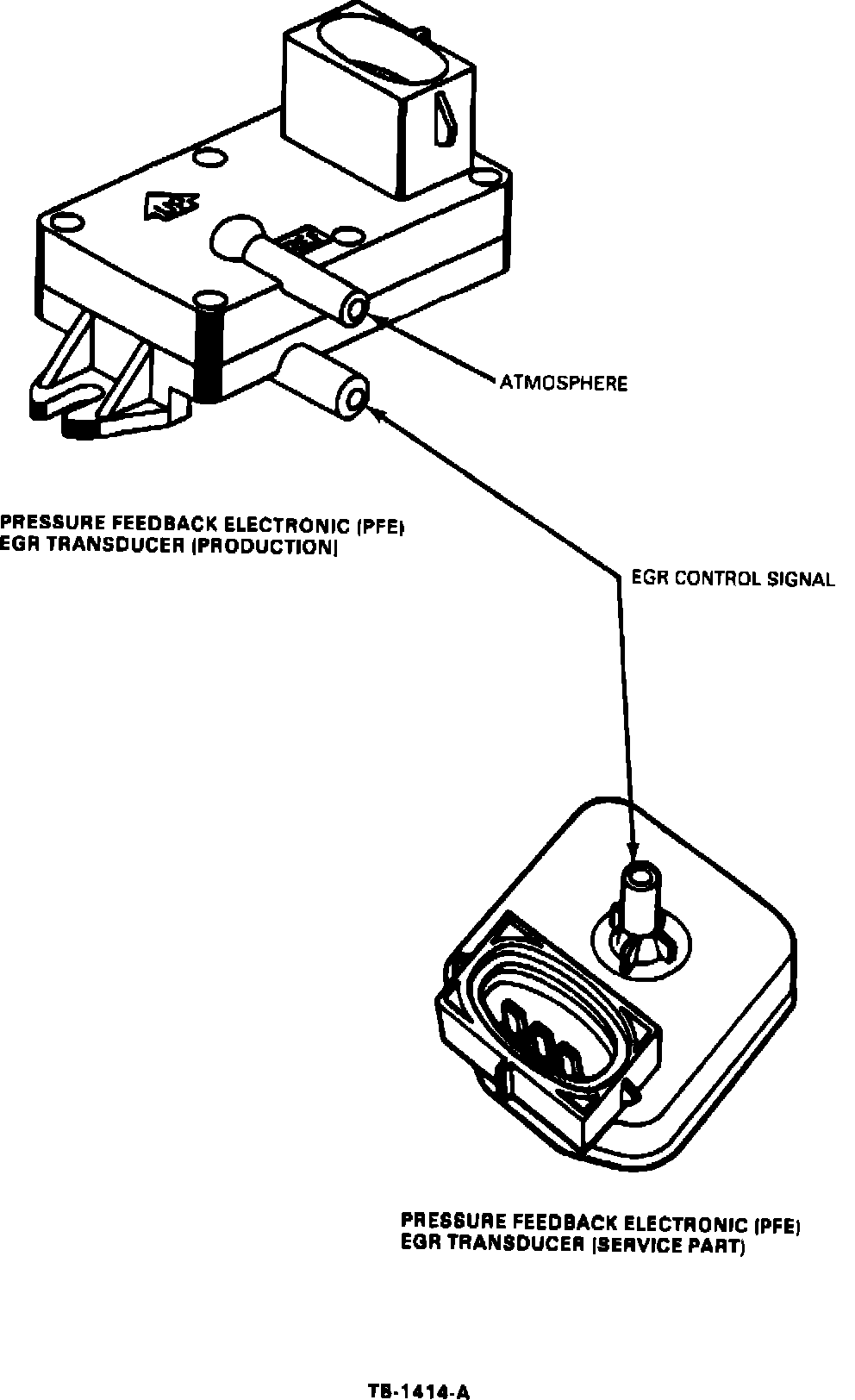

Figure 1:

LINCOLN-MERCURY: 1990 SABLE


ISSUE: The pressure feedback electronic (PFE) EGR transducer used on California cars is different than the service replacement transducer. The original production transducer has two connection ports with the outer (smaller) connector exposed to the atmosphere, Figure 1. The service replacement sensor has only one connection port.

ACTION: Install a new service PFE EGR transducer if service is required. Refer to Figure 1 for correct connection locations.

PART NUMBER PART NAME CLASS

E6AZ-9J460-A PFE EGR Transducer Sensor B
E6AZ-9J432-A PFE EGR Transducer Bracket C
E83Z-9P761-B PFE EGR Transducer Hose C

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 680000
